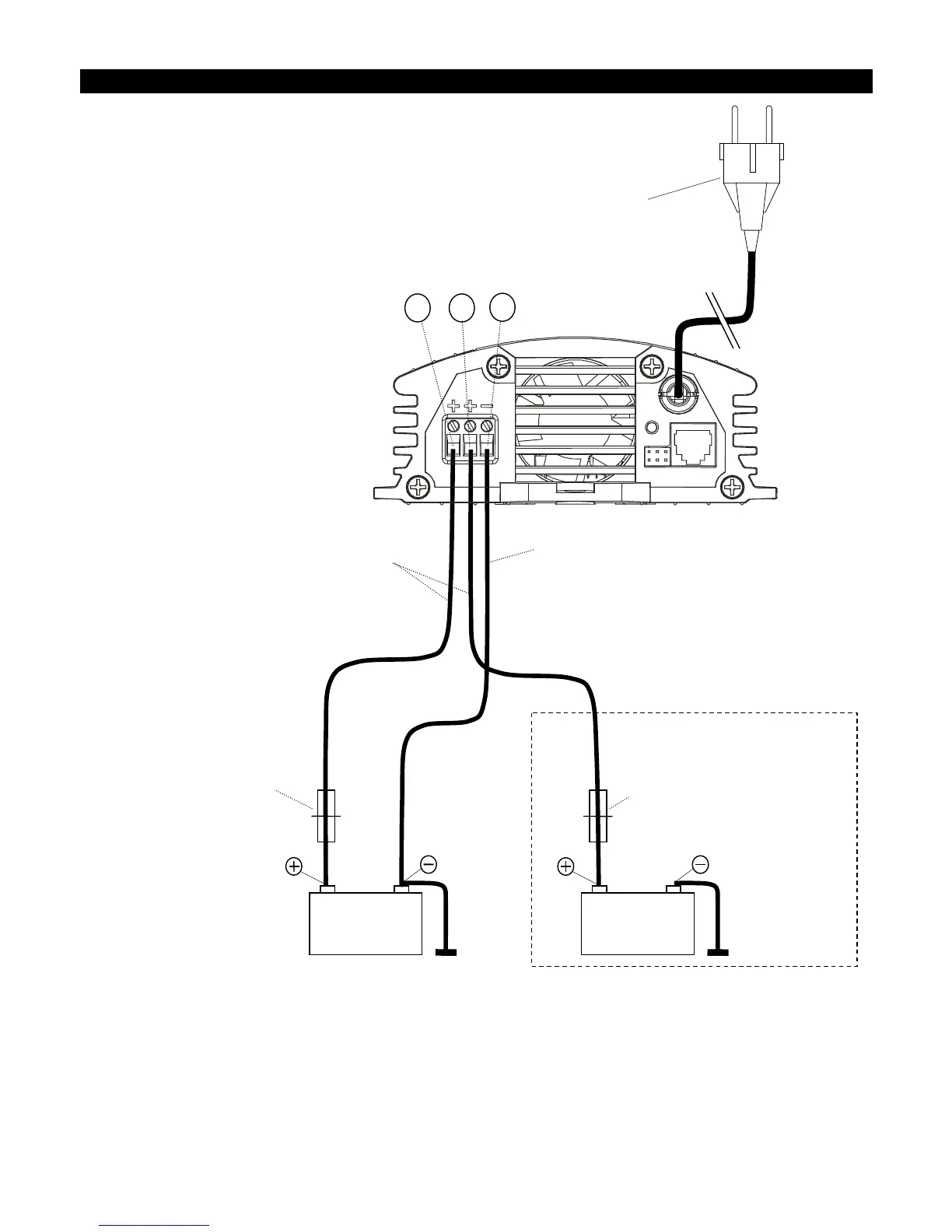

INSTALLATION CHARGEMASTER 12/15-2
Fuse + Fuse holder
Do not place the fuses before the entire installation is completed
Black wire NEG (–)
Option
Fuse + Fuse holder
BAT 1
12V
BAT 2
12V
Mains supply (230 VAC - 50/60Hz
)
Red wires POS (+)
Figure 2
8
7
6
