Mastervolt MASS COMBI ULTRA 12/3000-150

Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual
19
5.8 Installation overview

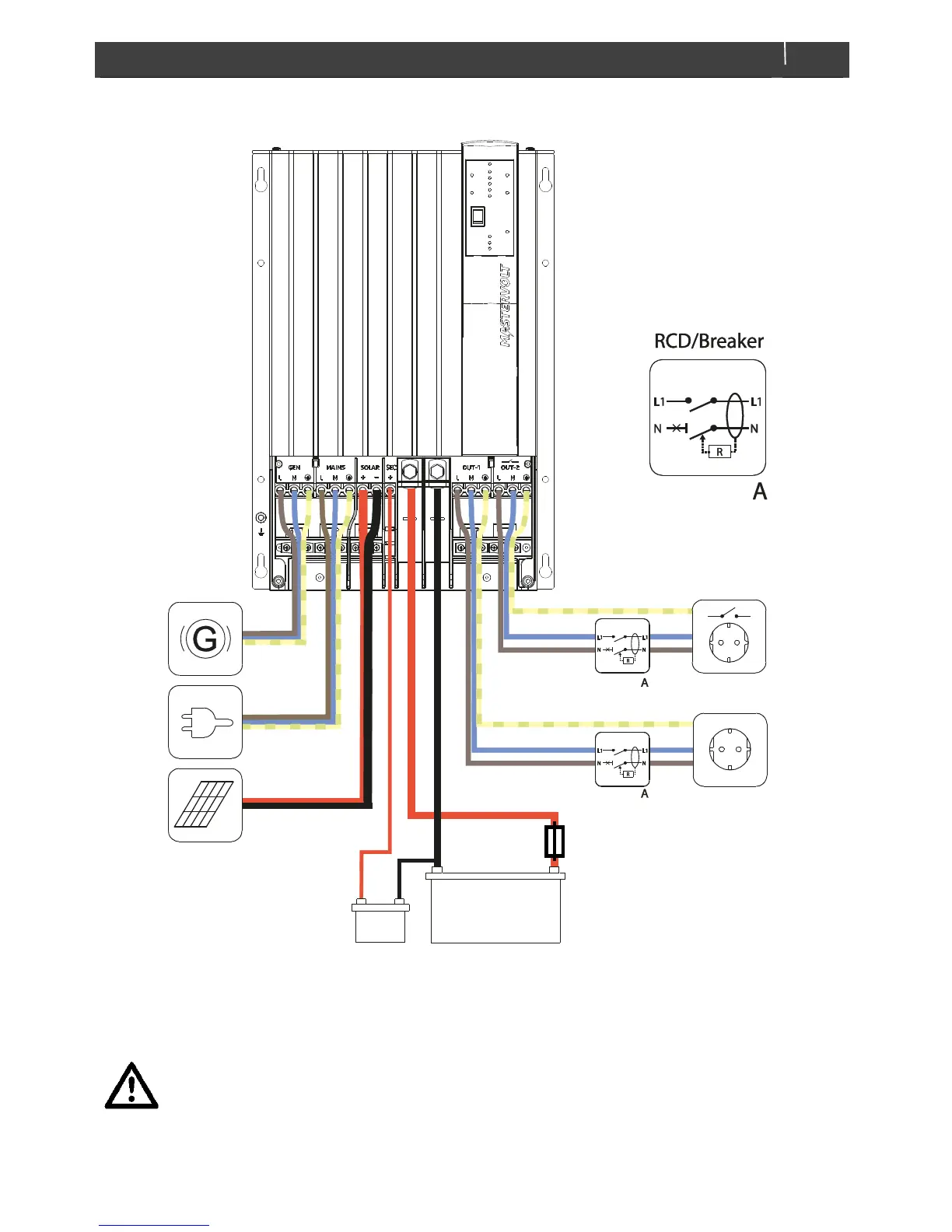

Figure 5-4: Installation overview for one Mass Combi (stand-alone operation)
CAUTION!
Ensure correct polarities, cross sections and fuses for all wiring. An RCD according to local regulations must be
connected to output-1 and 2.
* Models 12/3000-150 and 24/3500-100 only
*
