5 SETTINGS
The MasterShunt 500 can be monitored from a display like the Touch 10 (in a CZone network) or the EasyView 5 (in a
MasterBus network). Some settings can only be adjusted from a laptop/notebook or PC connected to the MasterShunt 500 via
a USB Interface.
5.1 About MasterBus
MasterBus is a CAN based, data network for communication between Mastervolt devices. The main connection to communi-
cate with each MasterBus interface is MasterAdjust. MasterAdjust software is available as free to download software on the
Mastervolt website: www.mastervolt.com. This tool runs on a Windows PC/notebook. Another option is to use a control panel
such as the EasyView 5.
When the MasterShunt 500 is connected to MasterBus, open MasterAdjust. The MasterShunt 500 will be recognized by the
MasterBus network automatically. The following sections use the screens as shown in MasterAdjust.
At first start up, MasterAdjust will guide you through the following settings:
Setting
Default
Range

Select the language of
MasterAdjust.
English
English, Nederlands,
Deutsch, Français,
Castellano, Italiano, Norsk,
Svenska, Suomi, Dansk.

Set the battery capacity to enable
the MasterShunt 500 to calculate
the state of charge.
Value from
First Setup
30-10000Ah

Four different battery types can be
selected. The spiral battery
belongs to the AGM batteries.
Value from
First setup
Flooded, Gel, AGM, MLI.

Nominal battery voltage, set at
first set up.
Value from
First setup
12V ,24V, 48V

Use this option for reversing input
and output, when you installed the
load at the left of the MasterShunt
500.
Off
Off, On

Use this option for parallel or
single device configuration.
"I + U only" monitors the current
and voltage only.
Single
device
Single device,
I + U only,
Parallel mode.
See also chapter 4.5

Check your settings and confirm by pressing Finish setup. Modification of the
settings afterwards requires a reset of the setup. See section 5.1.1.

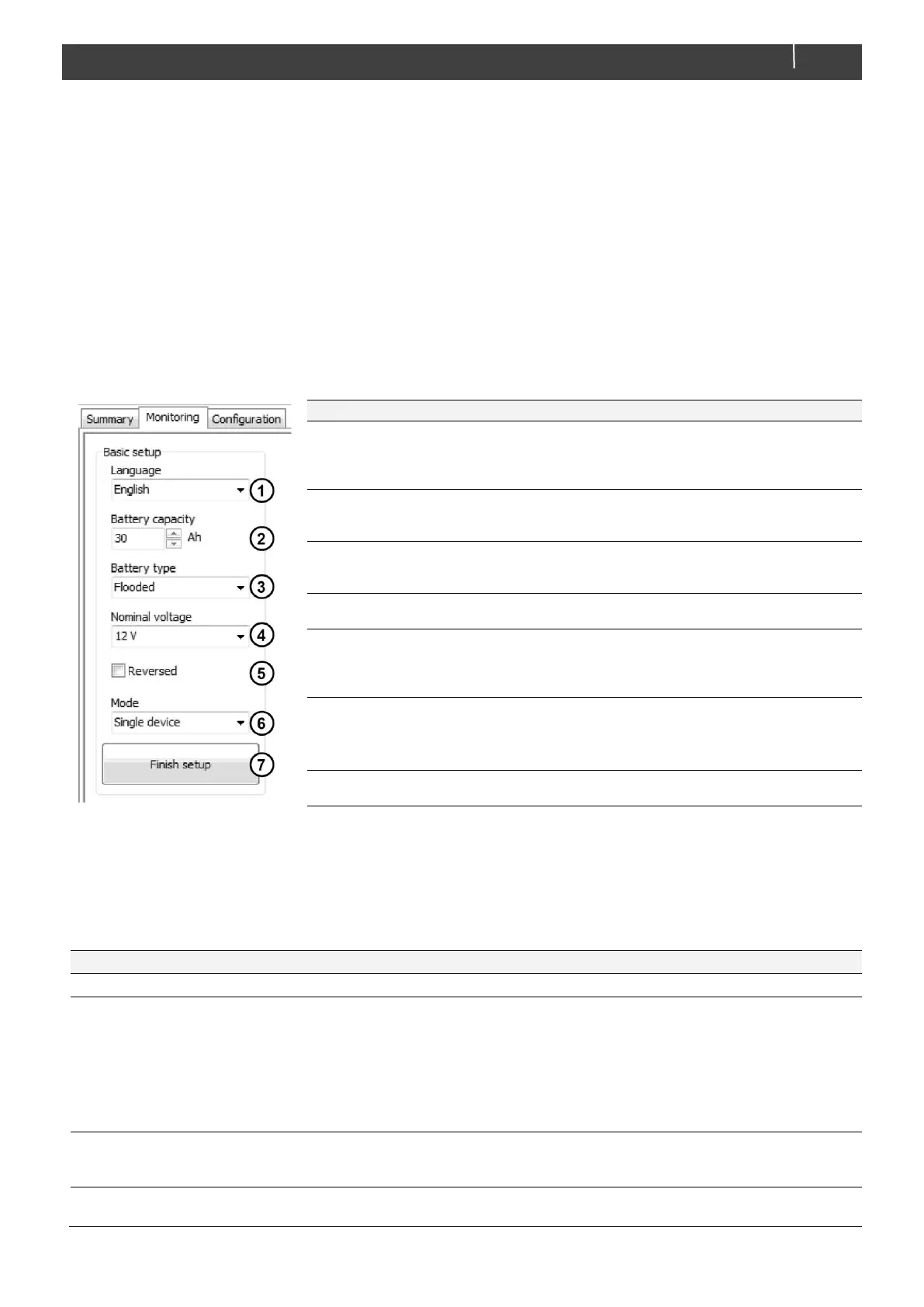

Figure 4: First start up
If you want to want to make changes afterwards, go to the Configuration tab make the required changes and press Reset
setup. See section 5.1.1.
5.1.1 Configuration
The following sections describe the settings as shown in MasterAdjust. With the CZone configuration tool, some of these
settings are found under Advanced Settings or under Alarm/Switch Settings.
Variable
Meaning
Factory setting
1)
Range
Notes
General
Language
Change the language used in
MasterAdjust.
English
English,
Nederlands,
Deutsch,
Français,
Castellano,
Italiano, Norsk,
Svenska, Suomi,
Dansk.
MasterBus
(MB) only
Name
Name of the battery bank..
MasterShunt 500
Any maximum
12 character
name.
Year
Set the MasterShunt 500 clock
year.
2000
2000-2135
MB only
