MasterShunt 500 – User and Installation manual
Step 4. Remove the two bolts.
Step 5. Take out the busbar. Mind possible hot parts!

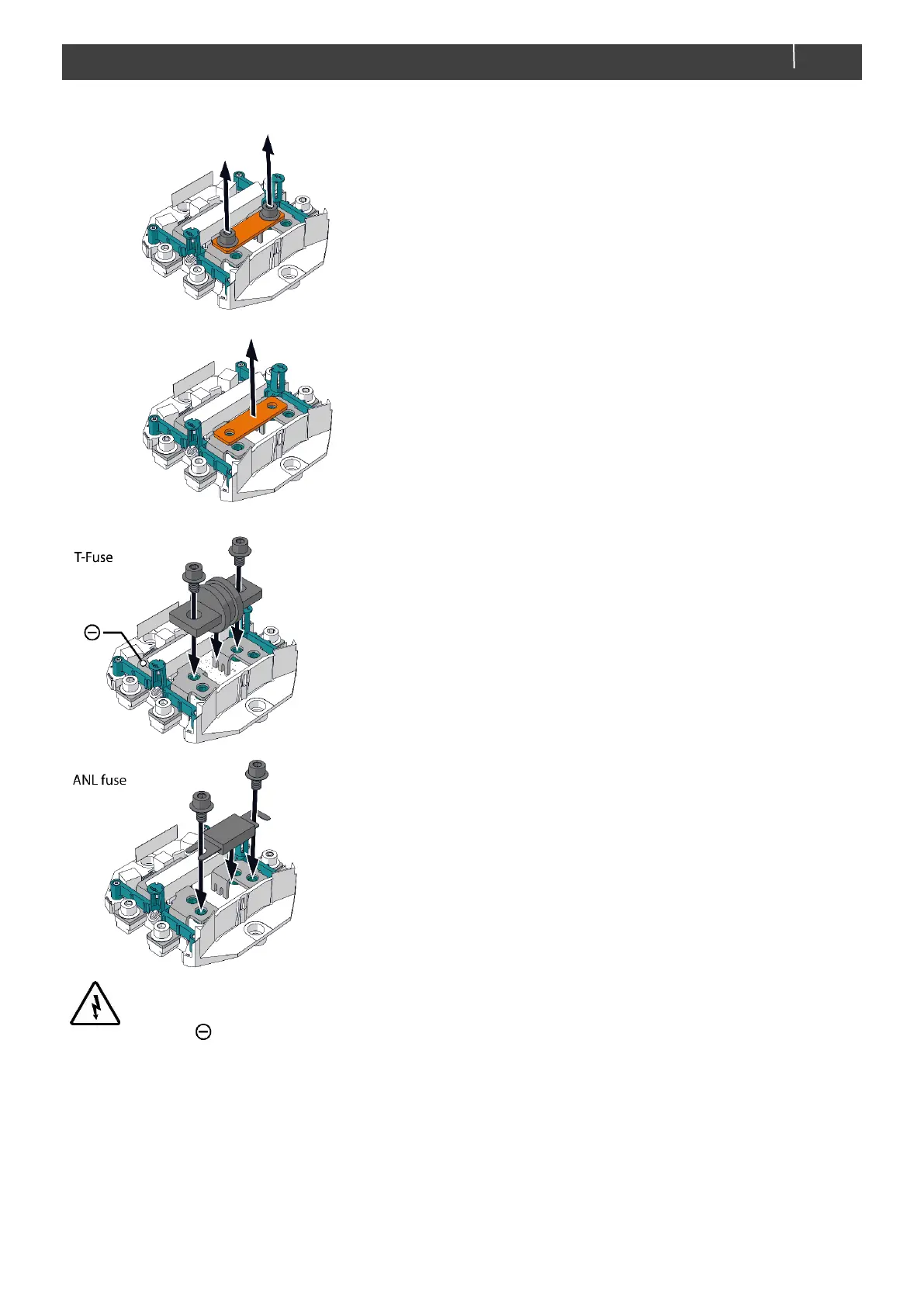

Step 6. Place a class T-fuse or an ANL fuse and fasten with the two removed bolts from step 4 (torque 15-20 Nm).
WARNING
When installing the T-fuse make sure it does not make any contact with the negative pole inside the MasterShunt
500, see in the drawing.
Step 7. Replace and lock the casing.
Step 8. Reconnect the battery pole.
Step 9. Store the removed busbar close to the MasterShunt 500 for future service purposes.
