BEFORE YOU START
12 October 2011 / Sunmaster XS4300-3200-2000 / EN

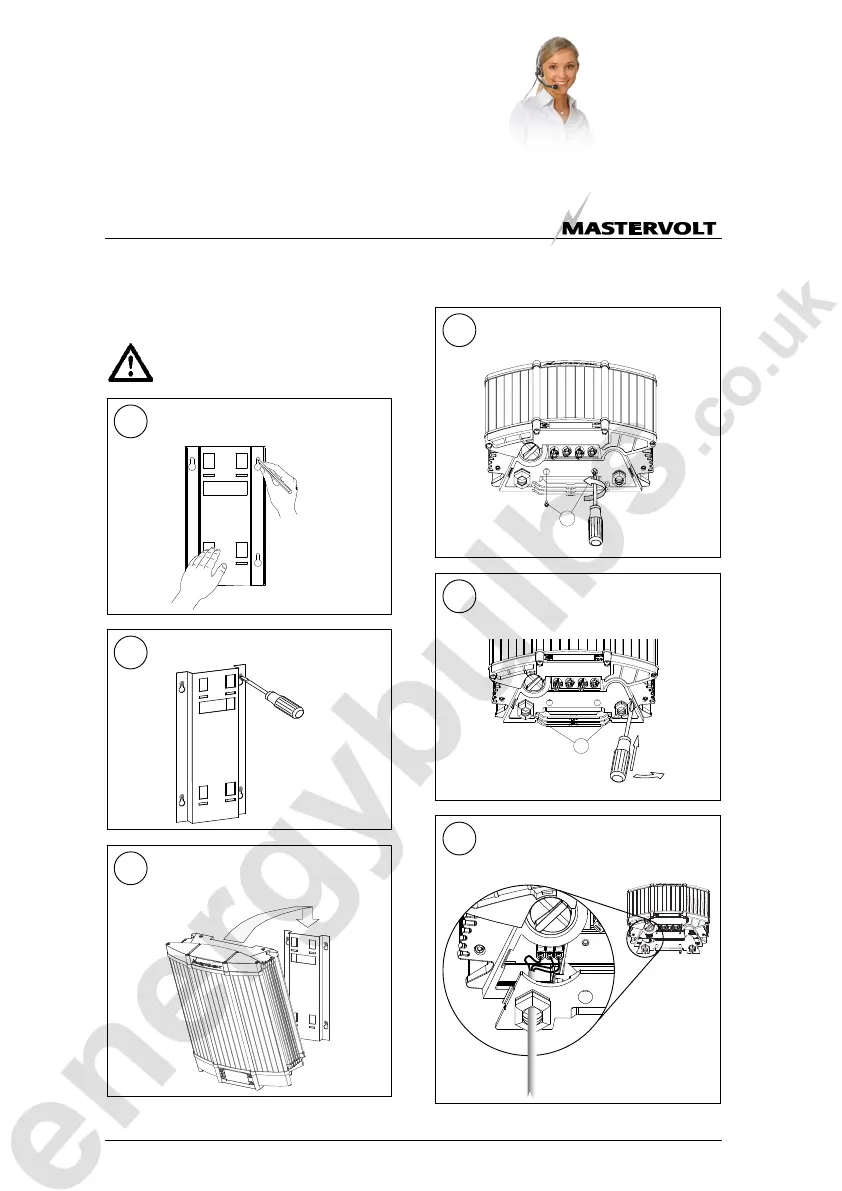

4 INSTALLATION
4.1 INSTALLATION STEP BY STEP
CAUTION!
Read chapters 2 and 3 prior to installation.
Figure 4-1
Figure 4-2
Figure 4-3
Figure 4-4
Figure 4-5
Figure 4-6
5
Insert a flat blade screw driver in the
indicated slots (b). Then remove the bottom
plate of the Sunmaster.
�
6
Feed the AC wiring through the left hand
cable glad of the bottom plate and connect
the wiring to the screw terminals.
4
Loosen the two hexagonal screws (a) at the
bottom side of the cabinet.
�
3
Place the Sunmaster over the mounting
bracket and then move it downwards until it
is locked by the mounting bracket.
2
Fix the mounting bracket to the wall.
1
Mark the position of the four mounting spots
by using the mounting bracket.
