INSTALLATION
14 October 2011 / Sunmaster XS4300-3200-2000 / EN

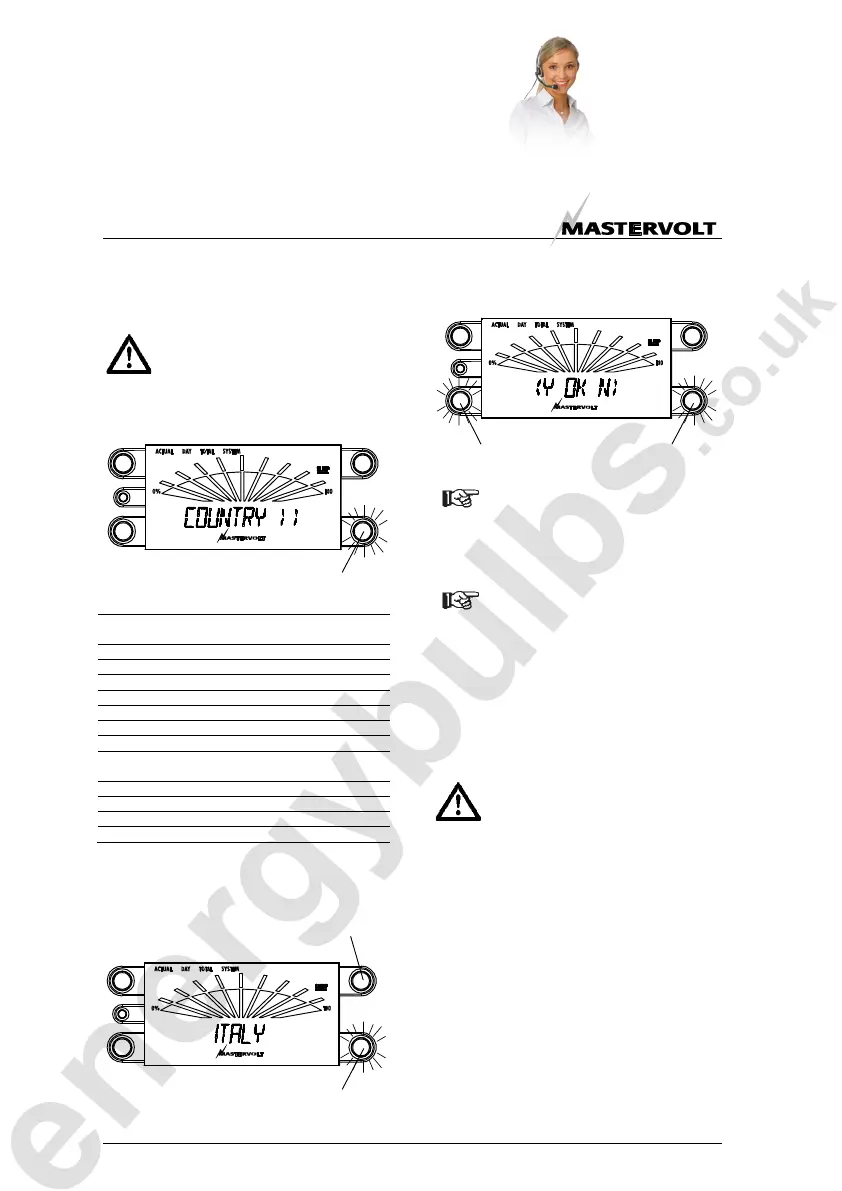

4.3.2 Country code selection
Follow the steps below to configure the Sunmaster in
accordance with the local regulations for grid connection
(example: Italy).
CAUTION!
NEVER connect the Sunmaster to a utility grid
other than selected.
1 After commissioning the following message is
displayed.
2 Select the applicable country code from the table.
Country code Norm Use Allowed in
GERMANY 1P,
limited to 4.600 W
ENS Germany, Austria, Belgium
GERMANY 3P ENS Germany, Austria, Belgium
SPAIN QNS Spain
ITALY ENS Italy
UK QNS United Kingdom
FRANCE ENS France
AUSTRALIA QNS Australia
GREECE QNS Greece
HOLLAND QNS Netherlands, rest of
Europe
USA 240V QNS USA (Split Phase 240V)
USA 208V QNS USA (ThreePhase 208V)
KOREA QNS South Korea
TAIWAN QNS Taiwan
3 Press S4 to scroll through the country codes.
4 If the correct country code is shown, press S2 to
select
5 Confirm your selection by pressing S3 (or cancel by
pressing S4).
If a wrong country code was entered, you can
start the procedure over again by pressing S2
and S4 simultaneously during 3 seconds.
6 Now the Sunmaster switches on. See chapter 0 for
operation instructions.
If you selected GERMANY 3P, the three
inverters switch on/ off together and only
when the three are MasterBus connected.
See section 4.1, reference (7) for MasterBus
connection of three inverters. In 3 phase
configuration, the 3-PH block function is
important, see section 5.3.5 and 5.3.8.
4.4 DE-COMMISSIONING
If it is necessary to de-commission the Sunmaster, follow
the instructions in order of succession as described below:
CAUTION!
Follow below mentioned instructions in order
of succession as described.
1 Cut off the grid voltage by switching off AC distribution
switch in the meter cupboard.
2 If such is applied, move the DC switch to the OFF-
position.
3 Disconnect the MultiContact connectors from the
Sunmaster.
4 Remove the bottom plate of the Sunmaster and
disconnect the AC wiring.
Now the Sunmaster can be demounted in a safe way.
Press S4 to cancel
the selection
S3
S4
Press S3 to confirm
the selection
Press S2 to select the
displayed country code
Press S4 to scroll through
the country codes
S1 S2
S3
S4
Press S4 to scroll through
the countr
codes
S1 S2
S3
S4
