ITLAY SELF TEST
EN / Sunmaster XS4300-3200-2000 / October 2011 25
9 ITALY SELF TEST
GENERAL
The Italy Self Test is meant to check the upper
and lower limits of the AC voltage and AC
frequency at which the inverter will disconnect
from the grid.
To enter the Italy self test, select the
“System/ Model” menu in the display.
See figure 9-1.
If the model is ITALY, press the lower two
buttons for 3 seconds. The screen should stay
in the “Model” mode. You will enter the Italy
test menu.
The text ITALY TEST will be blinking, press the
lower right button to confirm.
First the Uac High Off limit is shown.
During the self test, four tests are done in this
sequence:
UH (high off limit AC voltage);
UL (low off limit AC voltage);
FH (high off limit AC frequency);
FL (low off limit AC frequency).
After each test the user has to confirm the test
result before the inverter starts the reclosure
count down and reconnects to the grid.
After the last test and after reconnecting to the
grid the inverter will continue in normal
operation.
The test accuracy is better than 1V/ 0.1Hz if
grid voltage and frequency are stable.

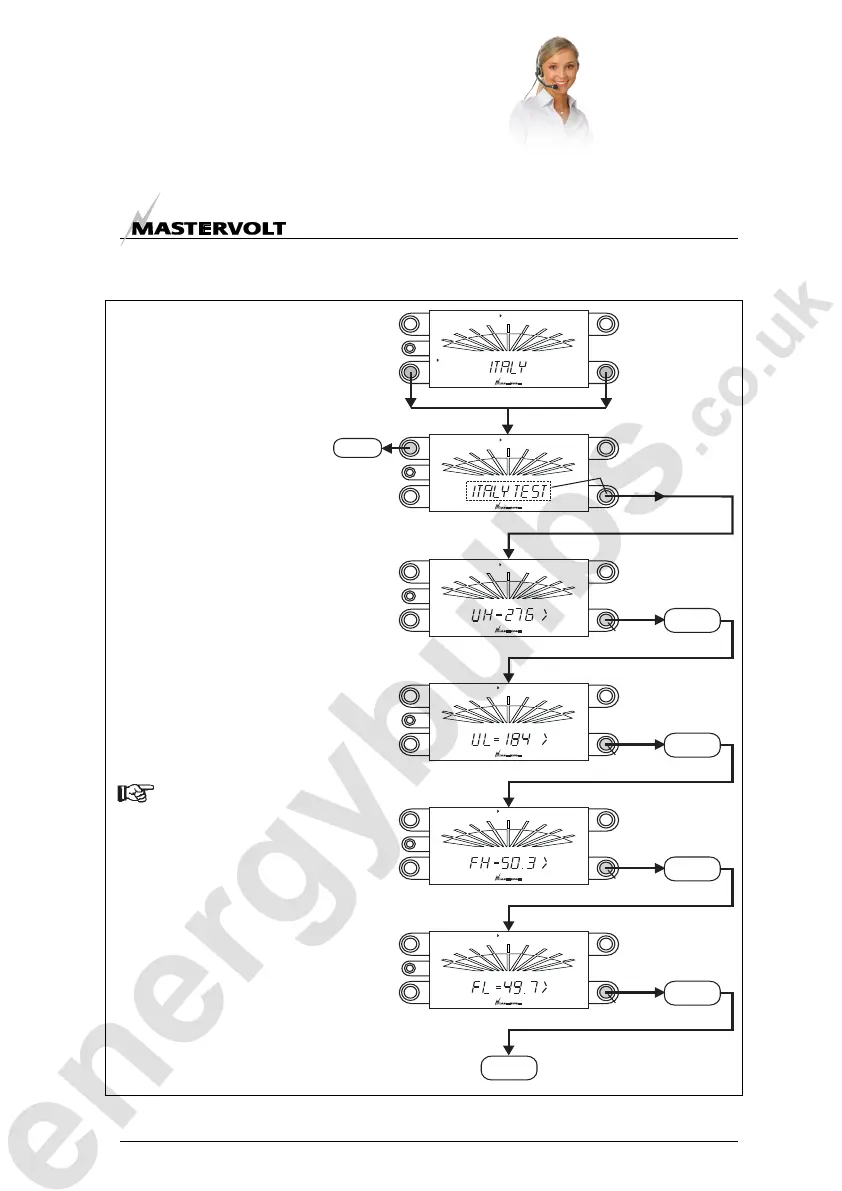

Figure 9-1
The standard reclosure time of
300 sec has been reduced to
10 sec to shorten the testing
time. This is not an error.
ACTUAL DAY TOTAL SYSTEM
M
ASTERVOLT
Menu
M
ASTERVOLT
UH-test
Automatically after test
ACTUAL DAY TOTAL SYSTEM
M
ASTERVOLT
Automatically after test
Blinking
Blinking
Menu
Automatically after test
Menu
Menu
UL-test
ACTUAL DAY TOTAL SYSTEM
M
ASTERVOLT
Automatically after test
Menu
FH-test
ACTUAL DAY TOTAL SYSTEM
M
ASTERVOLT
Automatically after test
Menu
FL-test
Actual
Actual
Blinking
Blinking
Blinking
ACTUAL DAY TOTAL SYSTEM
ACTUAL DAY TOTAL SYSTEM
M
ASTERVOLT
Press simultaneously,
wait for 3 seconds
MODEL
SERIAL
FIRMW
ERROR
