ITALY SELF TEST
26 October 2011 / Sunmaster XS4300-3200-2000 / EN
UL-TEST

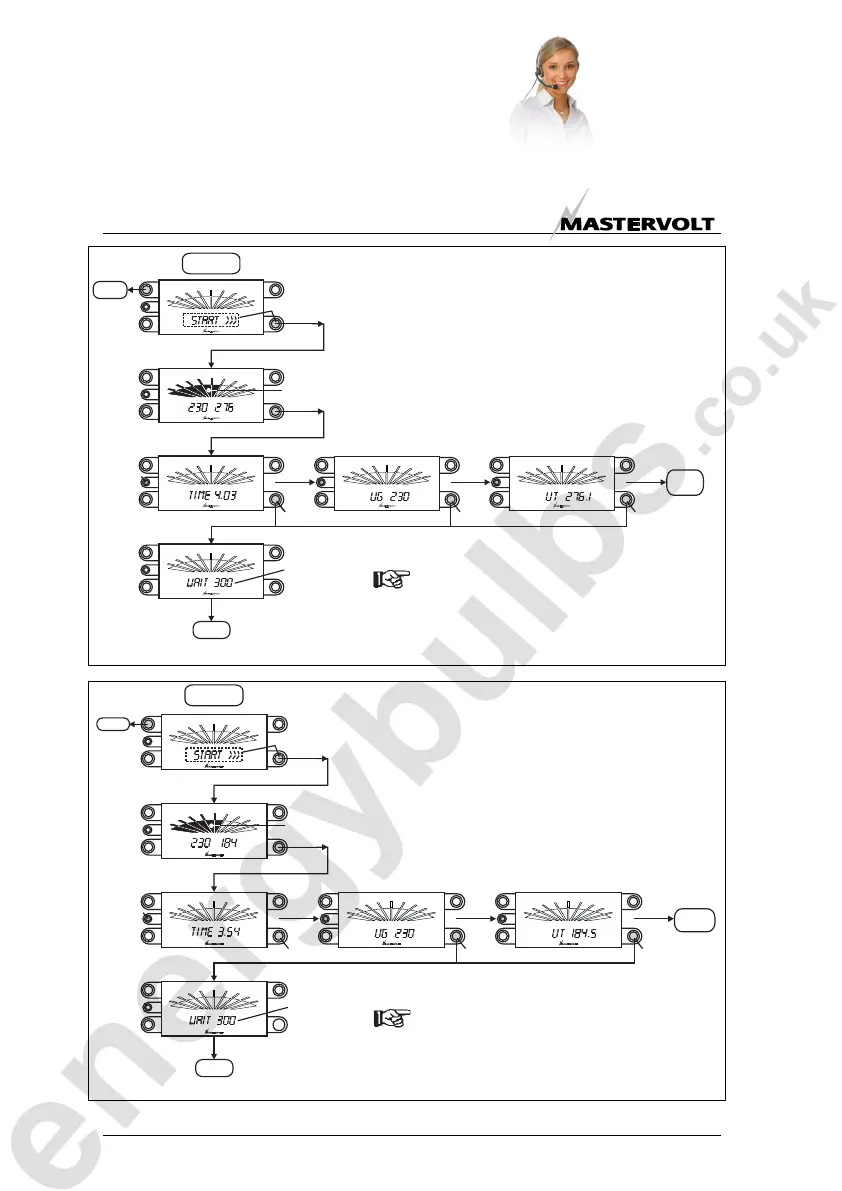

See figure 9-3. Start the UL test by pressing “Start”.
The screen now shows:
• (above) TIME = test time indication, 1 segment = 1 second;
• (left) UG = the measured grid voltage during the test;
• (right) UL = the low voltage limit of the inverter.
During the test UL is increased by 11.5V/sec until it reaches UG.
The inverter will disconnect then and the red error LED illuminates.
Figure 9-3
After the UL-test, TIME, UG and UT show in the screen successively.
UT is the measured value of UL.
Write down TIME, UG and UT. After confirming, all values
disappear from the display to start the next test.
Calculation by hand: UT = UG – (TIME * 11.5).
Example: if UG = 230V and TIME = 4.00 s,
UT = 230 -
(
4.00*11.5
)
= 184V.
ACTUAL DAY TOTAL SYSTEM
M ASTERVOLT
Menu
ACTUAL DAY TOTAL SYSTEM
M ASTERVOLT
Automatically after test
ACTUAL DAY TOTAL SYSTEM
M ASTERVOLT
Blinking
Confirm
ACTUAL DAY TOTAL SYSTEM
M ASTERVOLT
FH-test
Actual
Red on
ACTUAL DAY TOTAL SYSTEM
M ASTERVOLT
ACTUAL DAY TOTAL SYSTEM
M ASTERVOLT
2 sec2 sec 2 sec
To time
display
Reclosure
time
UL-test
Test time
indication
Blinking Blinking Blinking
Confirm
UH-TEST
See figure 9-2. Start the UH test by pressing “Start”.
The screen now shows:
• (above) TIME = test time indication, 1 segment = 1 second;
• (left) UG = the measured grid voltage during the test;
• (right) UH = the high voltage limit of the inverter.
During the test the high voltage limit is decreased (rate -11.5V/sec)
until it reaches UG. The inverter will disconnect then and the red error
LED illuminates.
Figure 9-2
After the UH-test, TIME, UG and UT show in the screen successively.
UT is the measured value of UH.
Write down TIME, UG and UT. After confirming, all values
disappear from the display to start the next test.
Calculation by hand: UT = UG + (TIME * 11.5).
Example: if UG = 230V and TIME = 4.00 s,
U
T = 2
30
+
(
4.
00
*11.
5)
= 27
6
V.
ACTUAL DAY TOTAL SYSTEM
Menu
ACTUAL DAY TOTAL SYSTEM
Automatically after test
ACTUAL DAY TOTAL SYSTEM
Blinking
Confirm
ACTUAL DAY TOTAL SYSTEM
UL-test
Actual
UH-test
Red on
ACTUAL DAY TOTAL SYSTEM ACTUAL DAY TOTAL SYSTEM
2 sec2 sec 2 sec
Blinking
To time
display
Test time
indication
Reclosure
time
Confirm
Blinking Blinking Blinking
