ITLAY SELF TEST
EN / Sunmaster XS4300-3200-2000 / October 2011 27
FL-TEST
See figure 9-5. Start the FL test by pressing “Start”.
The screen now shows:
• (above) TIME = test time indication, 1 segment = 1 second;
• (left) FG = the measured grid frequency during the test;
• (right) FL = the low frequency limit of the inverter.
During the test FL is increased by 0.05 Hz/sec until it reaches FG.
The inverter will disconnect then and the red error LED illuminates.
After the FL-test, TIME, FG and FT show in the screen successively.
FT is the measured value of FL.
Write down TIME, FG and FT. After confirming, all values
disappear from the display to start the next test.
Calculation by hand: FT = FG – (TIME * 0.05).
Example: if FG = 50.00 Hz and TIME = 6.00 s,
the result is 50.00 -
(
6.00*0.05
)
= 49.70 Hz.

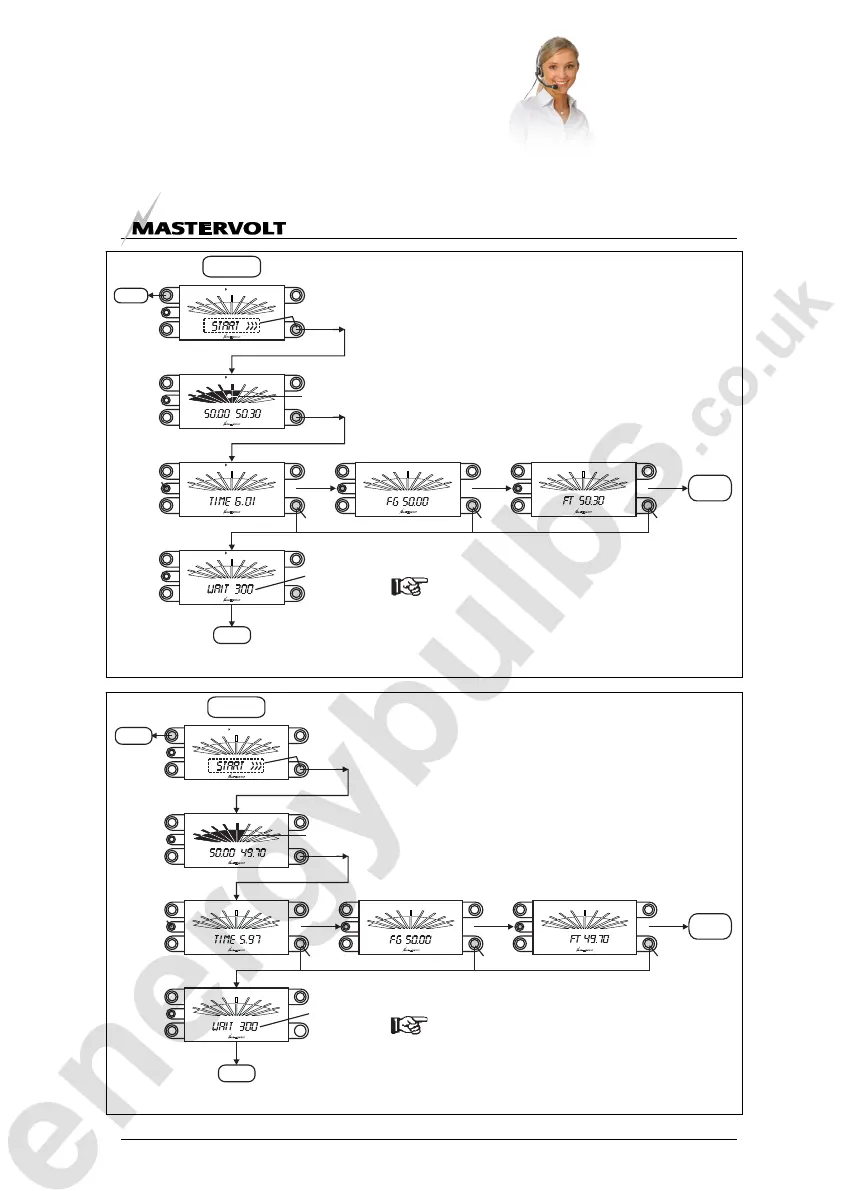

Figure 9-5
ACTUAL DAY TOTAL SYSTEM
Menu
ACTUAL DAY TOTAL SYSTEM
Automatically after test
ACTUAL DAY TOTAL SYSTEM
Blinking
Confirm
ACTUAL DAY TOTAL SYSTEM
Actual
Actual
Red on
ACTUAL DAY TOTAL SYSTEM ACTUAL DAY TOTAL SYSTEM
2 sec
2 sec
2 sec
Reclosure
time
FL-test
Test time
indication
Blinking Blinking Blinking
To Time
Display
Confirm
FH-TEST
See figure 9-4. Start the FH test by pressing “Start”.
The screen now shows:
• (above) TIME = test time indication, 1 segment = 1 second;
• (left) FG = the measured grid frequency during the test;
• (right) FH = the high frequency limit of the inverter.
During the test FH is decreased by a rate of -0.05 Hz/sec until it
reaches FG. The inverter will disconnect then and the red error LED
illuminates.
After the FH-test, TIME, FG and FT show in the screen successively.
FT is the measured value of FH.
Write down TIME, FG and FT. After confirming, all values
disappear from the display to start the next test.
Calculation by hand: FT = FG + (TIME * 0.05)
Example: if FG = 50.00 Hz and TIME = 6.00 s,
the result is 50.00 + (6.00*0.05) = 50.30 Hz.
Figure 9-4
ACTUAL DAY TOTAL SYSTEM
Menu
ACTUAL DAY TOTAL SYSTEM
Automatically after test
ACTUAL DAY TOTAL SYSTEM
Blinking
Confirm
ACTUAL DAY TOTAL SYSTEM
Actual
Red on
ACTUAL DAY TOTAL SYSTEM ACTUAL DAY TOTAL SYSTEM
2 sec2 sec 2 sec
To Time
Display
Reclosure
time
FH-test
FL-test
Test time
indication
Blinking Blinking Blinking
Confirm
