Mastervolt Whisper 12 Installation Manual

34 EN / MOBILE WHISPER 6/12-6/8/10/12/16 ULTRA / November 2004

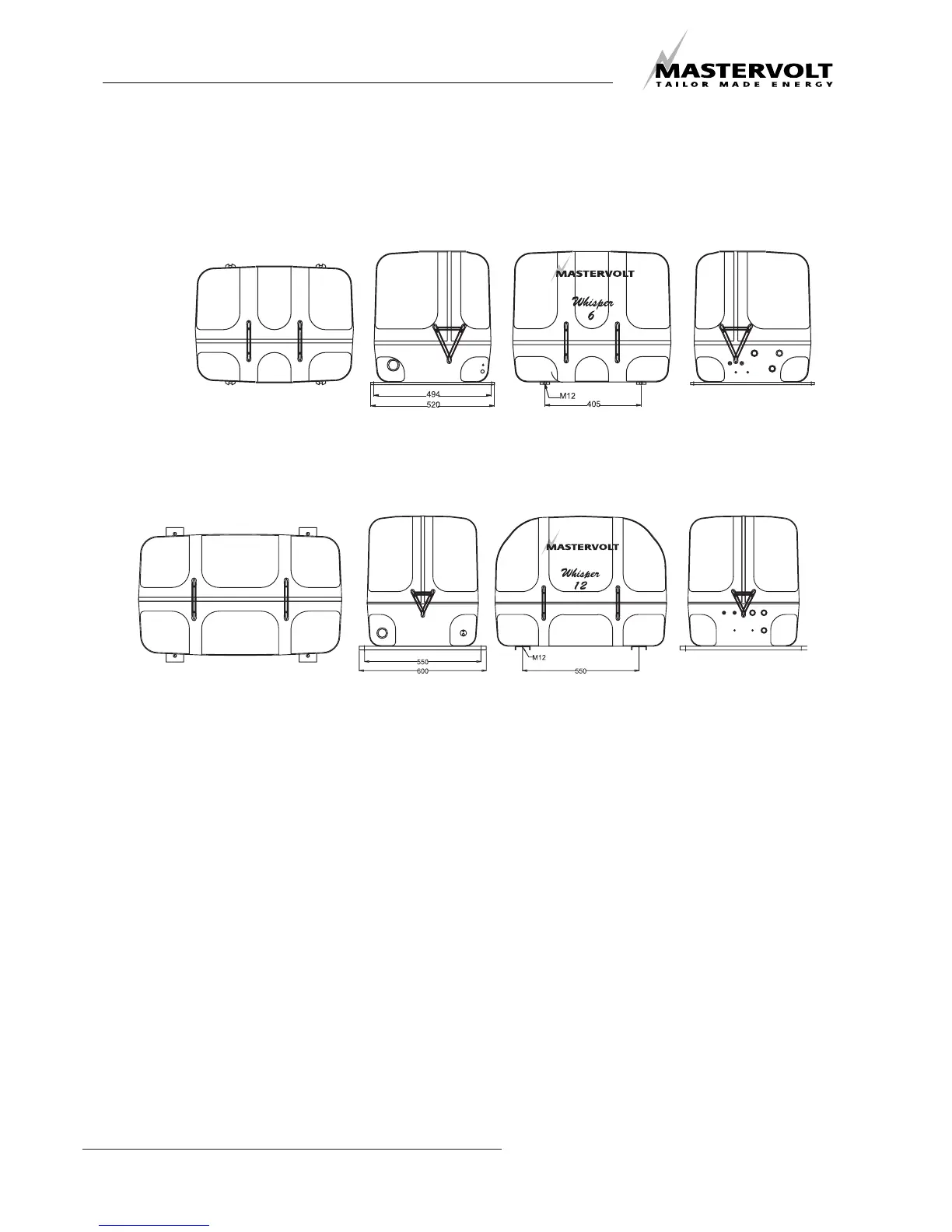

DIAGRAMS & DRAWINGS
WHISPER 6
topview
service side
CONNECTIONS WHISPER 6/6 ULTRA 12:
• exhaust Whisper 6: 1”
• exhaust Whisper 6 ULTRA 12 / 3000 RPM 1 1/2”
• fuel hose: 8 mm
• radiator alternator: 19 mm / 3/4”
• radiator engine Whisper 6/6 ULTRA: 25 mm / 1”
• radiator engine Whisper 12 / 3000 RPM 32 mm / 1 1/4”
• battery +: 25 mm
2
• battery -: 25 mm
2
• remote control: 15 mtr.
POWERCABLES Whisper 6/6 ULTRA
• Whisper 6/230V 3x4 mm
2
(5m. included)
• Whisper 6/6 ULTRA 230V 3x4mm
2
( 5m. included)
BOX DIMENSIONS WHISPER 6:
• length 660 mm
• width 495 mm
• height 550 mm
• weight Whisper 6 178 kg
4.6.2 Whisper 6-12/6 Ultra dimensions
POWERCABLES Whisper 12
• Whisper 12/230V 3x10 mm
2
(not included)
BOX DIMENSIONS WHISPER 12/6 ULTRA
• length 810 mm
• width 525 mm
• height 615 mm
• weight Whisper 12 210 kg
• weight Whisper 6 ULTRA 225 kg
Fig. 39.
WHISPER 12/6 ULTRA
topview service side
Fig. 40.
