US / WHISPER 15/20 ULTRA - Three Phase / October 2008 / Copyright © 2008 Mastervolt 13
1 Water level 3 Seacock
2 Water/exhaust separator 4 Waterlock

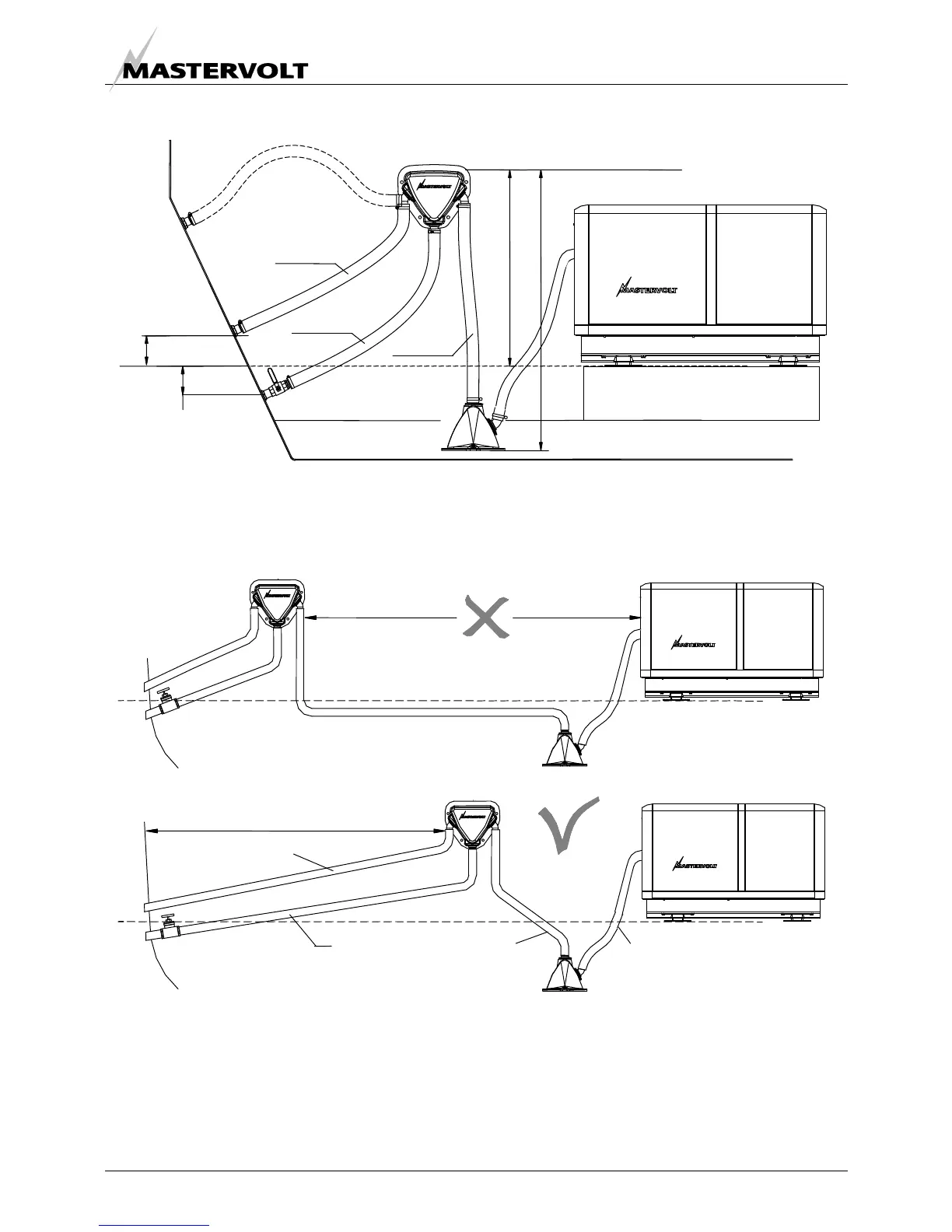

Figure 15: Super silent exhaust system
Figure 16: Only after the exhaust / water separator the exhaust hose may have a length of over 7.5 meter
MAX. 10CM (4")
MIN. 60CM (24")
MAX. 150CM (60")
MIN. 3CM (1,2")
1
2
3
4
Ø 2”
51 mm
Ø 1
5
/
8
”
40 mm
Ø 2”
51 mm
B
A
A
B
WRONG!
OK!
Max. length A - B = 3 m (10 ft.)
Maximum length: 10 m (30ft)
Ø 2” (51 mm)
Ø 2” (51 mm)
Ø 2” (51 mm)
Ø 1
5
/
8
” (40 mm)
