3.8 DIMENSIONS WHISPER 15 ULTRA THREE PHASE

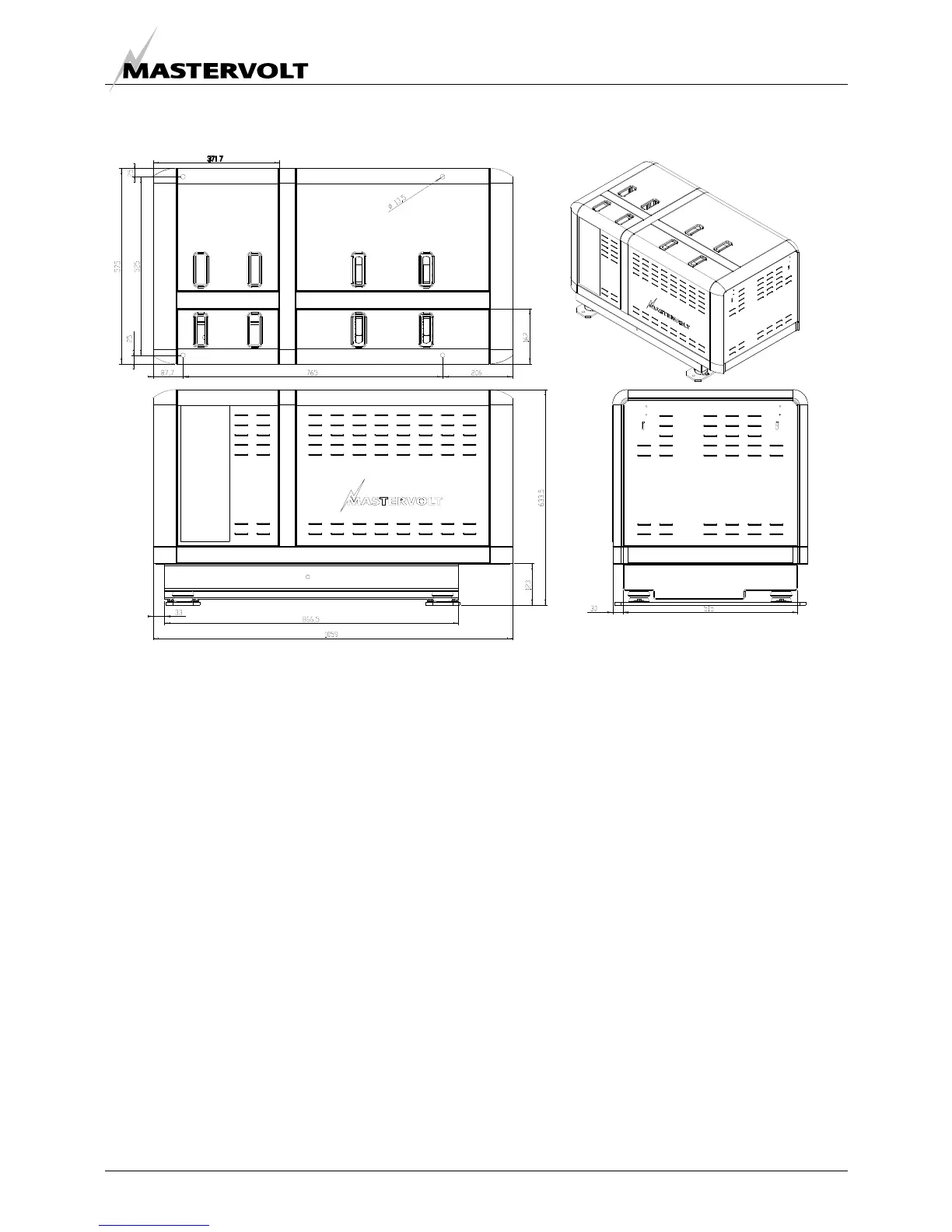

Fig. 36: Outer dimensions (mm) Whisper 15-Ultra Three Phase
CONNECTIONS WHISPER 15 Ultra Three Phase: BOX DIMENSIONS WHISPER 15 Ultra Three Phase
• exhaust: 2” (51 mm) • length 41.7”(1060 mm)
• fuel hose: 5/16” (8 mm) • width 22.6” (575 mm)
• sea water in: 3/4” (19 mm) • height 25.2” (640 mm)
• air vent connection: 3/4” (19 mm) • weight 838 lbs (380 kg)
• battery +: AWG-3 (25 mm2)
• battery -: AWG-3 (25 mm2)
POWERCABLES ISO 13297 annex A
• 5 x AWG9 (6 mm2) (not included)
REMOTE CONTROL:
• 45 ft (15 meter) 8 wire communication cable (included)
