DIAGRAMS & DRAWINGS
34 Copyright © 2008 Mastervolt / October 2008 / WHISPER 15/20 ULTRA - Three Phase / US

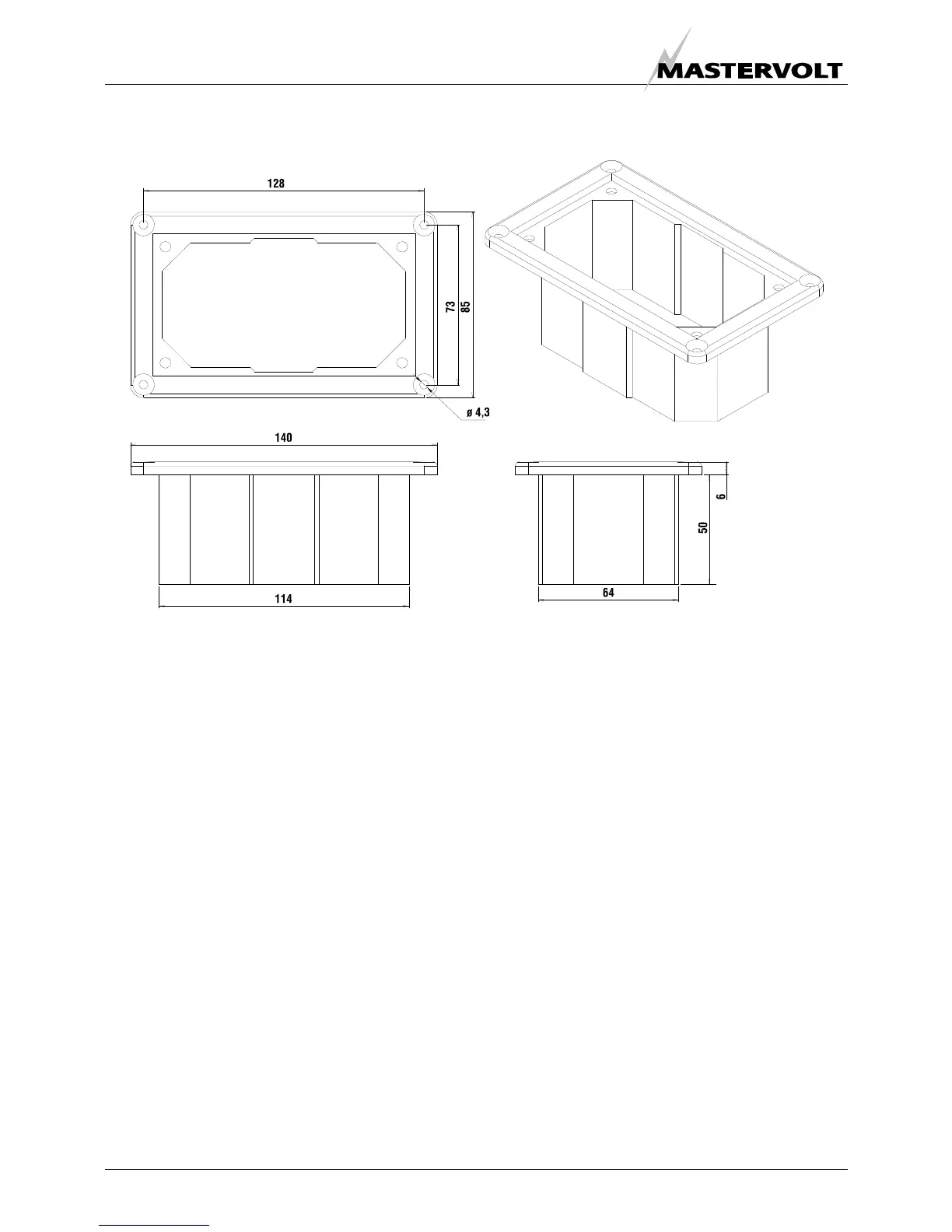

3.7 REMOTE CONTROL PANEL DRAWINGS
Fig. 35: Whisper remote panel
The remote panel comes in a carton that can be used as a template to drill the mounting hole
