2.5 INSTALLATION MATERIALS

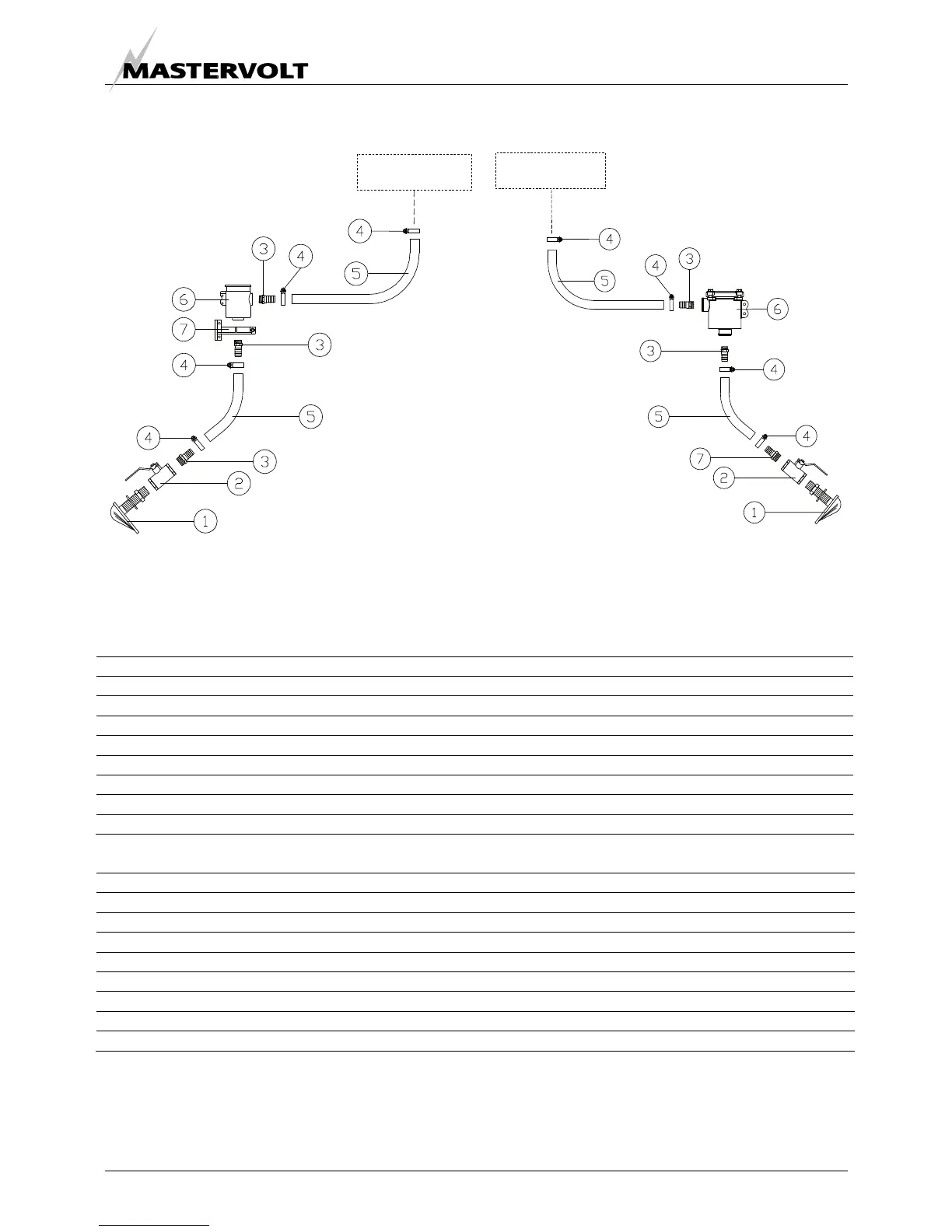

Figure 24: Installation materials Water inlet kit
WATER INLET KIT 3/4” (20 mm) for Whisper 15 Ultra Three Phase
pos qty article no description
1 1 50230052 Intake strainer 3/4"
2 1 50230042 Lever operated ball valve FF 3/4"
3 3 50221004 Male hose connection 3/4x20
4 4 50221502 Hose clamp stainless 22-30 mm
5 3m 50220056 Cool. water hose transp.spiral 20x28 mm
6 1 50230062 Nickel plated brass intake strainer 3/4"
7 1 50230067 Mouting bracket small waterstrainer 1158
TOTAL 50230211 WATER INLET KIT 20 mm
WATER INLET KIT 1” (25 mm) for Whisper 20 Ultra Three Phase
pos qty article no description
1 1 50230053 Intake strainer 1"
2 1 50230043 Lever operated ball valve FF 1"
3 2 50221008 Male hose connection 3/4x25
4 4 50221503 Hose clamp stainless 25-35 mm
5 3m 50220050 Cooling water hose transp.spiral 25x33mm
6 1 50230061 Nickel plated brass intake strainer 3/4"
7 1 50221010 Male hose connection 1"x25
TOTAL 50230221 WATER INLET KIT 25 mm
Generator
cooling water inlet
Generator
cooling water inlet
WATER INLET KIT 3/4” (20 mm)
for Whisper 15 Ultra Three Phase
WATER INLET KIT 1” (25 mm)
for Whisper 20 Ultra Three Phase
