Mastervolt WHISPER 15 ULTRA Installation Guide

INSTALLATION SPECIFICATIONS
22 Copyright © 2008 Mastervolt / October 2008 / WHISPER 15/20 ULTRA - Three Phase / US

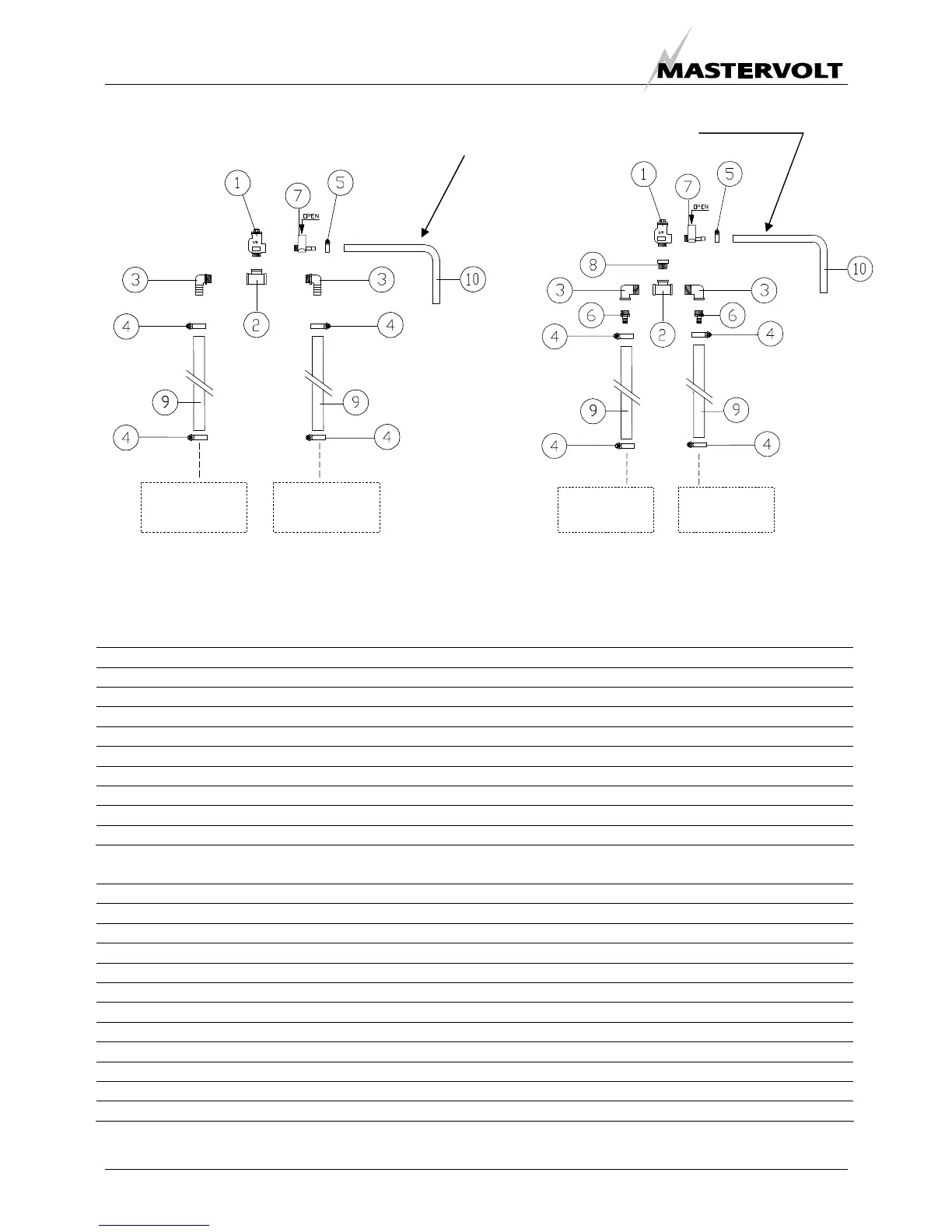

Figure 25: Installation materials Air vent kit
AIR VENT KIT 3/4” (20 mm) for Whisper 15 Ultra Three Phase
pos qty article no description
1 1 50230001 Syphon breaker valve
2 1 50221042 TEE fitting 1/2"
3 2 50221031 Bend male type / hose connection 1/2x20
4 4 50221502 Hose clamp stainless 22-30 mm
5 1 50221522 Hose clamp stainless 10-16
7 1 50230002 TEE fitting syphon breaker valve
9 3m 50220056 Cooling water hose transparant spiral 20x28 mm
10 1.5m 50220054 Cooling water hose transparant spiral 10x16mm
TOTAL 50230212 SYPHON BREAKER KIT 20 MM (3/4")
AIR VENT KIT 1” (25 mm) for Whisper 20 Ultra Three Phase
pos qty article no description
1 1 50230001 Syphon breaker valve
2 1 50221043 TEE fittings 3/4"
3 2 50221083 Elbow 90 degr male/female 3/4"
4 4 50221503 Hose clamp stainless 25-45 mm
5 1 50221522 Hose clamp stainless 10-16
6 50221008 Male hose connection 3/4x25
7 1 50230002 TEE fitting syphon breaker valve
8 1 50221102 Straight reducer male/female 3/4-1/2
9 3m 50220050 Cooling water hose transp.spiral 25x33mm
10 1.5m 50220054 Cooling water hose transparant spiral 20x28 mm
TOTAL 50230222 SYPHON BREAKER KIT 25 MM (1")
Generator
Bypass
cooling water out
Generator
Bypass
cooling water in
Hose drain should go downwards.
Water must flow out freely.
Generator
Bypass
cooling water out
Generator
Bypass
cooling water in
AIR VENT KIT 3/4” (20 mm)
for Whisper 15 Ultra Three Phase
AIR VENT KIT 1” (25 mm)
for Whisper 20 Ultra Three Phase
