Mastervolt WHISPER 15 ULTRA Installation Guide

INSTALLATION
US / WHISPER 15/20 ULTRA - Three Phase / October 2008 / Copyright © 2008 Mastervolt 5

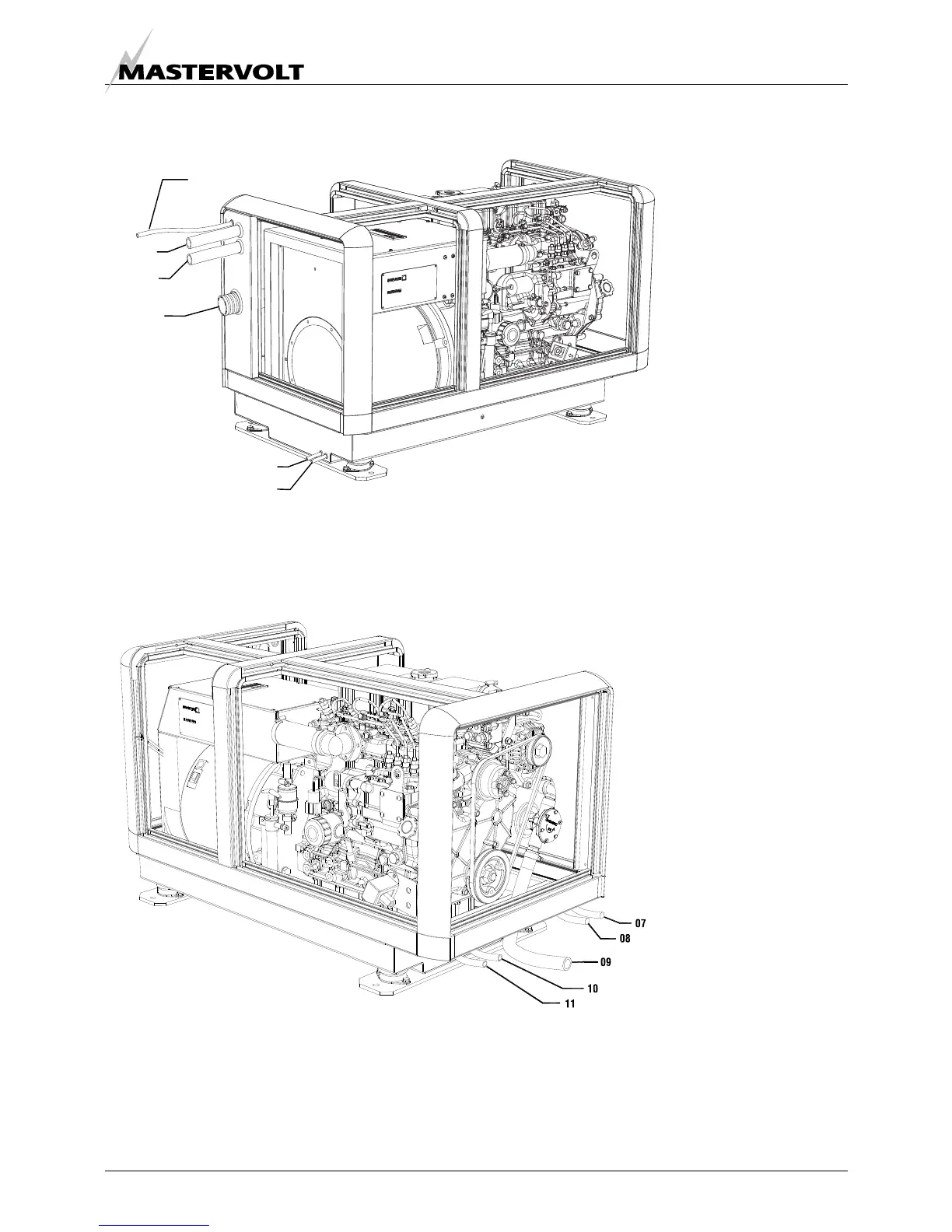

Fig. 3a Connections Whisper 15 Ultra Three Phase
Fig. 3b Connections Whisper 15 Ultra Three Phase
01
04
03
02
05
06
07 Battery – AWG 3
(25mm2)
08 Battery + AWG 3
(25mm2)
09 Raw water inlet Ø 3/4"
(Ø19mm)
10 Fuel in Ø5/16” (8 mm)
11 Fuel out Ø5/16” (8 mm)
01 Expansion tank Ø5/16” (8
mm)
02 Bypass cooling water out
Ø3/4" (Ø19mm)
03 Bypass cooling water in
Ø3/4" (Ø19mm)
04 Exhaust hose Ø 2” (51
mm)
05 Remote control
06 AC power output
