INSTALLATION SPECIFICATIONS
US / Whisper 7/9.5/15/20 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 27

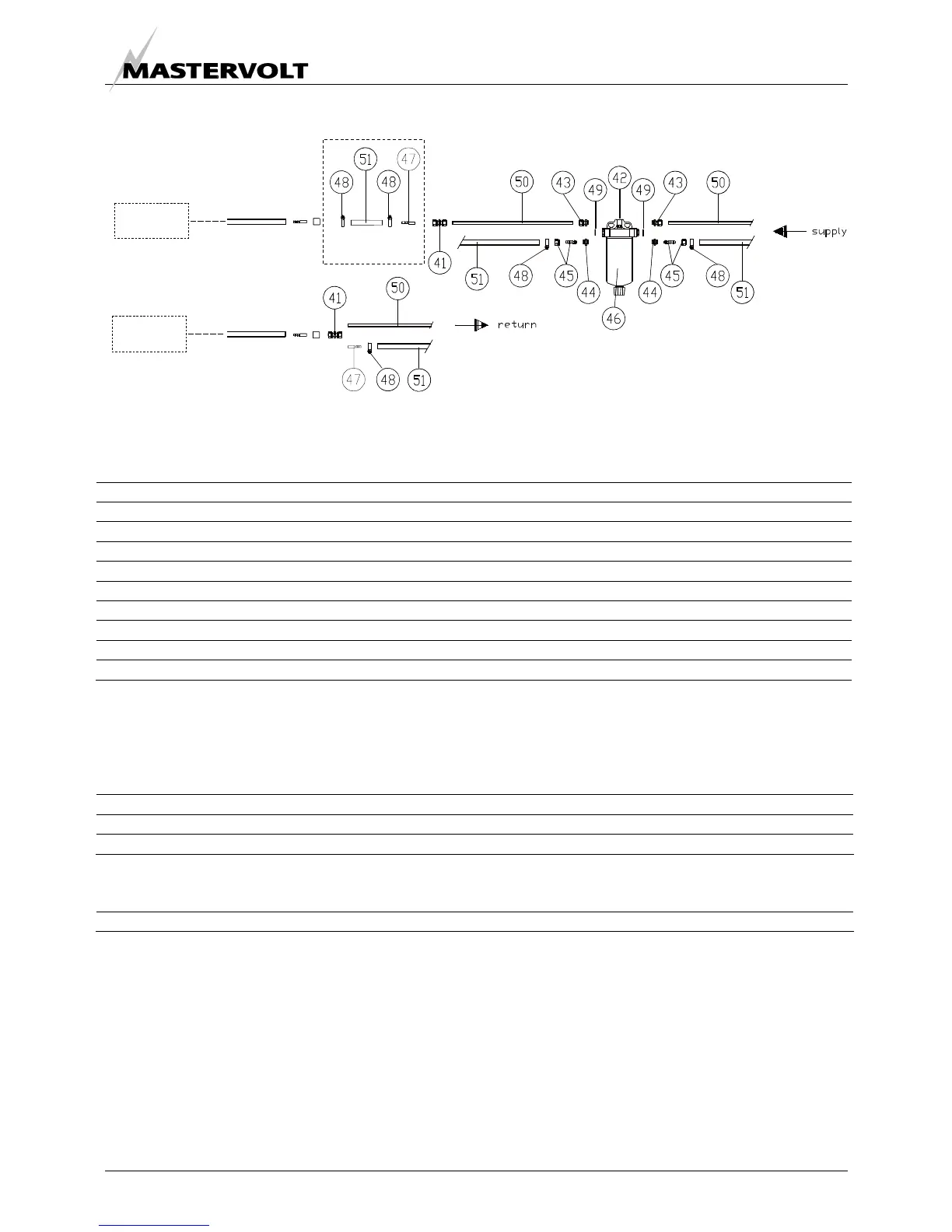

Figure 33: Installation materials fuel supply kit
FUEL SUPPLY KIT
pos. qty article no description
41 2 50221203 Straight coupling 5/16” (8 mm)
42 1 50230091 Filter head strainer fuel/water separator
43 2 50221618 Parallel male coupling M14- 8 mm
44 2 50221619 Parallel male coupling M14- 10 mm
45 2 50221620 Hose connection 5/16” (8 mm) outer cone
46 1 50230092 Filter for strainer fuel/water separator
47 2 50221252 Nipple hose pipe 5/16”- 5/16” (8-8 mm)
48 4 50221522 Hose clamp stainless 10-16
49 2 50221632 Copper gasket ring 18x14x1,5 mm
TOTAL 50230205 FUEL SUPPLY KIT
Note: fuel pipes / fuel hoses are not included in the delivery of the fuel supply kit.
OPTIONAL INSTALLATION MATERIALS
• Additional installation parts
pos. qty article no description
48 50221522 Hose clamp stainless 10-16
50 50222020 Copper fuel pipe per meter
51 50220063 Fuel hose per meter
• Spare parts
pos. qty article no description
46 50230092 Filter for strainer fuel/water separator
