Mastervolt WHISPER 15 ULTRA

DIAGRAMS & DRAWINGS
US / Whisper 7/9.5/15/20 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 33
4 DIAGRAMS & DRAWINGS
4.1 LAYOUT GENERATOR CONTROL FOR WHISPER 7, 9.5 AND 15 ULTRA WITH 120VAC FAN

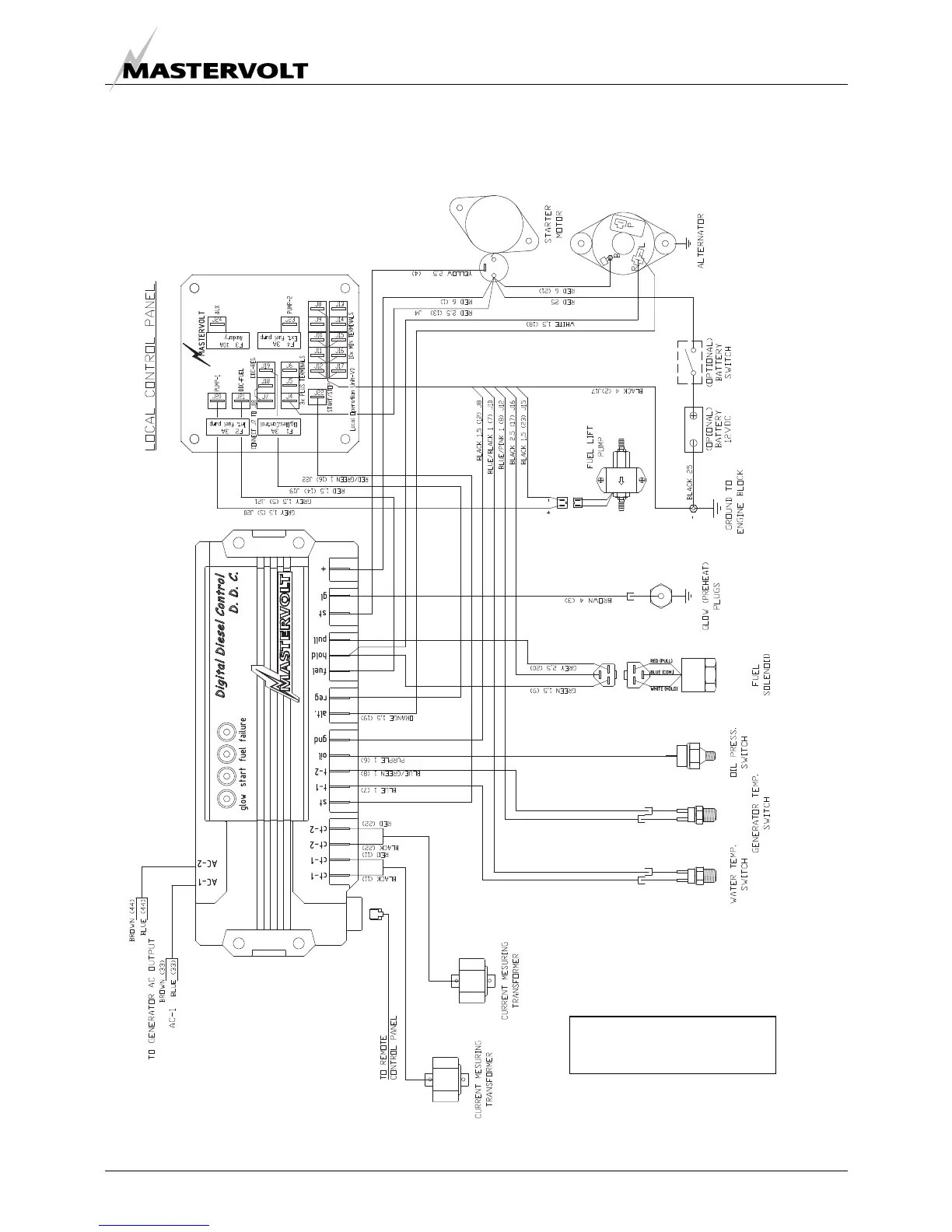

Fig. 39: Layout generator control for Whisper 7 Ultra, 9.5 Ultra and 15 Ultra using a 120VAC radiator fan
See section 4.8 for connection
of 120V AC radiator fans
