Mastervolt WHISPER 15 ULTRA Installation Manual

INSTALLATION SPECIFICATIONS
32 Copyright © 2009 Mastervolt / May 2009 / Whisper 7/9.5/15/20 Ultra for mobile applications / US
Radiator cooling kit engine 1” - 120VAC (AP430-120V) for Whisper 9.5 Ultra
pos. qty article no description
1 1 - - Radiator AP 430 120VAC
2 2 50221502 Hose clamp stainless 22-30 mm
3 1 50221064 Male nipple 1"
4 1 50221044 TEE fitting 1"
5 2 50221014 Male hose connection 1"x35
6 1 50221103 Straight reducer m/f 1-3/4"
7 1 50221004 Male hose connection 3/4x20
8 1 50212409 Temperature switch 87-82 degr
9 4 50201121 Vibration mounting 30x25
10 4 50211152 Bolt hexagonal ZP M8x16
11 4 50211465 Nut hexogonal SP M8
12 4 50211405 Washer SP M8
13 8 50211445 Washer spring SP M8
14 6m 50220013 Cooling water hose smooth (11/4") 32x41
15 4 50221504 Hose clamp stainless 35-50 mm
16 8 50221597 Hose support stainless 45x20 mm
17 1 50230529 Bracket expansion tank for 50230531 pass
17 1 50230531 Expansion tank 20 mm
17 1 50230532 Cap for expansion tank 50230531
18 1.5m 50220011 Cooling water hose smooth (3/4")18x27
19 4m 50220005 Hose hydraulic 7,5x15mm
20 4 50211437 Washer mudguard SP 8x30x1,5
21 2 50221522 Hose clamp stainless 10-16
TOTAL
Upon request
Radiator cooling kit engine 1¼” (AP430-120V)
Radiator cooling kit engine 1” - 120VAC (AP 430/2) for Whisper 15 / 20 Ultra. Same as above, except:
no qty article no description
1 1
- - Radiator AP 430/2 120V
TOTAL
Upon request
Radiator cooling kit engine 1¼” (AP430/2-120V)
OPTIONAL INSTALLATION MATERIALS
pos. qty article no description
22 1 50230535 Expansion tank 7L + low level alarm switch
Generator
Engine coolant outlet 1¼”
Generator
Engine coolant intlet 1¼”
Generator
Expansion tank connection
Roof mounting of the radiator
Optional

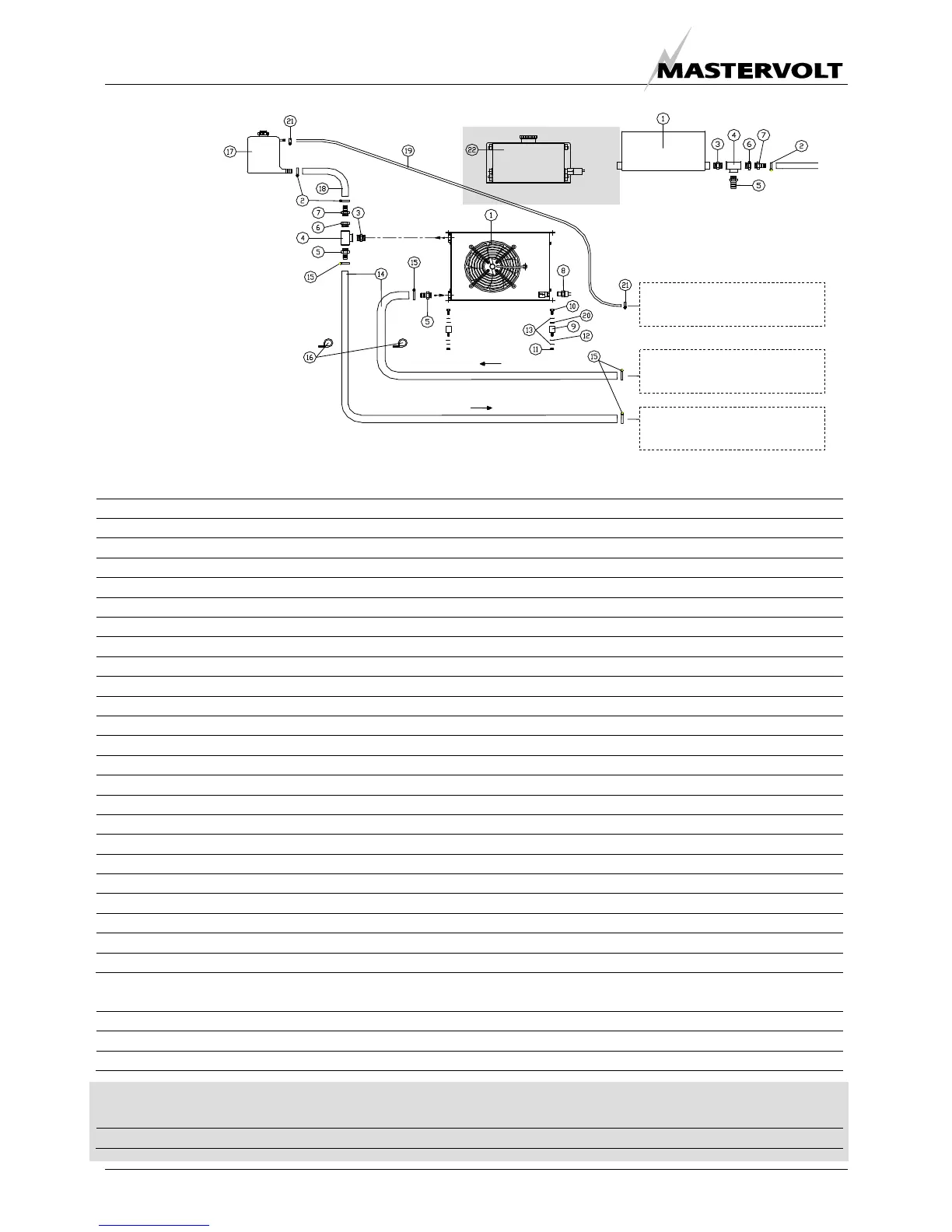

Figure 38:
Radiator cooling kit engine
1” - 120VAC
for Whisper 9.5 Ultra, 15 Ultra and 20 Ultra
