4.14 DIMENSIONS WHISPER 15 ULTRA

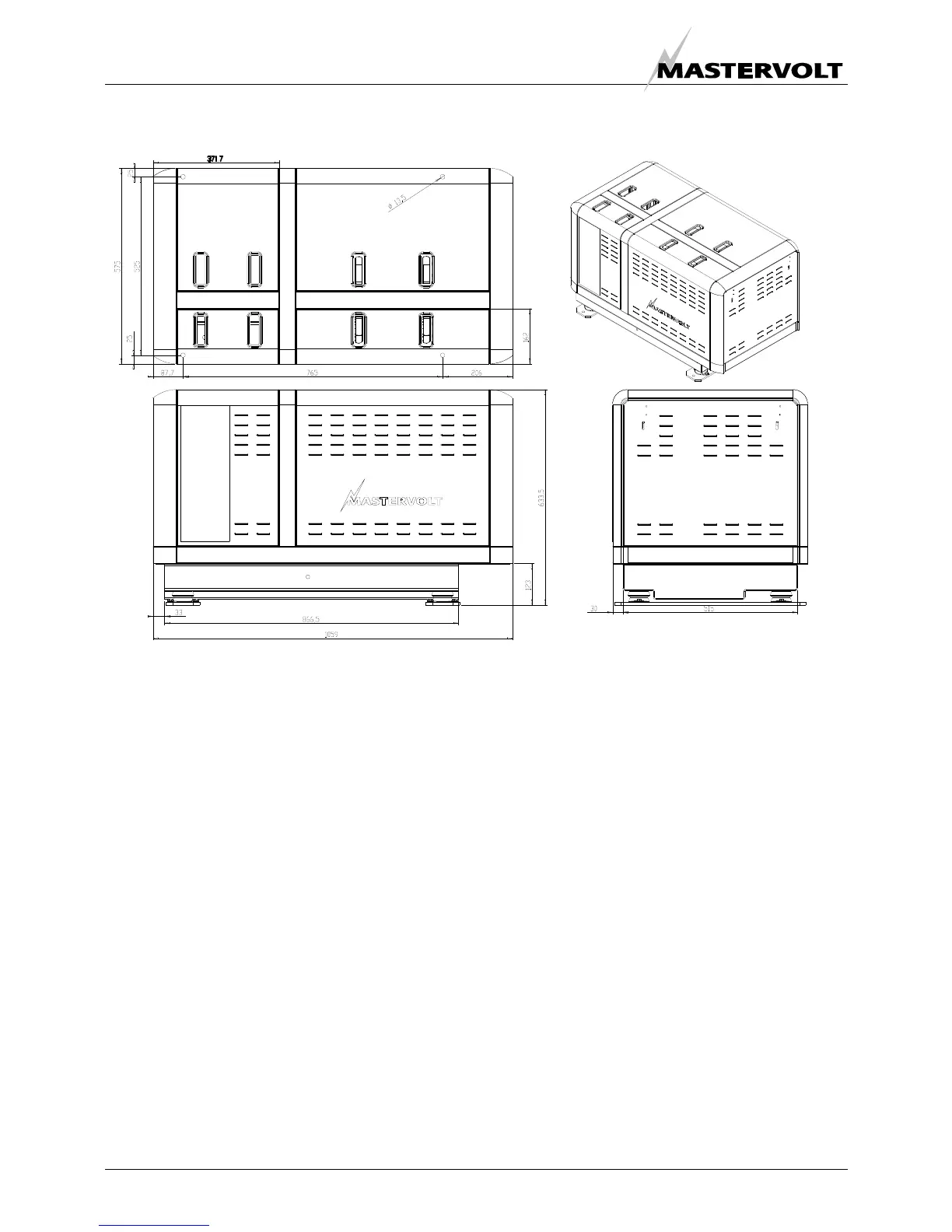

Fig. 51: Outer dimensions (mm) Whisper 15-Ultra
CONNECTIONS WHISPER 15 Ultra: BOX DIMENSIONS WHISPER 15 ULTRA
• exhaust: 1 ½” • length 41.7”(1060 mm)
• fuel hose: 5/16” (8 mm) • width 22.6” (575 mm)
• radiator alternator: 3/4” (19 mm) • height 25.2” (640 mm)
• radiator engine: 1¼” (32 mm) • weight 840Lbs (380 kg)
• battery +: AWG 3 (25 mm2)
• battery -: AWG 3 (25 mm2)
POWERCABLES ISO 13297 annex A
Refer to ISO 13297 for details
REMOTE CONTROL:
• 15 meter 8 wire communication cable (included)
To Next Page
