INSTALLATION SPECIFICATIONS
US / Whisper 7/9.5/15/20 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 29

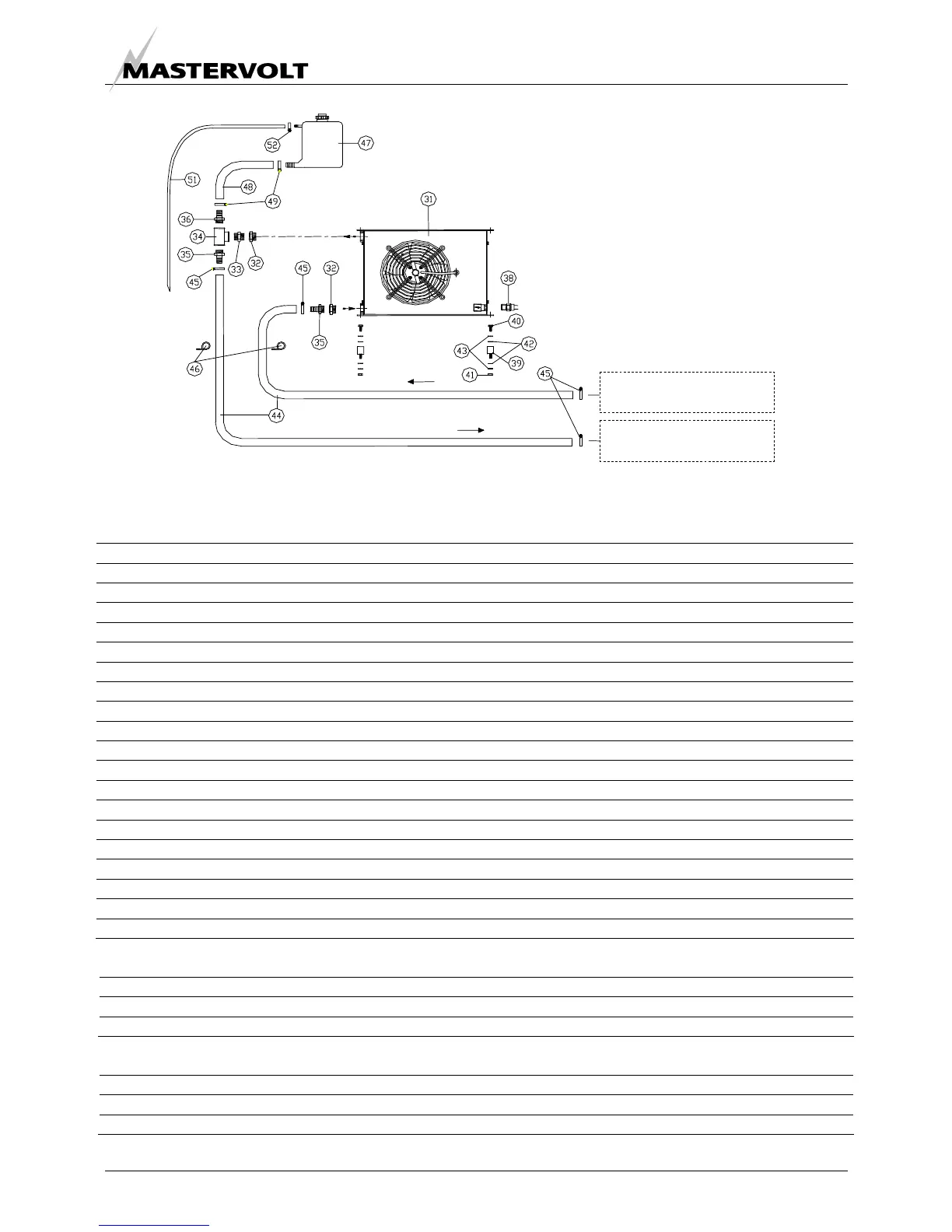

Figure 35: Radiator cooling kit alternator ¾” 120VAC for Whisper 7, 9.5 and 15 Ultra
RADIATOR COOLING KIT ALTERNATOR ¾” 120VAC for Whisper 7, 9.5 and 15 ULTRA
pos. qty article no description
31 1 - - Radiator cooler AP 300/2E 120VAC
32 2 50221103 Straight reducer m/f 1-3/4"
33 1 50221063 Male nipple 3/4"
34 1 50221043 TEE fittings 3/4"
35, 36 3 50221004 Male hose connection 3/4x20
38 1 50212405 Temperature switch 35-45 degr
39 4 50201121 Vibration mounting 30x25
40 4 50211152 Bolt hexagonal ZP M8x16
41 8 50211465 Nut hexogonal SP M8
42 8 50211405 Washer SP M8
43 8 50211445 Washer spring SP M8
44, 48 8 50220011 Cooling water hose smooth (3/4")18x27
45, 49 6 50221502 Hose clamp stainless 22-30 mm
46 8 50221599 Hose support stainless 35x12 mm
47 1 50230529 Bracket expansion tank for 50230531 pass
47 1 50230531 Expansion tank 20 mm
47 1 50230532 Cap for expansion tank 50230531
51 1 50220081 Hose polyurethane 8x11mm
52 1 50221532 Hose clamp stainless mini 9-11
TOTAL Upon request Radiator cooling kit alternator 19mm 120VAC for Whisper 7, 9.5 and 15 Ultra
RADIATOR COOLING KIT ALTERNATOR ¾” 12VDC for Whisper 7 Ultra. Same as above, except:
no qty article no description
31 1 50230302 Radiator cooler AP 300/2 E 12VDC
TOTAL 50201872 Radiator cooling kit alternator 19mm 12VDC for Whisper 7ULTRA
RADIATOR COOLING KIT ALTERNATOR ¾” 24VDC for Whisper 7 Ultra. Same as above, except:
no qty article no description
31 1 50230303 Radiator cooler AP 300/2 E 24VDC
TOTAL 50201868 Radiator cooling kit alternator 19mm 24VDC for Whisper 7 ULTRA
Generator
Alternator coolant outlet ¾”
Generator
Alternator coolant inlet ¾”
Open drain
