INSTALLATION
18 Copyright © 2009 Mastervolt / July 2009 / WHISPER 6/8/11 / US
2 INSTALLATION SPECIFICATIONS
2.1 INSTALLATION TABLE
1 Install a steel foundation plate between ship’s hull and

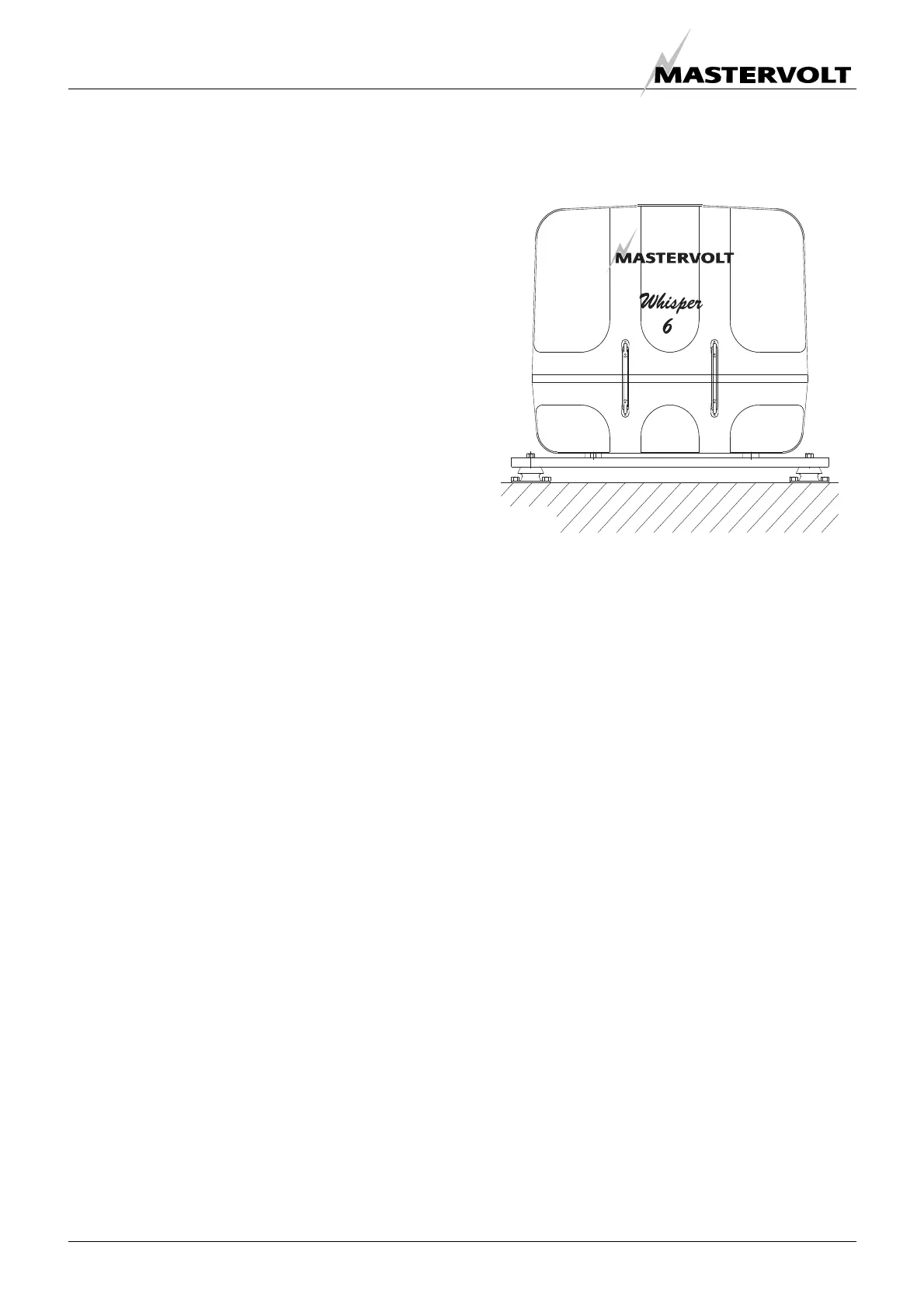

generating set, with 4 shock mounts (ref. to fig. 20)
‘foundation plate’ (optional for Whisper 6 and 8).
2 Mount the generating set directly to the foundation
plate.
3 Connect the (sea) water inlet to the strainer.
4 Connect exhaust system.
5 Connect a siphon breaker or ‘air vent’ into the cooling
circuit, if necessary.
6 Connect ‘fuel supply line’ to the water separator/ fuel
filter.
7 Connect ‘fuel return line’ to the fuel tank.
8 Connect remote panel (just plug in).
9 Connect the AC cable from the AC box to the power
source selector or Mass Systemswitch.
10 Connect plus and minus from the 12V starter battery
to the battery cables.
11 Install a Mastervolt battery charger. (optional)
Fig. 12.
Fig. 20
