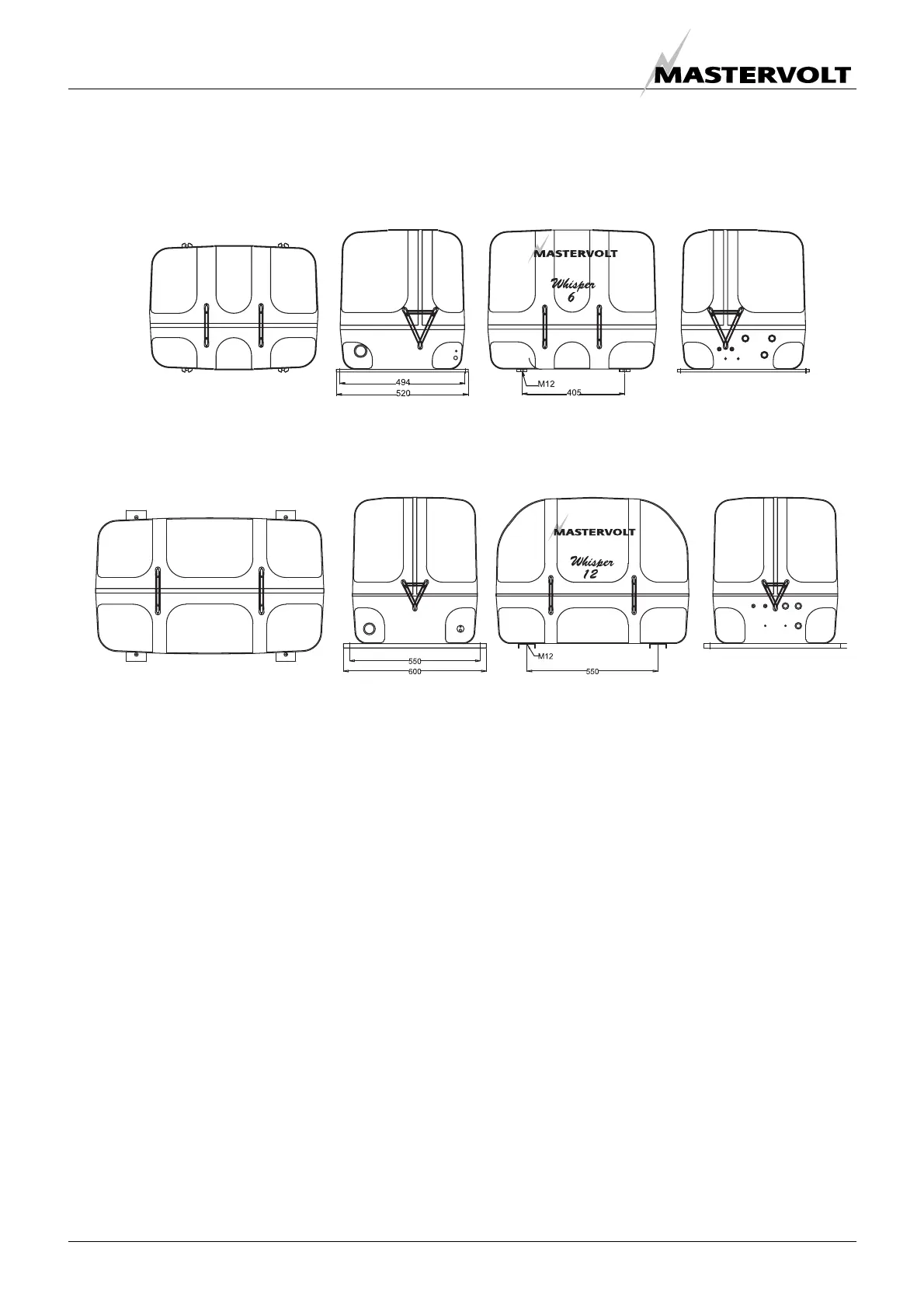

3.6 DIMENSIONS WHISPER 6, 8 AND 11
CONNECTIONS WHISPER 6/8: POWERCABLES ISO 13297 annex A
• exhaust: 1
5
/
8
” (40 mm) Whisper 6 – 120-240V: 4xAWG12 / 4 mm² (15ft / 5m. included)
• fuel hose: 5/16” (8 mm) Whisper 6 – 120V: 3xAWG6 / 10 mm² (not included)
• sea water in: ¾” (19 mm) Whisper 8 – 120-240V: 4xAWG12 / 4 mm² (15ft / 5m. included)
• air vent connection: ¾” (19 mm) Whisper 8 – 120V: 3xAWG6 / 10 mm² (not included)
• battery positive +: AWG2 (25 mm2) Whisper 11 – 120-240V: 4xAWG6 / 10 mm2 (not included)
• battery negative -: AWG2 (25 mm2) Whisper 11 – 120V:3xAWG4 / 16 mm2 (not included)
• remote control: 30ft (10 mtr)
REMOTE CONTROL:
• 15 meter 8 wire communication cable (included)
BOX DIMENSIONS WHISPER 6 and 8 – 3600rpm BOX DIMENSIONS WHISPER 11 – 3600rpm
• length 26” (660mm) • length 31.9” (810 mm)
• width 19.5” (495mm) • width 20.7” (525 mm)
• height 21.7” (550mm) • height 24.2” (615 mm)
• weight Whisper 6 / 8 392Lbs (178 kg) • weight Whisper 11 463Lbs (210kg)
Top view
WHISPER 6/8
Service side
Top view Service side
WHISPER 11
Fig 28
Fig 29
