20

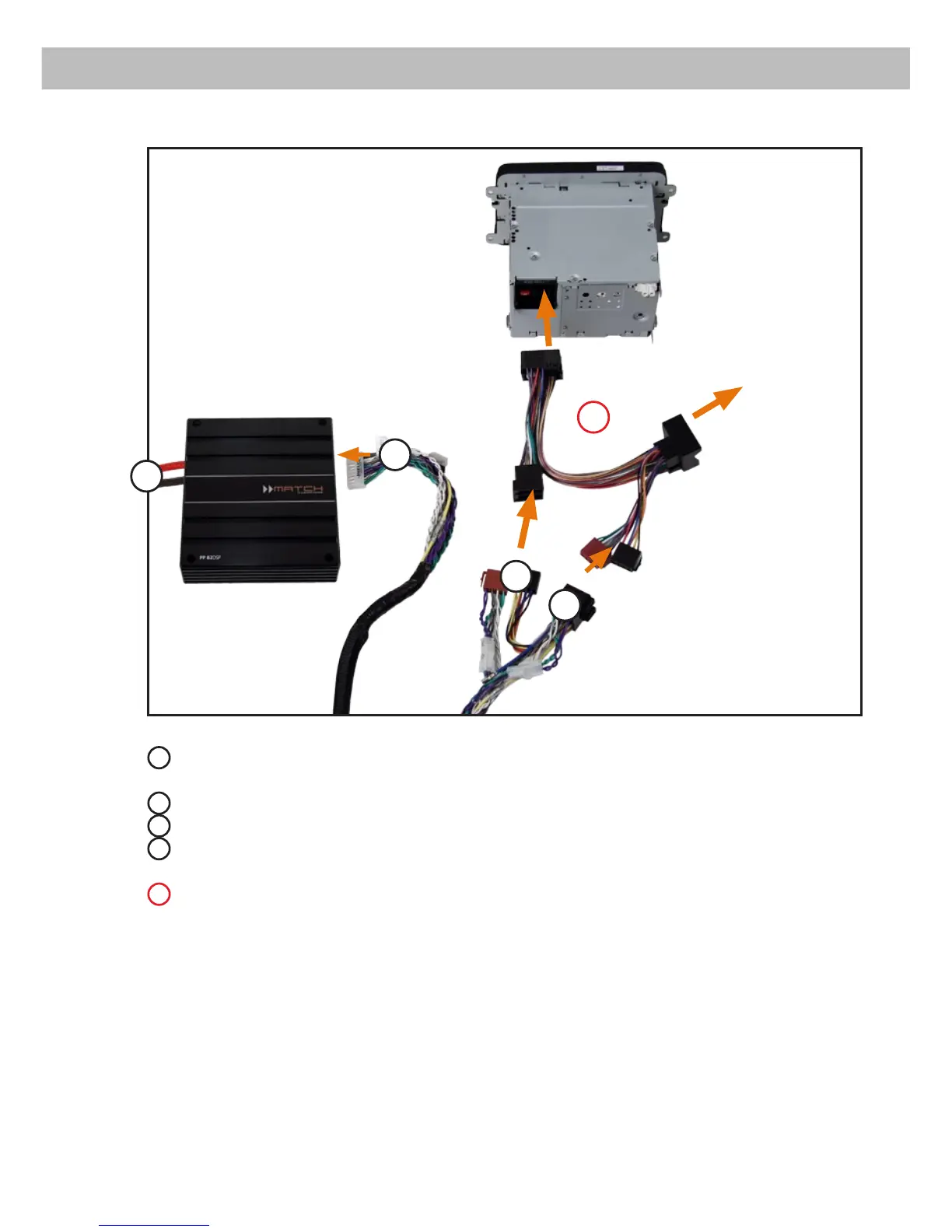

Abb. 3 Connection of the amplier to the car radio
1
The ISO female connector will either be plugged into the vehicle harness that has been dis-
connected from the car radio or a car-specic adaptor.
2
The ISO male connector will either be plugged into the car radio or into a car-specic adaptor.
3
The 20-pole connector will be plugged into the MATCH PP 82DSP amplier.
4
The power supply terminal has to be connected directly with the battery - use only adequate
cables and fuse the +12V wire close to the battery.
5
Optional: car-specic adaptor – such an adaptor may be required if the ISO connectors of
the provided PP 82DSP cable harness does not t into your car radio.
Male and female con-
nector for original cable
harness or car-specic
adaptor
Female
connector for
original cable
harness
2
3
1
5
4
