Conguration examples

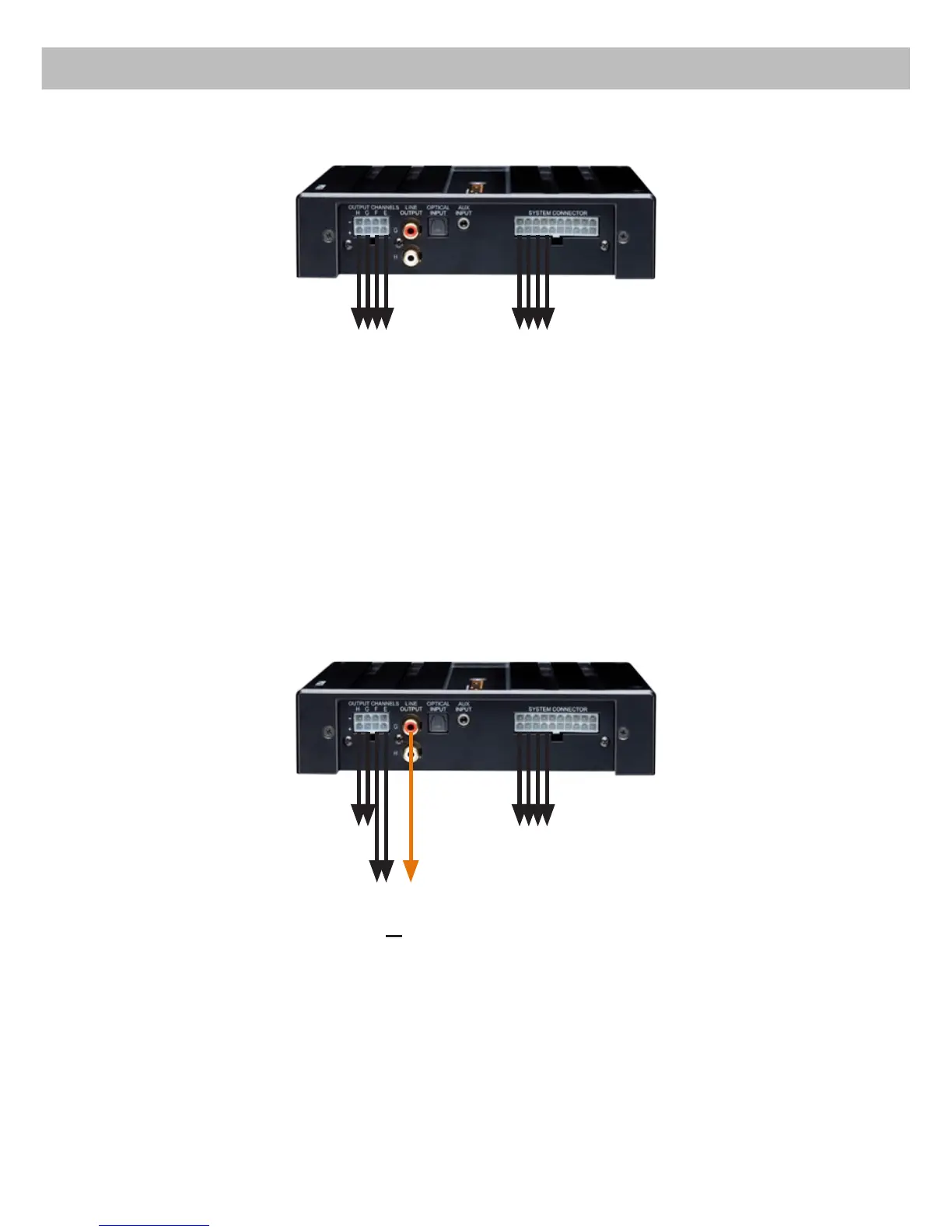

Front / Rear passive system plus subwoofer
passive subwoofer
e.g. PP 10E
front / rear channels
front tweeter
subwoofer with dual voice-coil
(ideally 2 x 2 Ohms)
or
RCA line outputs for connecting a separate
subwoofer amplier
front midbass /
rear channels
Front 2-way full active system / Rear passive system plus subwoofer
This is a classical 5-channel setup, where 4 of the 8 amplier channels are used to drive a MATCH
subwoofer. We strongly recommend to use this conguration only in combination with our subs PP 10E-D
or PP 8E-Q. The versions PP 7E-D and PP 7S-D may not be able to handle the full amount of amplier
power.
This 7-channel conguration is recommended for highest quality in combination where the typical passive
crossover for the front midbass/tweeter is eliminated and those speakers are driven by separate amplier
channels. The PC tool software offers a wide range of highpass/lowpass lters for precise crossover
design.
