Matco Tools AC442 - Unit Description and Views; Front, Rear, and Connection Views

en
10
| AC442 | Description of unit


1901016-85

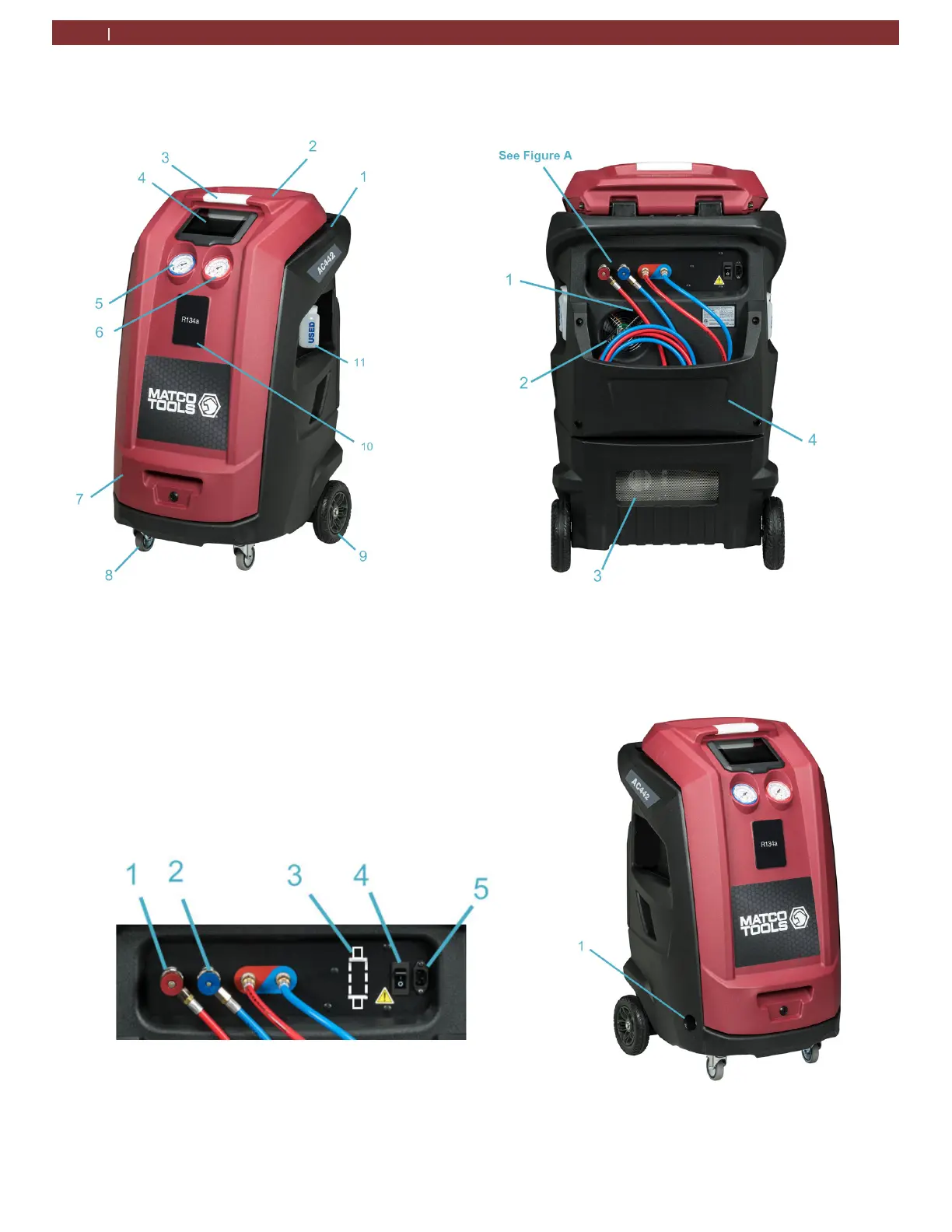

4 Description of unit

Fig. 3 Front left view
1. Vacuum pump oil level sight glass
Fig. 1: Front Right View
1. Rear Handle
2. Tool Tray
3. Status indicator light
4. LCD display
5. Low Pressure Gauge
6. High Pressure Gauge
7. Front Cover
8. Locking Caster
9. Rear Wheel
10. Printer (optional)
11. Used oil bottle

Fig. 2: Rear View
1. Service Hoses
2. Fan
3. Vent
4. Hose Storage
Figure A: Rear Connection View
1. High Side Parking Coupler
2. Low Side Parking Coupler
3. Refrigerant Identifier (Optional)
4. Power Switch with circuit breaker
5. Power Cord socket
