8.10 KEYPAD & OVERLAY REPLACEMENT - CONTINUED
CHAPTER 8: PART REPLACEMENT GUIDE

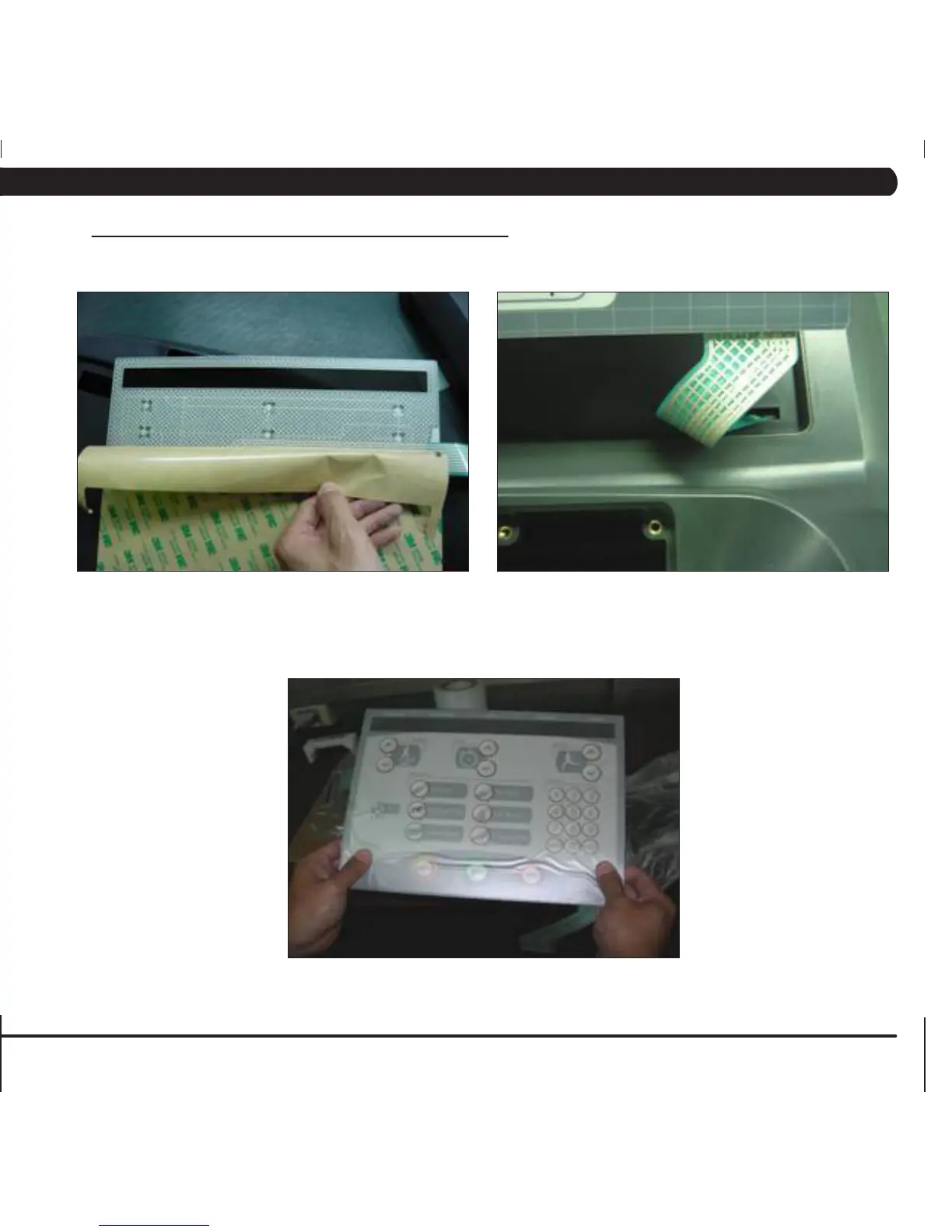

FIGURE E FIGURE F
FIGURE G
7) Peel part of the protective film from the back of the overlay (Figure E).
8) Push the overlay ribbon cable through the hole in the console and plug it in (Figure F).
9) Match the overlay to the cutout on the console (Figure G).
