Matrix A5x-02 User Manual

36
8.10 KEYPAD & OVERLAY REPLACEMENT - CONTINUED
FIGURE H FIGURE I
FIGURE J
CHAPTER 8: PART REPLACEMENT GUIDE

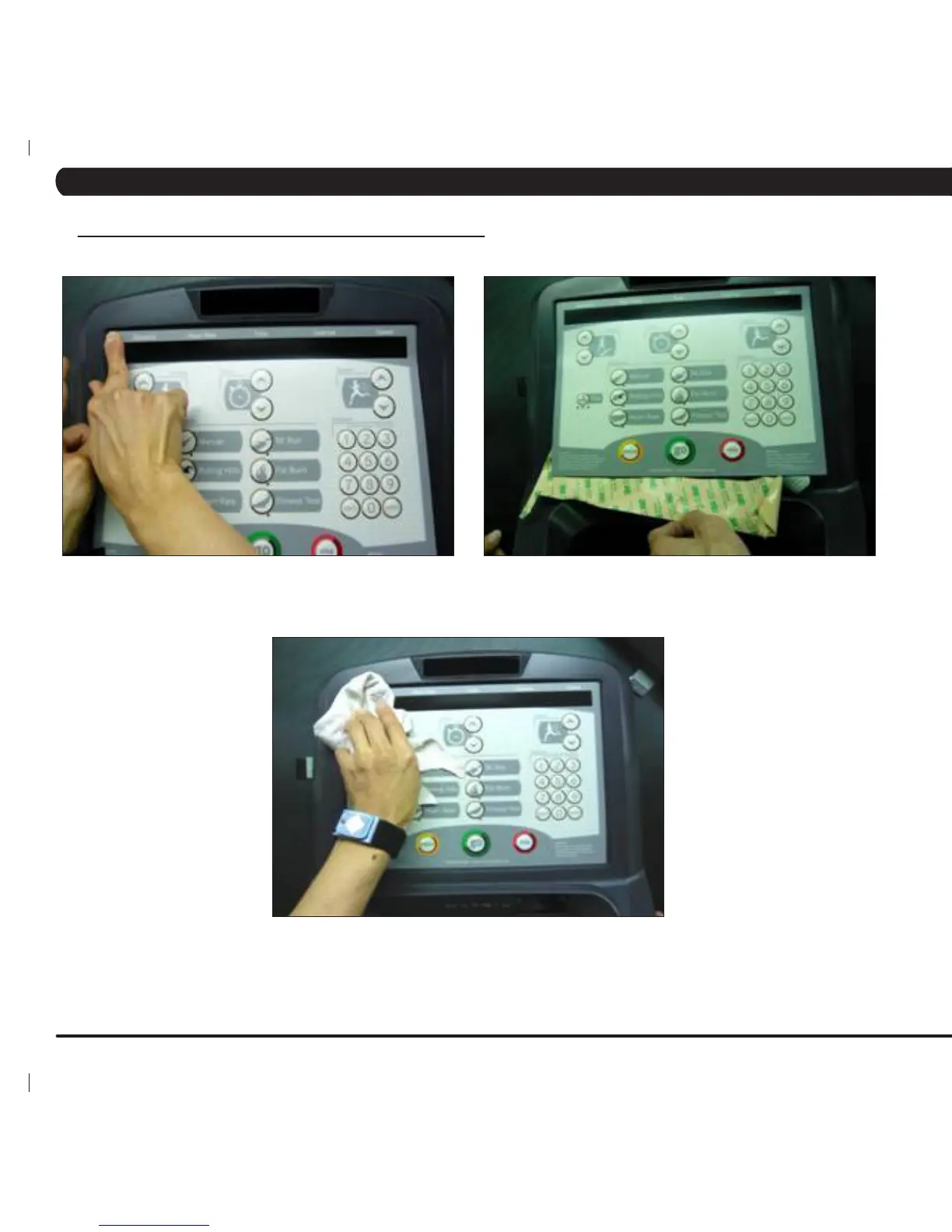

10) Press down on the corners of the overlay to keep it in place, then remove the protective film (Figure H & I).
11) Once the overlay is in the correct position, press down on the overlay with a cloth to adhere it to the console plastic (Figure J).
12) Use the same procedure to replace any additional faulty overlays. note: Overlays can not be reused.
13) Test the Ascent Trainer for function as outlined in Section 9.20.
