CHAPTER 8: TROUBLESHOOTING

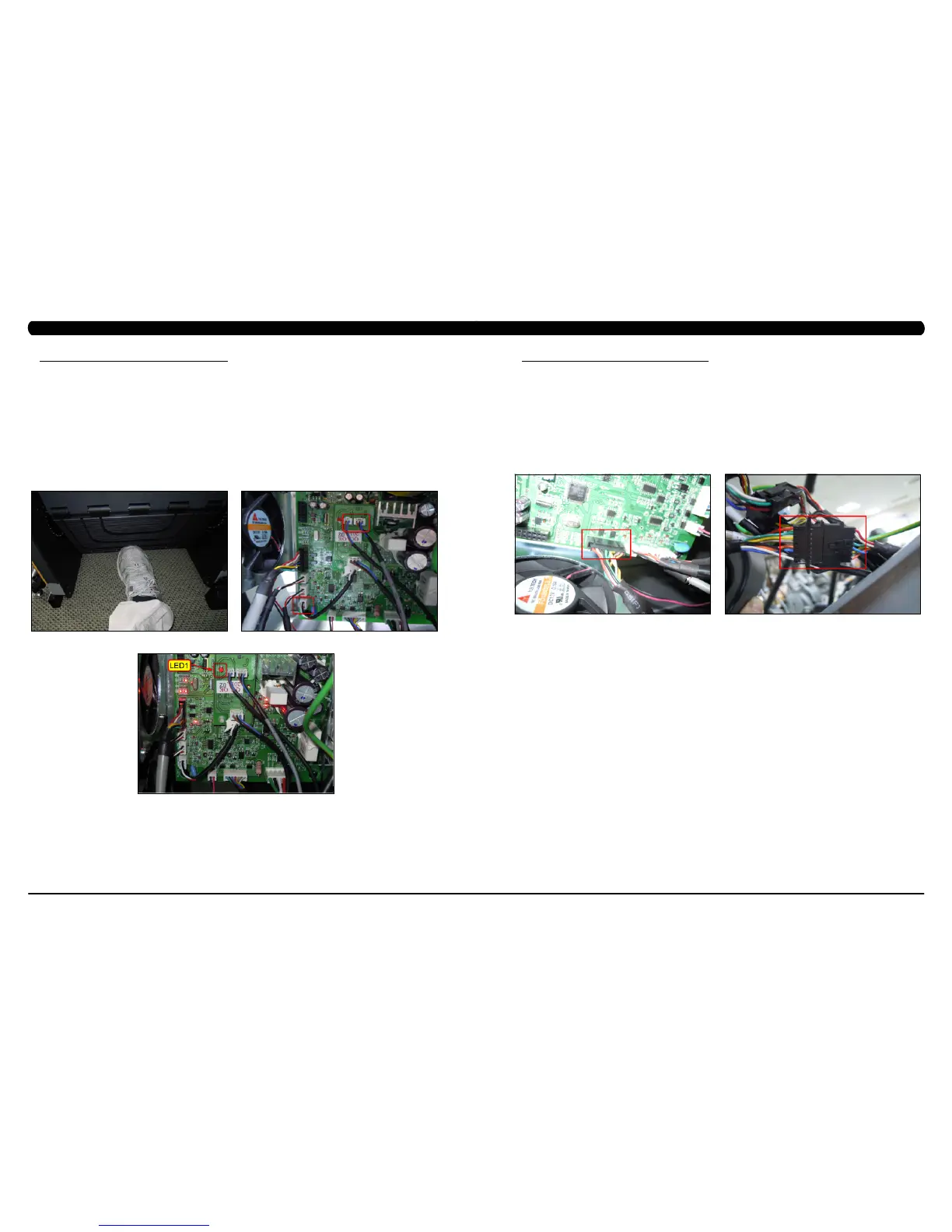

8.11 ERROR CODE TROUBLESHOOTING - 04A0
ERROR CODE 04A0
1) SYMPTOM:
a. 04A0 - Console has no communication or is disconnected.
2) SOLUTION:
a. Check the console cable connections at the LCB (Figure A) and UCB (Figure B).
b. Replace the console cable.
c. Replace the UCB.
FIGURE BFIGURE A
8.10 ERROR CODE TROUBLESHOOTING - 02C3
CHAPTER 8: TROUBLESHOOTING
ERROR CODE 02C3 (Frame IR sensors error)
1) SYMPTOM:
a. The frame IR sensors are no communication or disconnected over 3 seconds.
b. Once power on, the frame IR sensors are no power or hidden over 3 seconds.
c. After power on, the frame IR sensors are no power or hidden over 4 hours.
2) SOLUTION:
a. Check if there's something in the control zone 3 IR sensors. (Figure A).
b. Check the connection of the frame IR cable from the LCB to the frame IR sensors (Figure B).
c. Check if LED1 on the small transfer board is flashing (Figure C).
- If not, replace the small transfer board.
- If yes, replace the frame IR cables (transmission & receiver).
FIGURE A FIGURE B
FIGURE C
