32) Plug a coax cable with a signal strength of 10 Hz into the base of the unit (Figure CC).
33) Power up the Climb Mill and test for function as outlined in Section 9.20.
34) Enter into Engineering Mode (see Section 6.1), and set the Audio Source setting for TV (Figure DD)
35) Program the TV as outlined in the TV Owner's Manual.
CHAPTER 10: CLIMB MILL SPECIFICATIONS AND ASSEMBLY GUIDE
10.5 MYE TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED

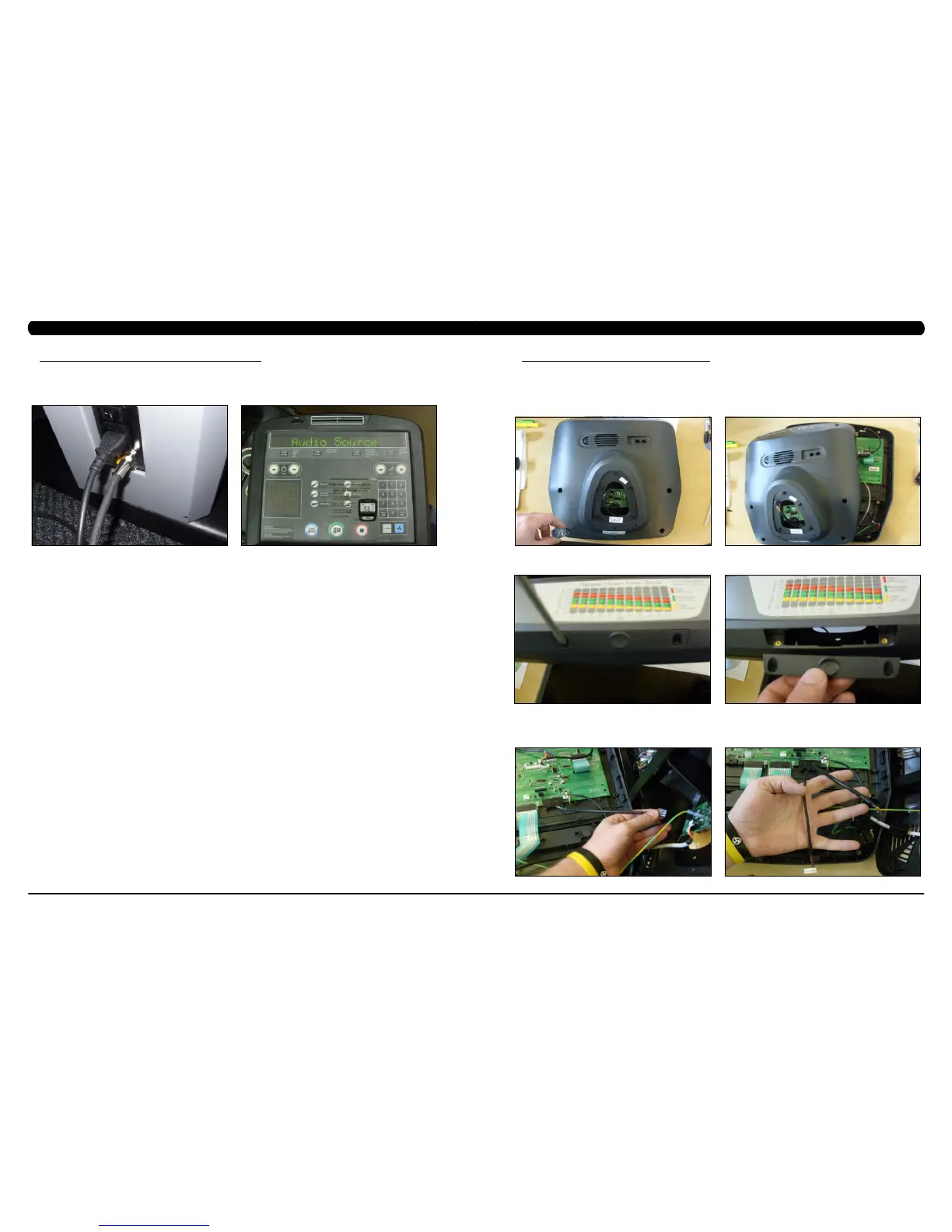

FIGURE CC FIGURE DD
10.6 PCTV BRACKET INSTALLATION INSTRUCTIONS
CHAPTER 10: CLIMB MILL SPECIFICATIONS AND ASSEMBLY GUIDE
The Matrix Climb Mill is capable of having a MYE Entertainment or Web Ready (PCTV) television installed using an integrated bracket. Follow
the instructions below to install the PCTV and TV bracket, and the instructions located in the PCTV owner's manual to program the television.
1) Turn off power, and remove the cord from the machine.
2) Remove the console from the unit as outlined in Section 9.2.
3) Remove the 6 screws holding the console front to the back and split the console (Figures A & B).
4) Remove the 2 screws holding on the blank headphone jack plastic to the console, and remove the plastic (Figures C & D).
5) Remove the wire in the console that goes from the UCB to the board on the console back (Figure E).
6) Install the new Y cable sent with the TV bracket kit to replace the wire removed in Step 4 (Figure F).
FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
