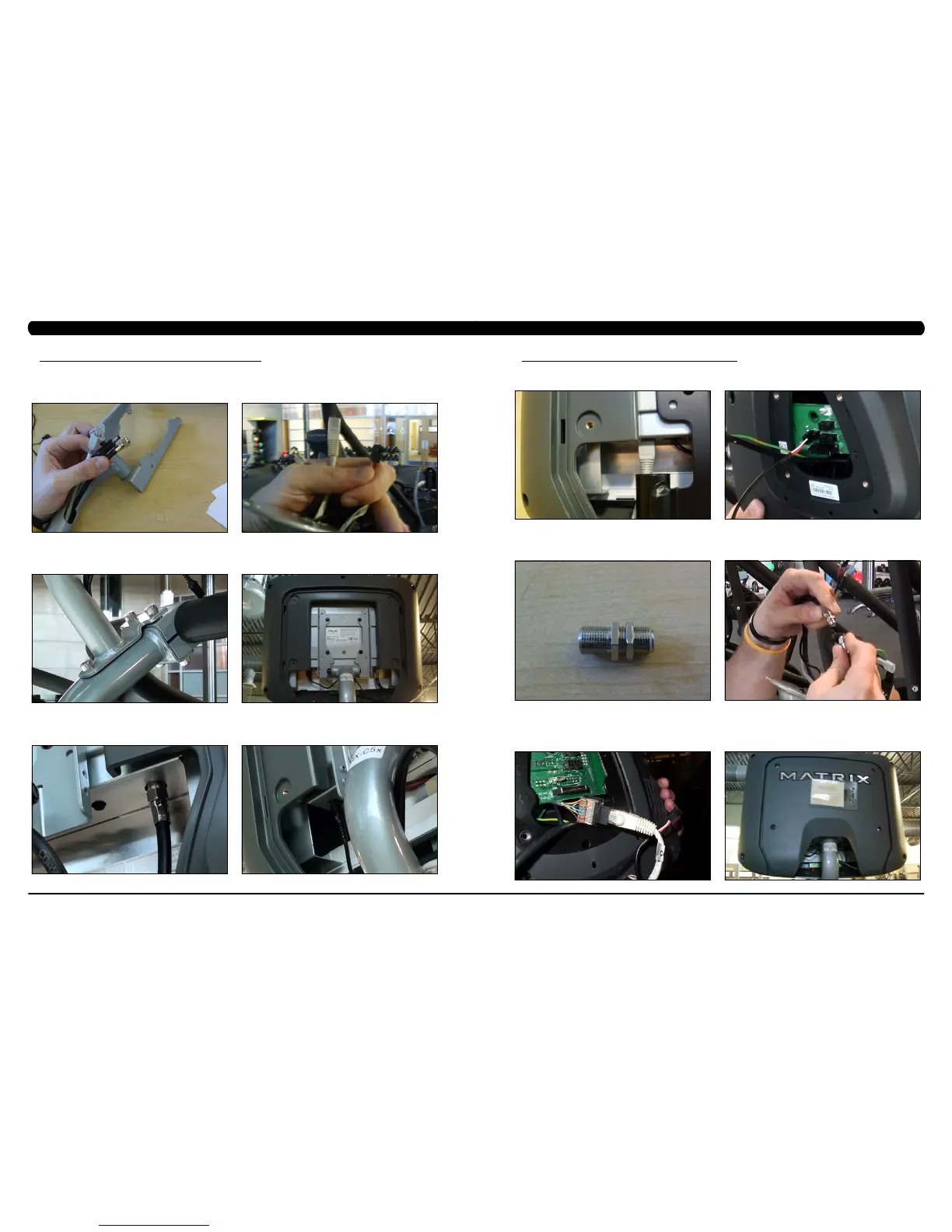

19) Route the TV controller wire, power wire, and coax cable through the bracket (Figure Q). There should now be a black adaptor (power
wire), white RJ45 connector labeled TO TV (controller wire), and coax cable sticking out the top of the bracket.
20) Route the wiring coming out the bottom of the bracket through the Climb Mill frame. The controller wire, power wire, and coax cable should
now be coming out of the console mast along with the normal console and heart rate cables (Figure R).
21) Mount the TV bracket to the Climb Mill frame using the 3 screws removed in Step 16 (Figure S).
22) Mount the TV to the bracket using 4 screws (Figure T).
23) Plug the coax cable into the TV (Figure U).
24) Plug the power wire into the TV (Figure V).
CHAPTER 10: CLIMB MILL SPECIFICATIONS AND ASSEMBLY GUIDE
10.5 MYE TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
FIGURE Q FIGURE R
FIGURE S FIGURE T
FIGURE U FIGURE V
25) Plug the controller wire into the TV (Figure W).
26) Plug the TV power wire coming from the console mast into the 4 pin black connector on the console (Figure X).
27) Attach the adaptor sent with the TV bracket kit to the coax cable coming from the TV (Figure Y).
28) Attach the coax cable coming from the TV to the coax cable coming from the base of the unit up the console mast (Figure Z).
29) Attach the controller wire end marked TO CONSOLE into the TV controller extension wire that should be sticking out the bottom of the
console from Step 15 (Figure AA).
30) Connect the rest of the console cable connections to the console, and install the console using the 5 screws removed in Step 2.
31) Install a back cover onto the TV to cover the wire connections, secure with 4 screws (Figure BB).
CHAPTER 10: CLIMB MILL SPECIFICATIONS AND ASSEMBLY GUIDE
10.5 MYE TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
FIGURE W FIGURE X
FIGURE Y FIGURE Z
FIGURE AA FIGURE BB
