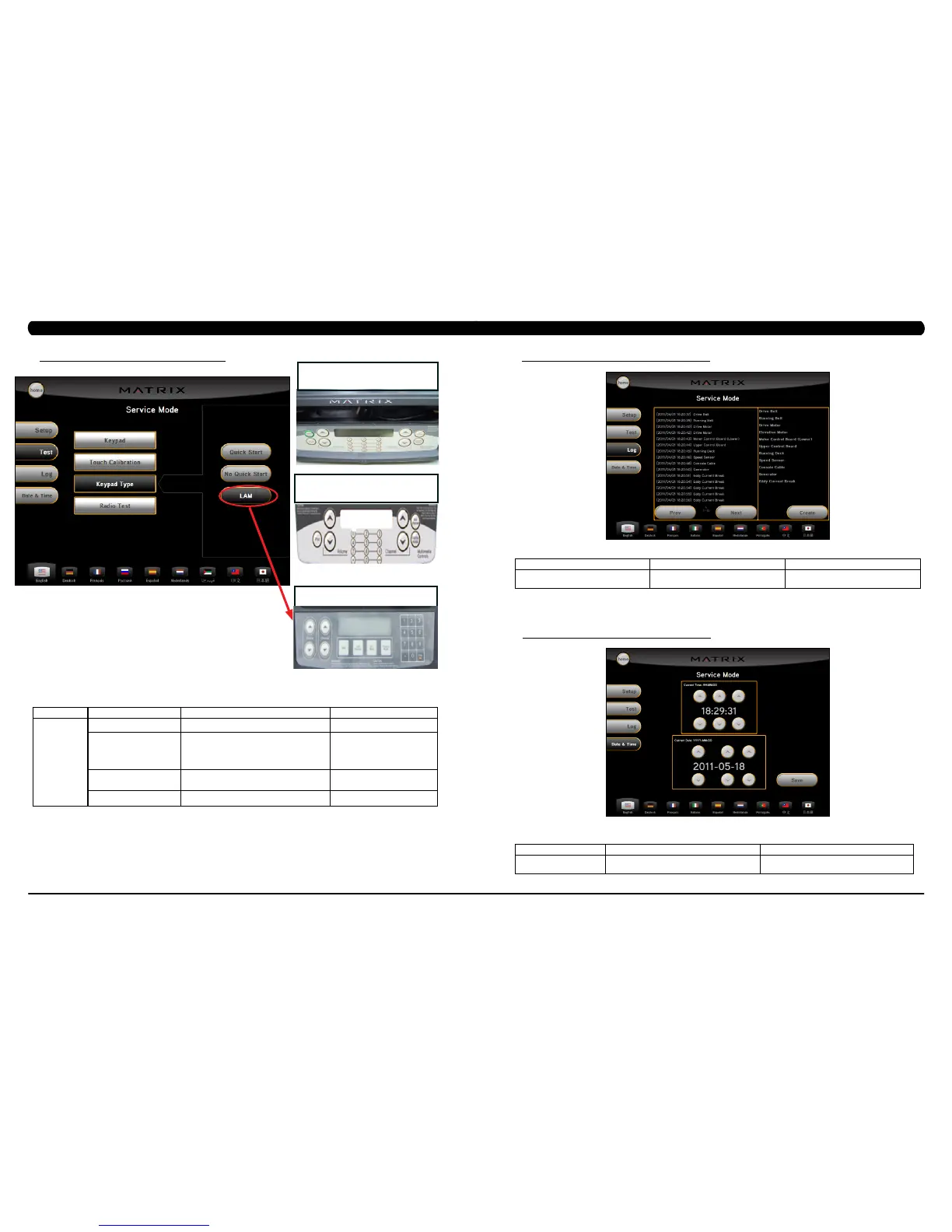

7.3 SERVICE MODE - TEST TAB
FUNCTION & DEFAULTS DESCRIPTIONS MODIFIED
Keypad This option is for a keypad test. N/A
Touch Calibration This option allows for a touch calibration of the
console. Follow the cross mark and touch the
screen to catch. After 5 positions are tested, touch
the center of the screen to exit this test.
N/A
Keypad Type This option sets the keypad type for the console. Quick Start or No Quick Start or
LAM
Radio Test This option will test the radio signal for function. N/A
SERVICE MODE
Test
C7xe-04-C Keypad - New keypad -
C7xe-01--C or C7xe-02-C Keypad - Old
keypad - Includes Quick Start Key
C7xe-03--C Keypad - Old keypad - Does
NOT Includes Quick Start Key
SERVICE MODE FUNCTION & DEFAULTS DESCRIPTIONS
Log This option allows the club to record key
components replacement history.
7.4 SERVICE MODE - LOG TAB
7.5 SERVICE MODE - DATE & TIME TAB
FUNCTION & DEFAULTS DESCRIPTIONS
Date & Time This option sets the current date and time of the
machine.
