9.20 IR SENSOR REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE A FIGURE B
FIGURE DFIGURE C
1) Turn off the power and disconnect the cord from the machine.
2) Remove the Matrix logo covers from each side of the machine.
3) Remove the front cover (Figure A).
4) Remove the Control Zone as outlined in Section 9.18.
5) Remove the IR sensor cable from the LCB, and cut any wire ties holding the cable to the frame (Figure B).
6) Remove the plugs from each side of the machine (Figure C) and separate the side covers.
7) Remove the 2 screws holding the IR sensor to the frame (Figure D).
FIGURE DFIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
9.20 IR SENSOR REPLACEMENT - CONTINUED
8) Remove the IR sensor with plate from frame (Figure E).
9) Remove the 2 screws holding the IR sensor to the plate (Figure F) and remover the IR sensor.
10) Reverse Steps 1-9 to install a new IR sensor. note: When re-installing the IR sensor, make sure that the IR sensor with gray wire on the left
(transmission) and another IR sensor with black wire on the right (receiver).
11) Once the IR sensor is installed, Press the green GO key and begin using the machine. Put your foot in the middle of the IR sensors
(transmission & receiver) to test the sensors are working and enough to stop machine (Figure G). note: The sensor has an eye. The eye of two
sensors should be mounted opposite enough to fully functional (Figure H). Remove the Control Zone rst before you start the IR sensor tests.
12) Test the Climb Mill for function as outlined in Section 9.21.

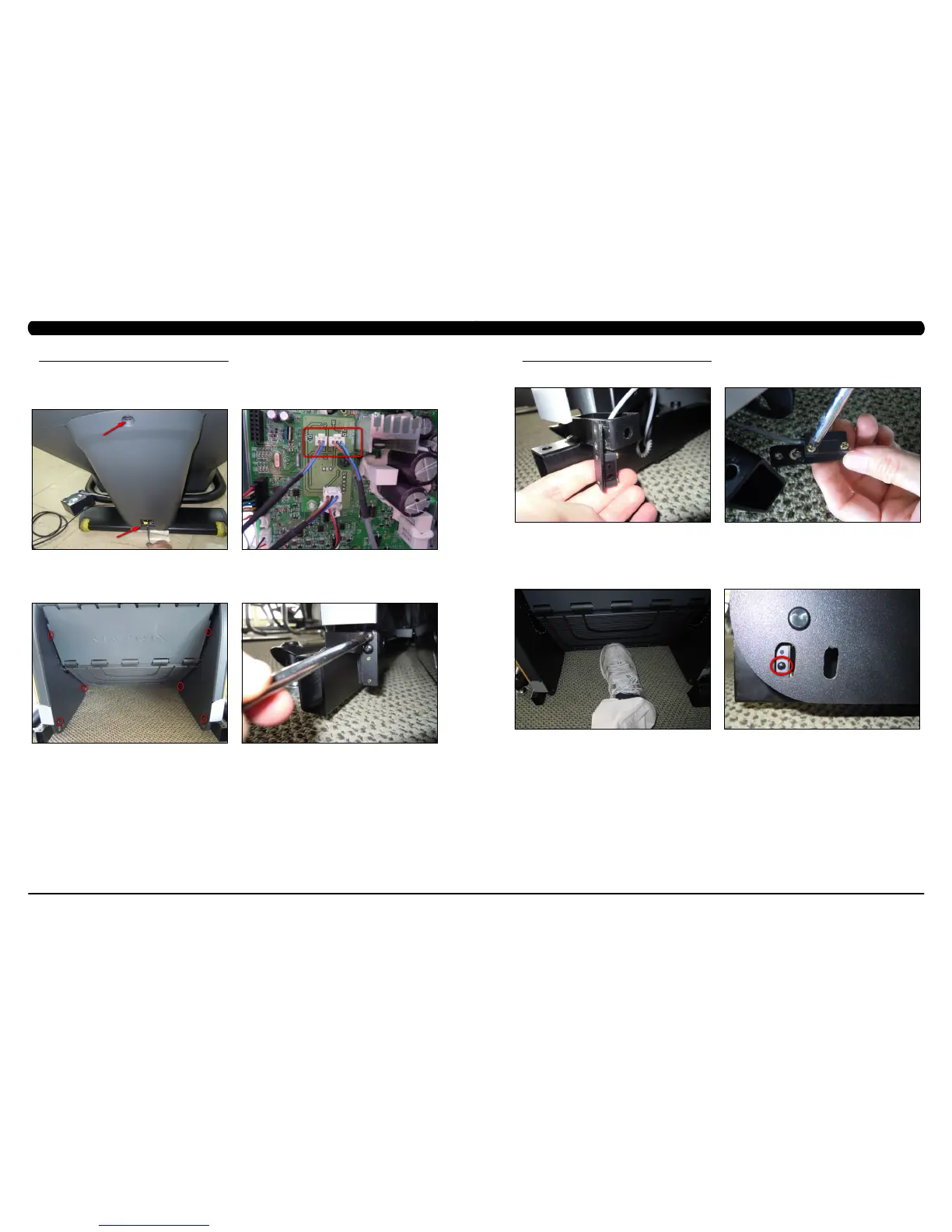

FIGURE E FIGURE F
FIGURE G FIGURE H
