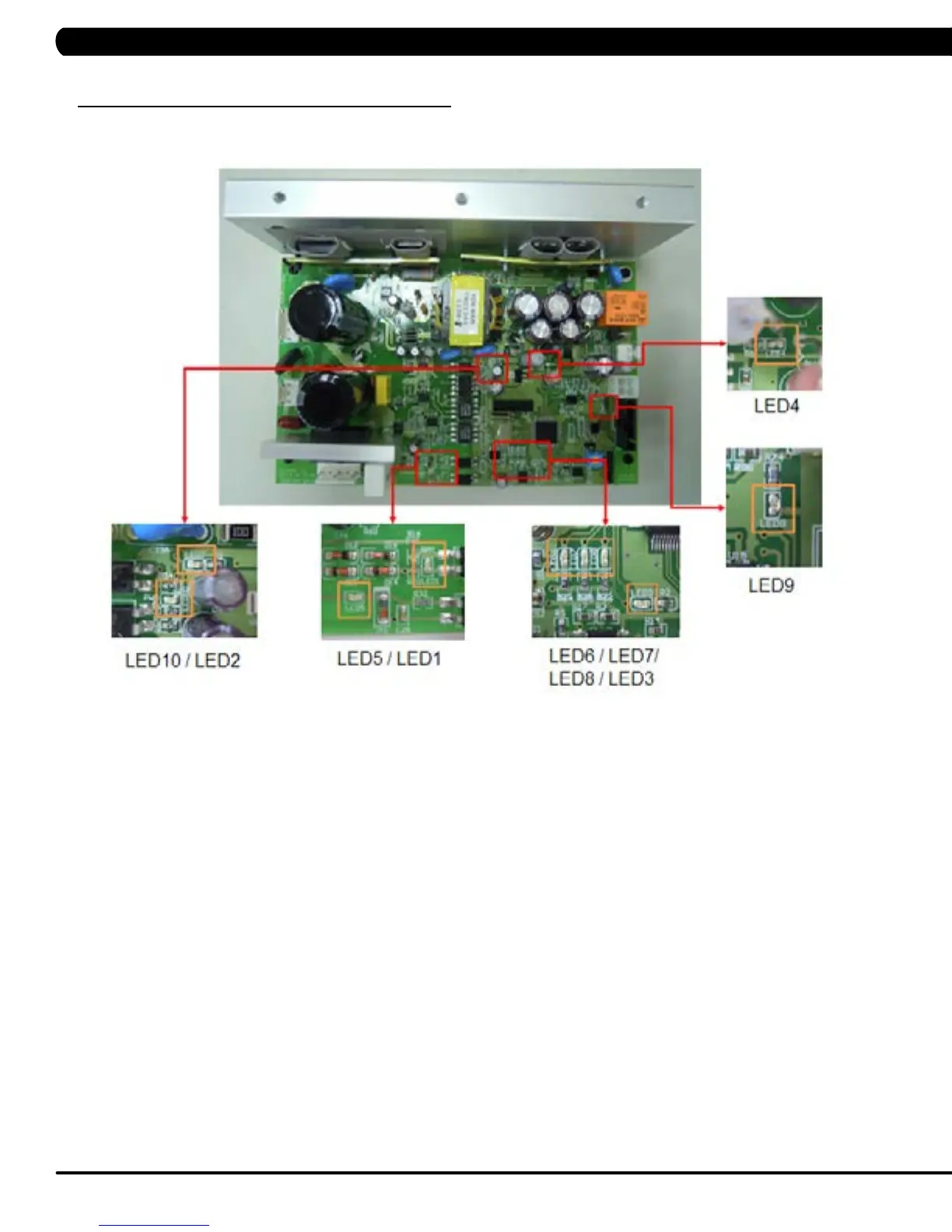

8.3 LCB LED INDICATORS
CHAPTER 8: TROUBLESHOOTING
====================== FIRMWARE DEFINITION ========================
LED6: LCB STATUS (BLINKING: OK)
LED7: RESISTANCE REGULATE STATUS (BRIGHT : NORMAL )
LED8: UCB/LCB COMMUNICATION STATUS (BLINKING : OK )
====================== HARDWARE DEFINITION =======================
LED1: AC PLUG-IN STATUS (BRIGHT : AC )
LED2: DC 5V STATUS (BRIGHT : OK)
LED3: AC PLUG-IN STATUS (BRIGHT : AC )
LED4: DC 12V STATUS (BRIGHT : OK )
LED5: RPM
LED9: UCB POWER SUPPLY STATUS (BRIGHT: POWER ON)
LED10: RESISTANCE PWM STATUS (BRIGHT: RESISTANCE ON)
