55
9.17 SWING ARM REPLACEMENT
1) Remove the bolt from the upper pivot joint on the swing arm (Figure A).
2) Remove the plastic cap from the swing arm (Figure B).
3) Remove the bolt that holds the swing arm to the pedal arm (Figure C).
4) Take the bolt removed in Step 1 and turn it into the shaft (Figure D).
5) Use a mallet to hit the head of the bolt until the swing arm can be separate from the pedal arm, and remove the pedal arm (Figures E & F).
6) Reverse Steps 1-5 to install a new swing arm. note: Torque the bolts removed in Steps 1 & 3 to 80 N-m when installing a new swing arm.
7) Test the Suspension Elliptical for function as outlined in Section 9.21.

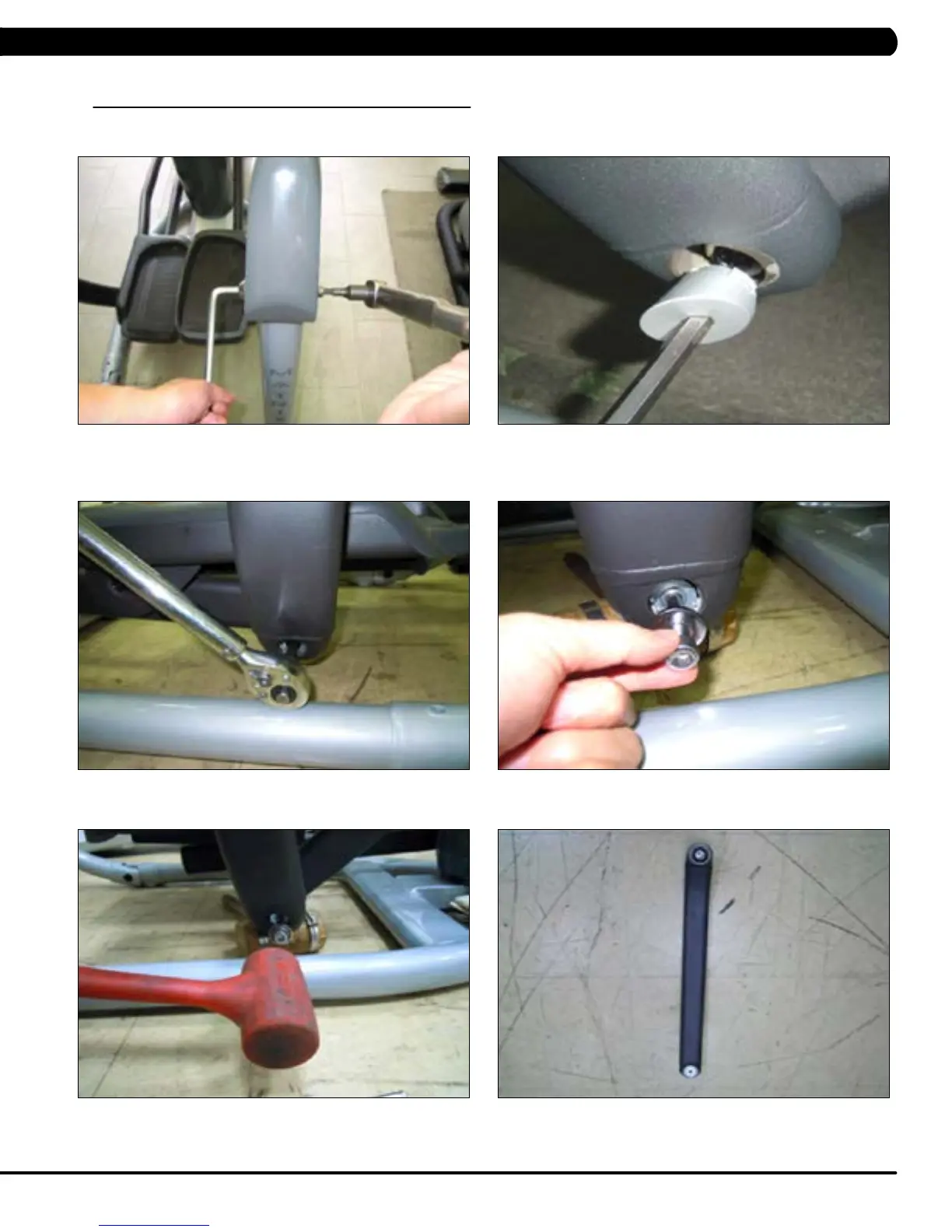

FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
CHAPTER 9: PART REPLACEMENT GUIDE
