75
10.5 TV BRACKET INSTALLATION INSTRUCTIONS
The Matrix Suspension Elliptical is capable of having a MYE Entertainment or Web Ready (PCTV) television installed using an integrated
bracket. Follow the instructions below to install the TV and TV bracket, and the instructions located in the TV owner's manual to program the TV.
1) Remove the console from the unit as outlined in Section 9.1.
2) Remove the 6 screws holding the console front to the back and split the console (Figures A & B).
3) Remove the 2 screws holding on the blank headphone jack plastic to the console, and remove the plastic (Figures C & D).
4) Remove the wire in the console that goes from the UCB to the board on the console back (Figure E).
5) Install the new Y cable sent with the TV bracket kit to replace the wire removed in Step 4 (Figure F).

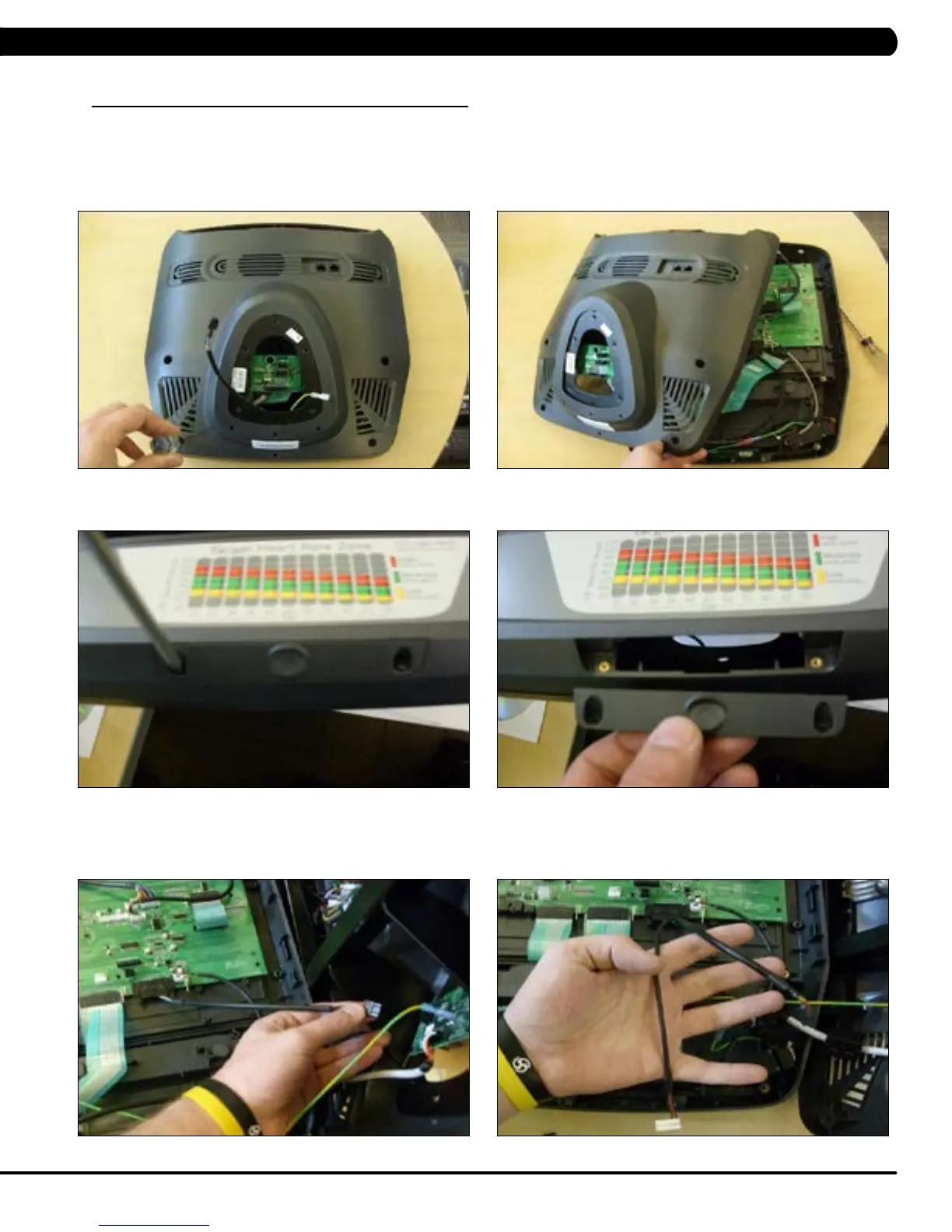

FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE
