Matrix G7-S13 User Manual

15

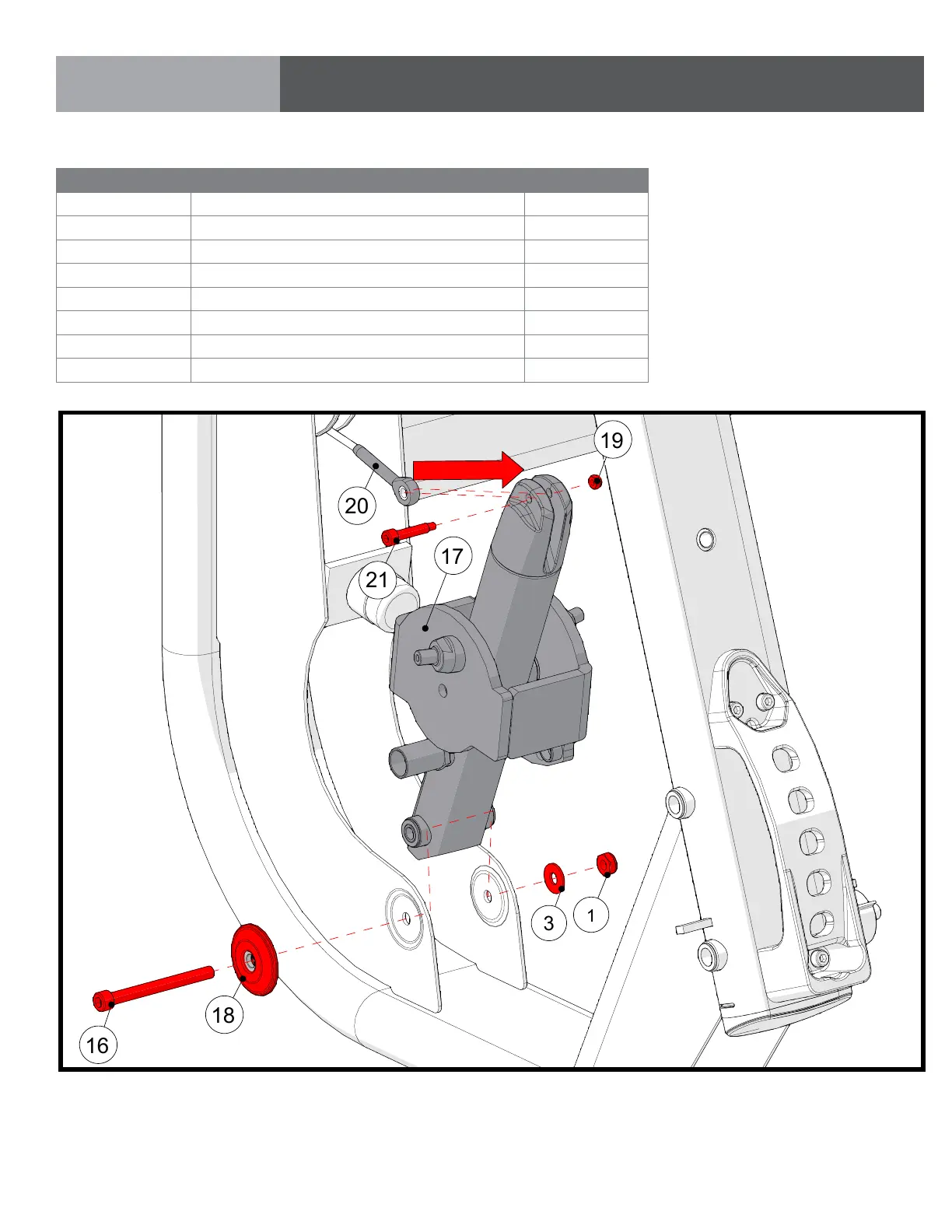

STEP 2 | SWINGARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
1 M10 Nylock Nut 1
3 M10 Flat Washer 1
16 M10 X 105L SHC 1
17 Swingarm 1
18 Medium Pivot Cap 1
19 M6 Nylock Nut 1
20 User Frame Cable (Pre-assembled to CAM) 1
21 M6 Shoulder Bolt 1
1
3
18
17
19
16
21
20
TightenM10to77N-m/57ft-lbs.
ASSEMBLY
PART 2: CAM/CABLE ASSEMBLY
AssemblecableintoswingarmandtightenM6to16N-m/142in-lbs.
