STEP 1 | CAM & CABLE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
1 M10 Nylock Nut 1
3 M10 Flat Washer 1
14 CAM 1
15 Large Pivot Cap 1
16 M10 X 105L SHC 1
ASSEMBLY
PART 2: CAM/CABLE ASSEMBLY

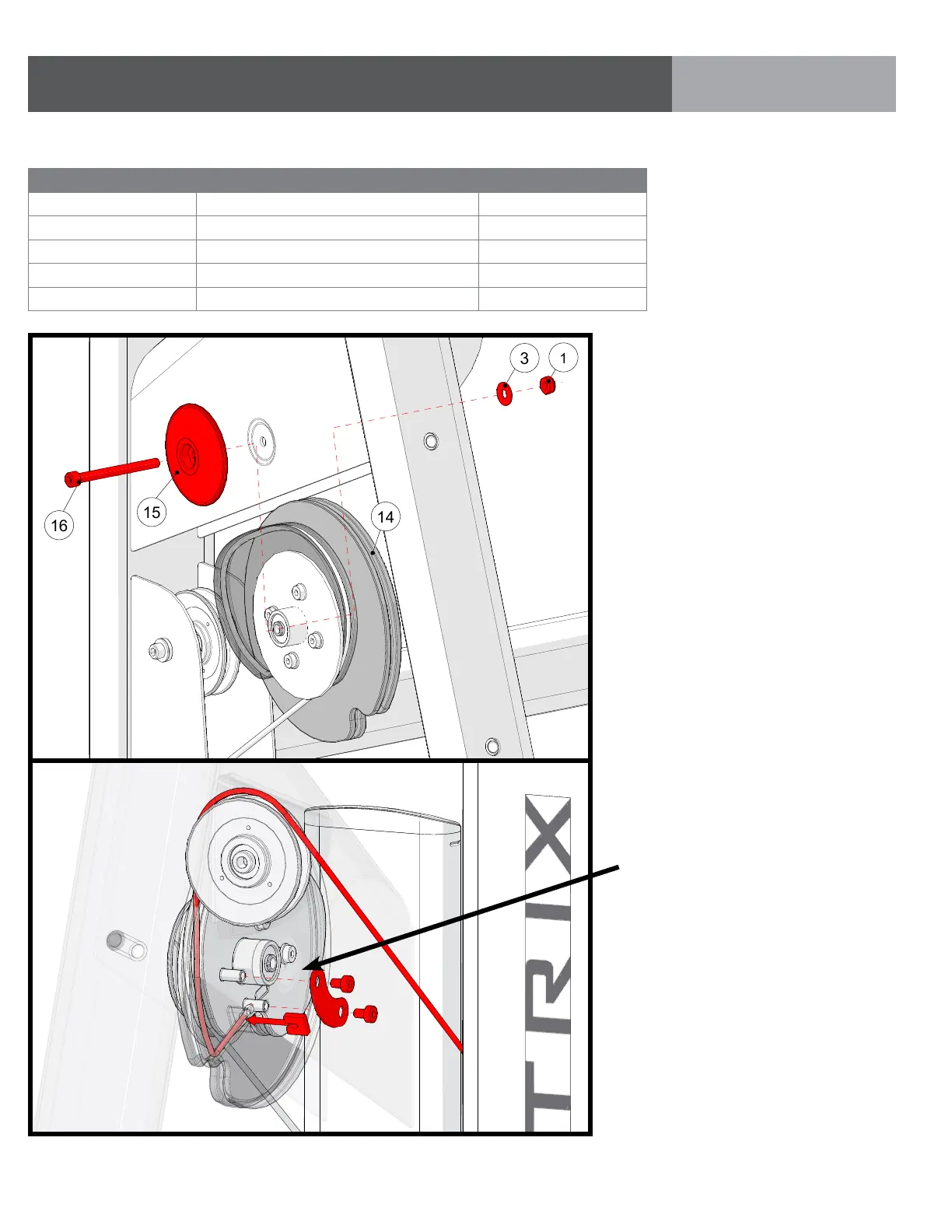

Assemble CAM as shown,
locating the large CAM
towards the weight stack.
Tightento77N-m/57ft-lbs.
1
3
14
15
16
Separate CAM to assemble
weight stack cable as shown.
Capture cable with forked clip
and orient as shown. Tighten
to16N-m/142in-lbs.
