36
9.3 HEART RATE GRIPS REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE

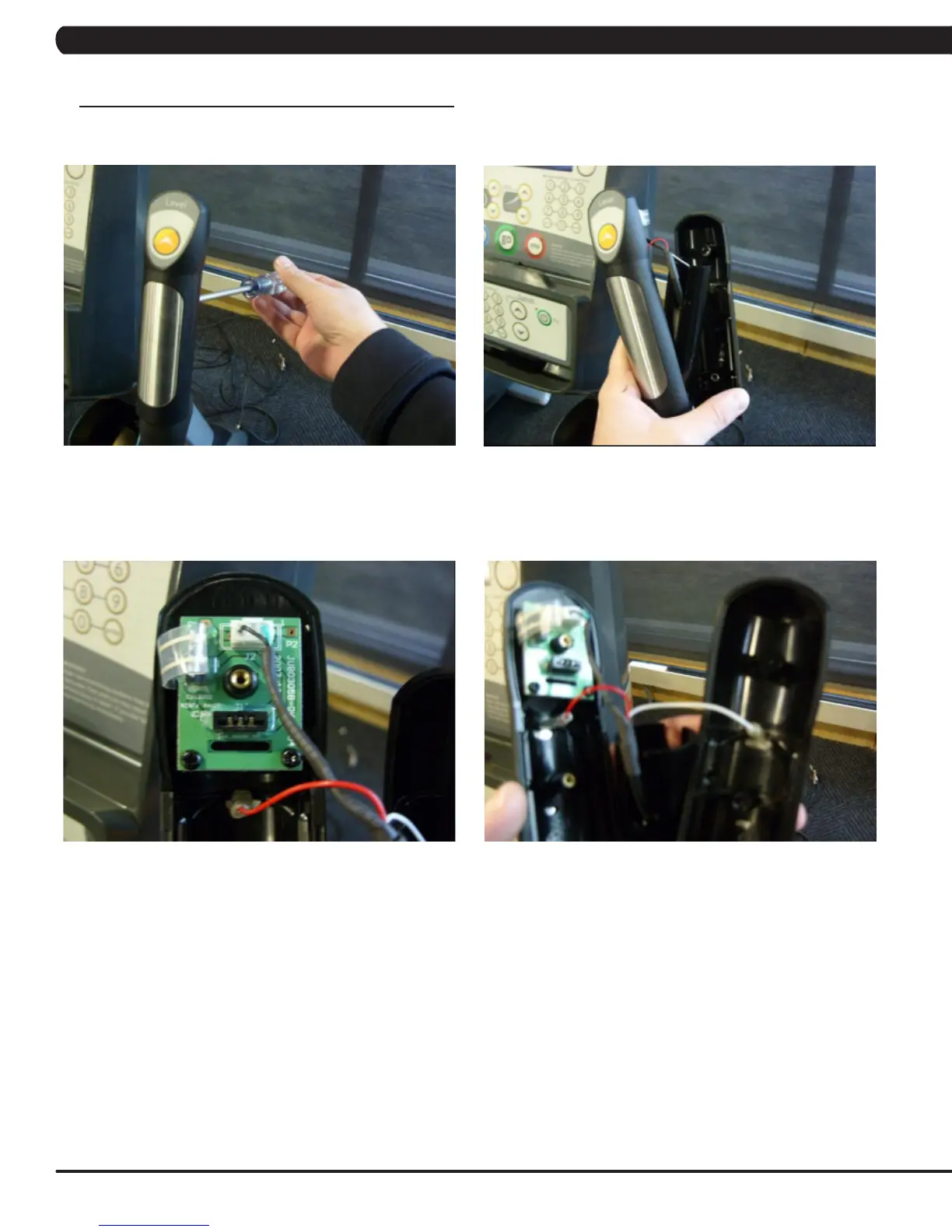

1) Remove the 3 screws holding the 2 halves of the HR grip together (Figure A).
2) Split the HR grip in half (Figure B).
3) Disconnect the level key and HR plate wiring (Figure C) and remove the HR grip.
4) Reverse Steps 1-3 to install a new HR grip. NOTE: When plugging in the HR plate wiring, the red wire should go to the top plate, the white
wire to the bottom HR plate (Figure D).
5) Test the Bike for function as outlined in Section 9.22.
FIGURE A FIGURE B
FIGURE C
FIGURE D
