Matrix H3XE-01

56
9.20 REAR STABILIZER REPLACEMENT

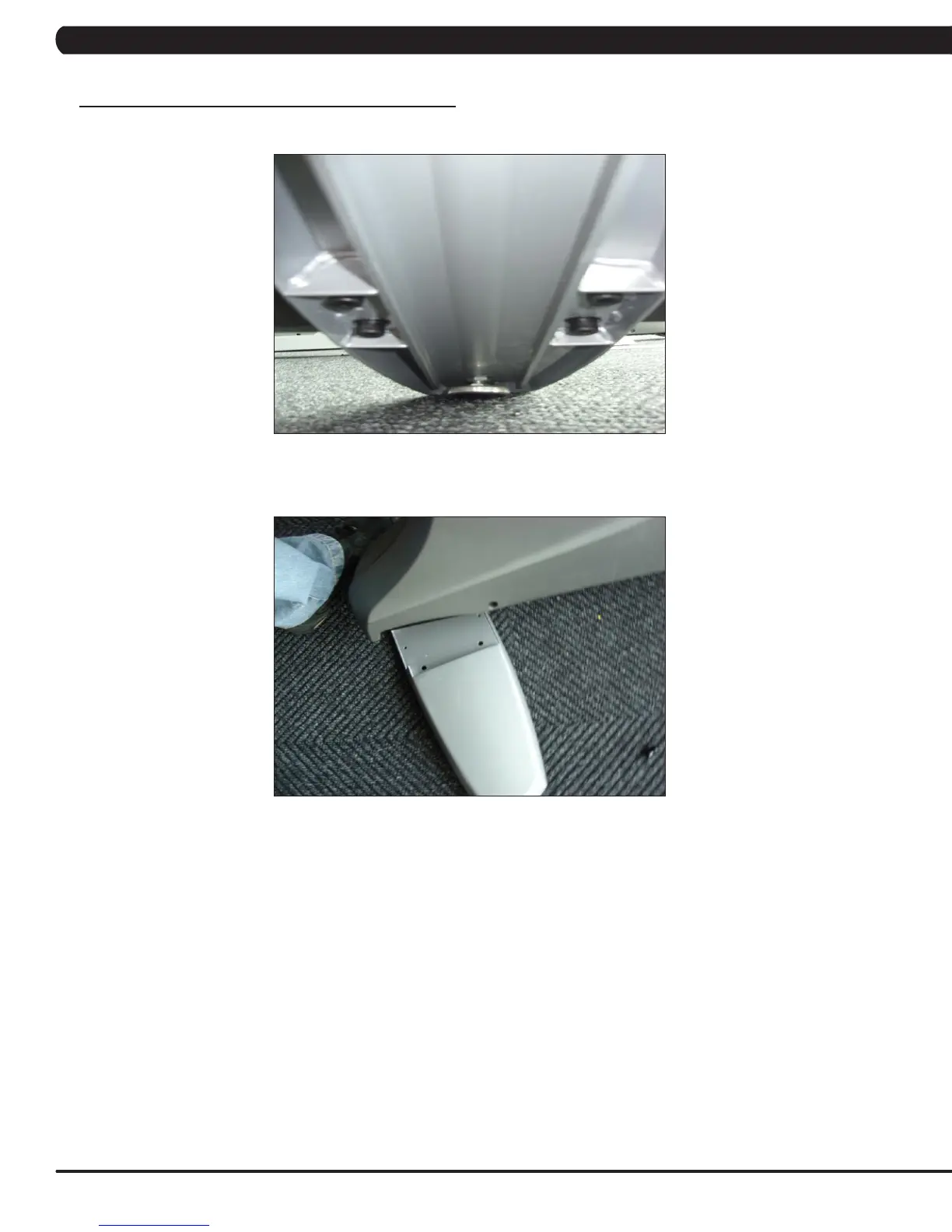

1) Lean the bike to one side and remove the 4 screws holding the rear stabilizer to the frame (Figure A).
2) Remove the rear stabilizer (Figure B).
3) Reverse Steps 1-2 to install a rear stabilizer.
FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
