MG-MR47-04 FRAME ASSEMBLY
NOTE: If your rack is not equipped with spotter stands, proceed to step 2.

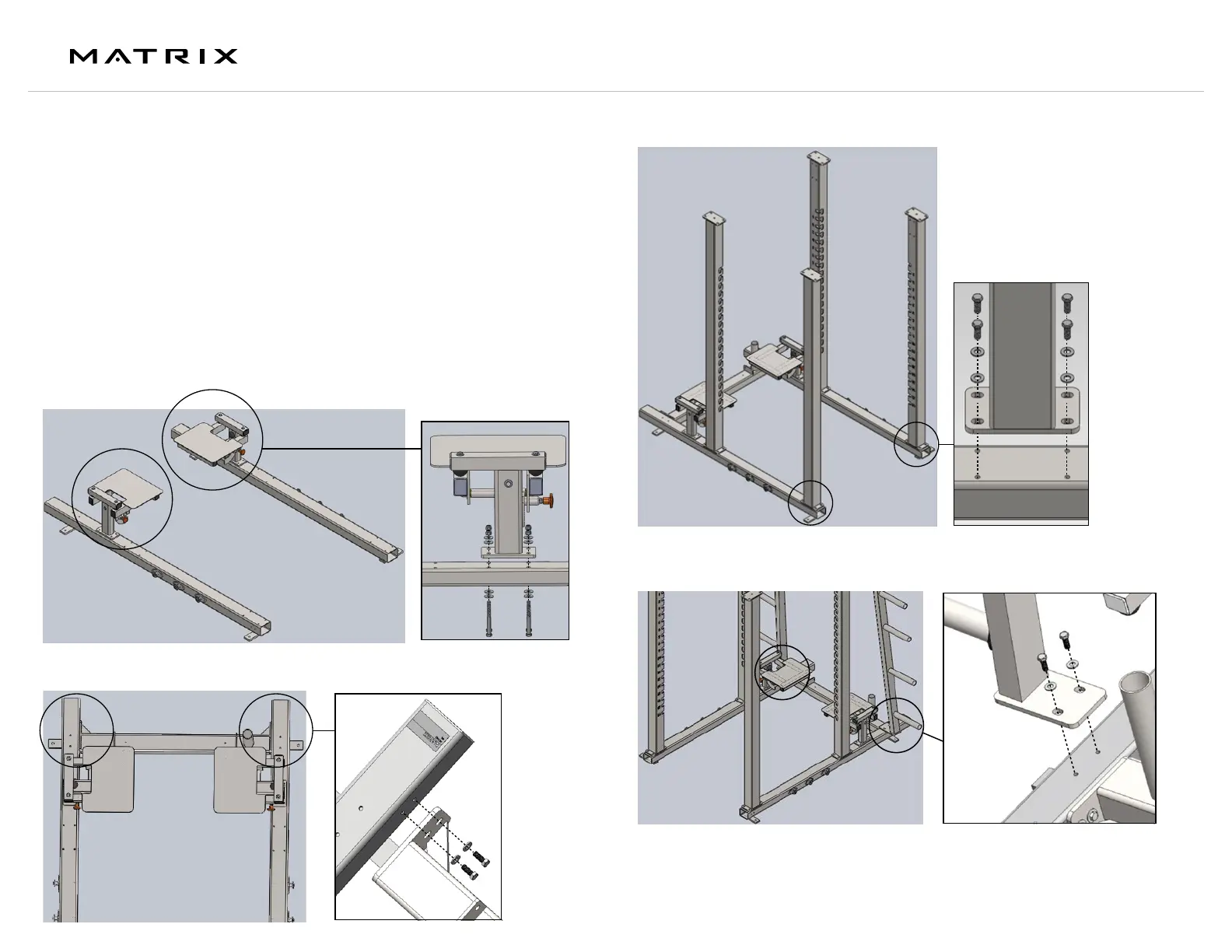

1. Place bases and spotter stands where the machine is to be used. Using (8)
3/8-16 x 3 1/4” bolts, (16) 3/8” washers and (8) 3/8 lock nuts, attach the spotter
stands to the bases and torque all bolts to 30 ft-lbs.
2. Using (4) 3/8-16 x 1” bolts and (4) 3/8” washers, attach base support to bases.
Do not tighten bolts.
3. Attach each upright to the base using (16) 3/8-16 x 1” bolts and (16) 3/8”
washers. Do not tighten bolts.
4. Weight storage Bottom: Using (4) 3/8-16 x 1” bolts and (4) 3/8” washers,
attach the bottom of the weight storage to the bases. Do not tighten bolts.
STEP 1
STEP 2
STEP 3
STEP 4
