MG-MR47-04 FRAME ASSEMBLY

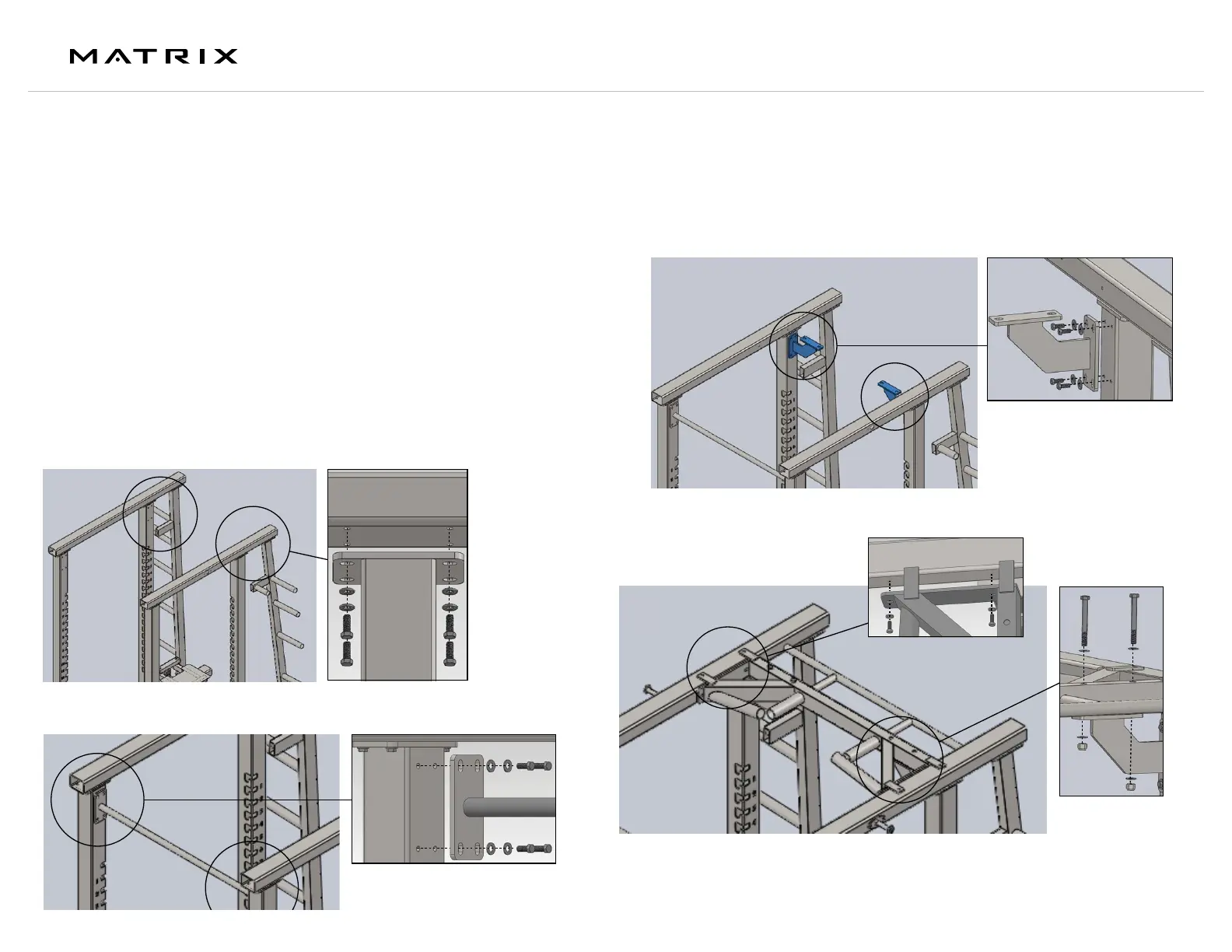

5. Upright support and Weight Storage Top: Using (24) 3/8-16 x 1” bolts and (24)
3/8” washers, attach the upright support to the top of the uprights and top of the
weight storage. Do not tighten bolts.
6. Upright support, front: Using (8) 3/8-16 x 1” bolts and (8) 3/8” washers, attach the
front upright support between the front (2) uprights. Do not tighten bolts.
7. Upright/Chin bar support: Using (8) 3/8-16 x 1” bolts and (8) 3/8” washers, attach
the upright/chin bar supports between the rear (2) uprights. Do not tighten bolts.
8. Chin bar: Using (4) 3/8-16 x 1” bolts, (4) 3/8” washers, (4) 1/2-13 x 4 1/2” bolts, (8)
7/16” washers and (4) 1/2-13 nuts, attach the chin bar between the top upright
supports. Do not tighten bolts.
9. Tighten bolts: Starting with the bottom of the uprights and working up to the top
of the machine, tighten all bolts to 30 ft-lbs.
Assembly Complete!
STEP 5
STEP 6
STEP 7
STEP 8
