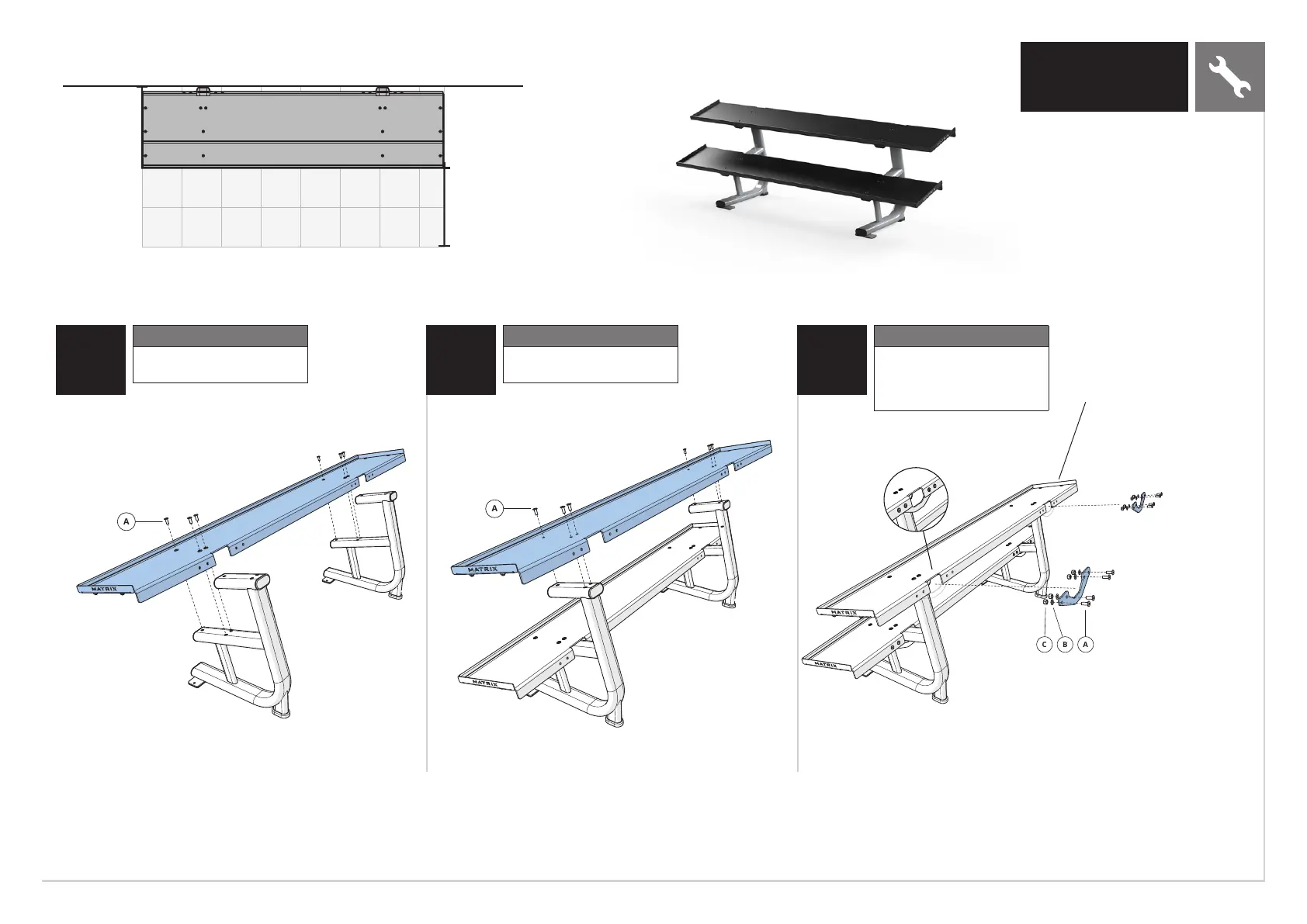

Matrix MAGNUM SERIES - MG-A528 Assembly Steps

7
A
A
A
B
C
STORAGE AREA
FREE AREA
0.6 m (2 ft)
wide path
2.32 m
(91.4ʺ)
0.63 m
(24.6ʺ)
MG-A528
1 2 3
Repeat for
each tier
Step 1 Hardware
Description Qty
A Bolt (M10x25L) 6
Step 2 Hardware
Description Qty
A Bolt (M10x25L) 6
Step 3 Hardware
Description Qty
A
B
C
Bolt (M10x25L)
Flat Washer (M10)
Nut (M10)
16
16
16
ENGLISH
