Matrix simado gfx11 User Manual

Matrix SIMADO GFX11 Quick Start 3
Ports and Connectors
LEDs

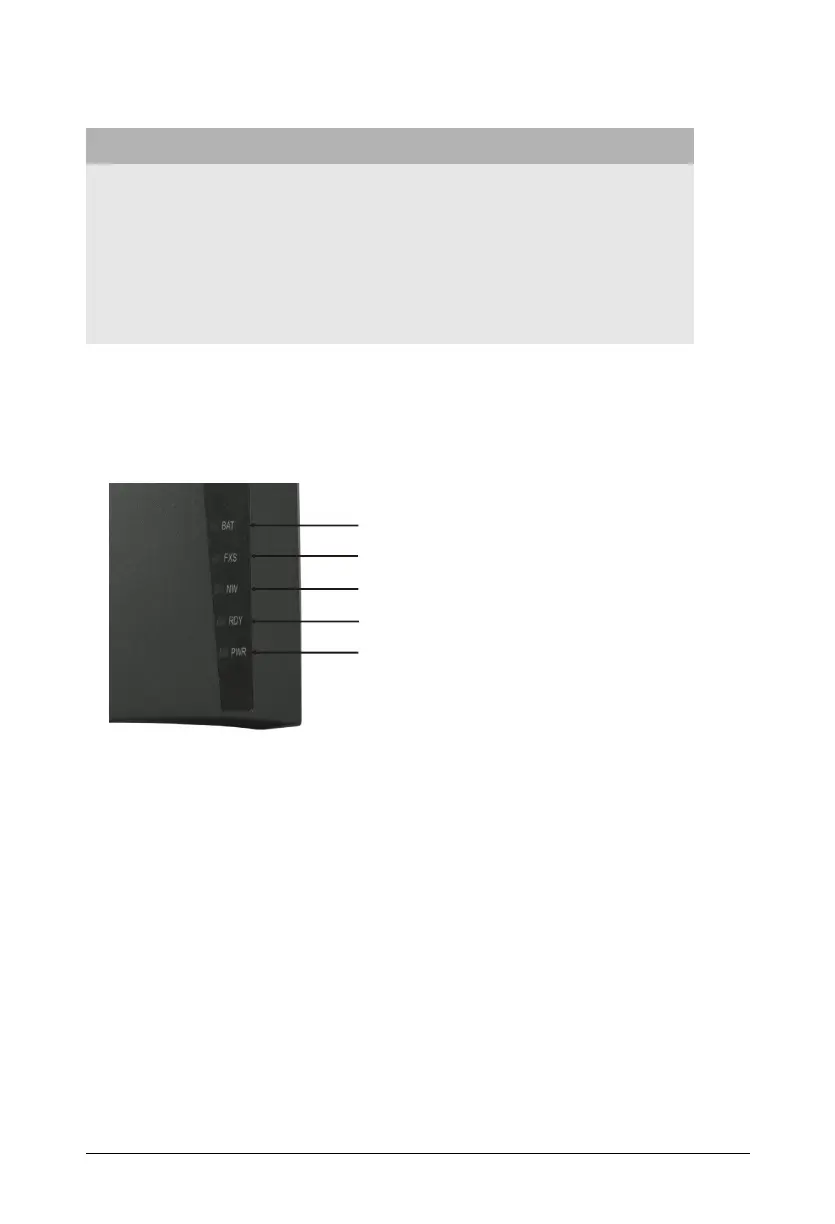

SIMADO GFX11E has 5 LEDs, labeled as BAT, FXS, NW, RDY and PWR as shown in the figure
below.
Port Connector Description
FXS RJ11 To connect a standard Telephon e I nstrument or a PBX.
ON-OFF Button --- To switch on or switch off the SIMADO GFX11E.
12VDC-1.25A (Max) DC Jack To connect a Power Adapter.
SIM Card Slot To insert a SIM Card for mobile connectivity.
Antenna SMA (Female) To connect the Antenna for the Mobile Ports.
PWR (Power)
RDY (SIM)
FXS (FXS Port)
NW (Network)
BAT (Battery)

Matrix simado gfx11 Specifications

General

Brand	Matrix
Model	simado gfx11
Category	Gateway
Language	English
