CHAPTER 5: T5x, T7x, T7xe T

readmill specifications, parts, and assembly Guides

5.4 T5x, T7x, T7xe MODEL ASSEMBLY STEPS

OPTIONAL LEVELING ASSEMBLY TECHNIQUES:

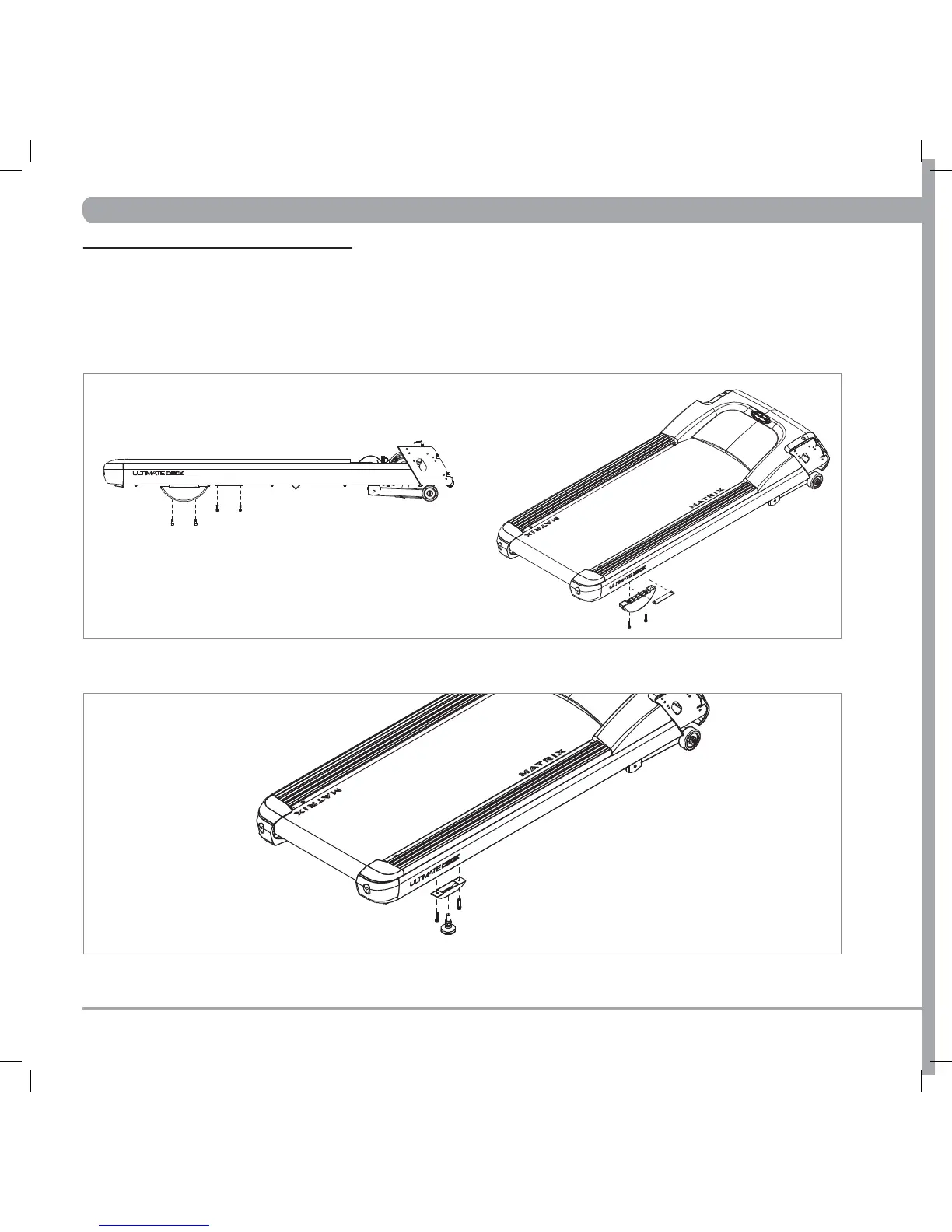

Use of shim or adding leveling foot.

Remove the leveling shim provided on the underside of the treadmill. The shim can be found mounted on the underside of the right hand side rail. Remove

the rear foot on the side of the treadmill that is resting low. Install the shim as shown above and return the rear foot.

When installing the optional rear leveling foot accessory, remove the existing rear foot. Replace with new leveling foot and fasten to the frame using the

existing fasteners that held in the half-moon foot.

NOTE: It is extremely important that the levelers are correctly adjusted for proper operation. An unbalanced unit may cause belt misalignment or other issues.

Use of all level is recommended.
