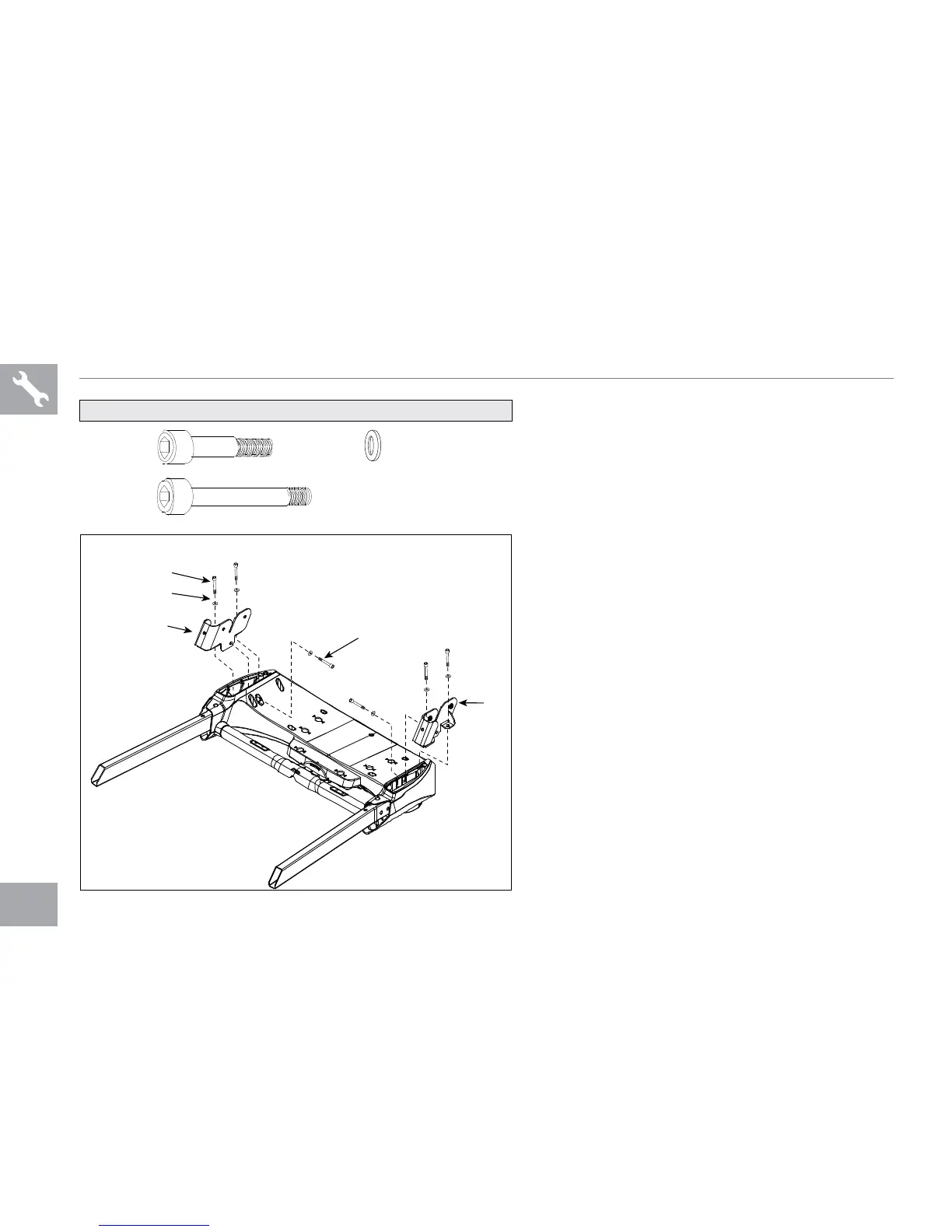

ASSEMBLY STEP 3
A Open WHITE HARDWARE BAG.
B Assemble the LEFT AND RIGHT
BRACKETS (20 AND 21) to the CONSOLE
BASE using SOCKET HEAD CAP SCREWS
(12), FLAT WASHERS (14) and SOCKET
HEAD CAP SCREWS (11).
Assembly tip: It is much easier to accomplish
this task if the console base is left inside it’s
shipping container.
11
SOCKET HEAD CAP SCREW
Qty: 2
12
SOCKET HEAD CAP SCREW
Qty: 4
14
FLAT WASHER
Qty: 6
WHITE HARDWARE BAG CONTENTS :
14
21
12
20
To Next Page
