Matrix T7xi User Manual

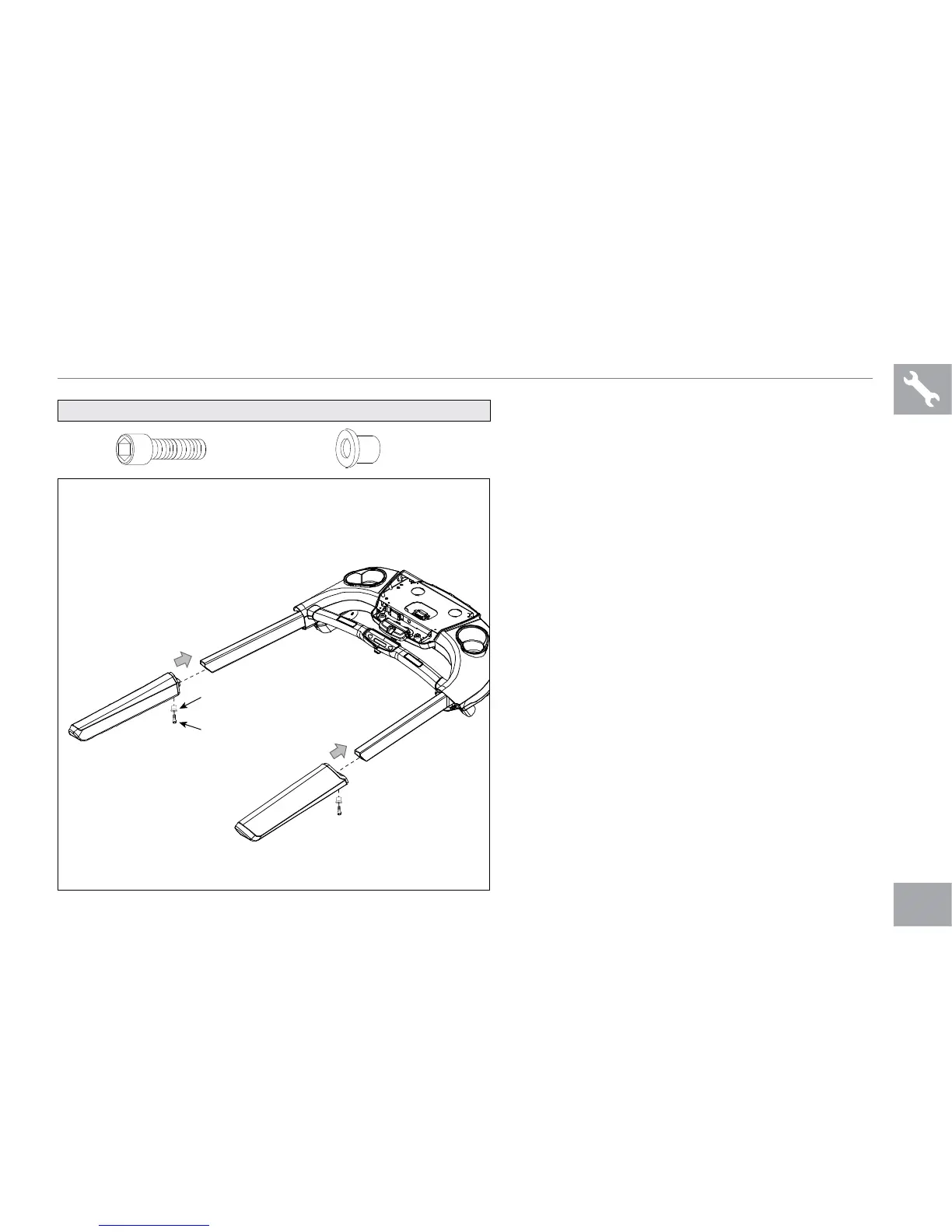

ASSEMBLY STEP 4
A Open BLUE HARDWARE BAG.
B Slide the URETHANE ARMS over the steel
tubes on the CONSOLE BASE.
C Fasten the URETHANE ARMS to the steel
tubes using SOCKET HEAD CAP SCREWS
(17) and SPACERS (19).
17
SOCKET HEAD CAP SCREW
Qty: 2
19
SPACER
Qty: 2
BLUE HARDWARE BAG CONTENTS :
14
21
12
20
19
17
11
15
