Matrix T7xi User Manual

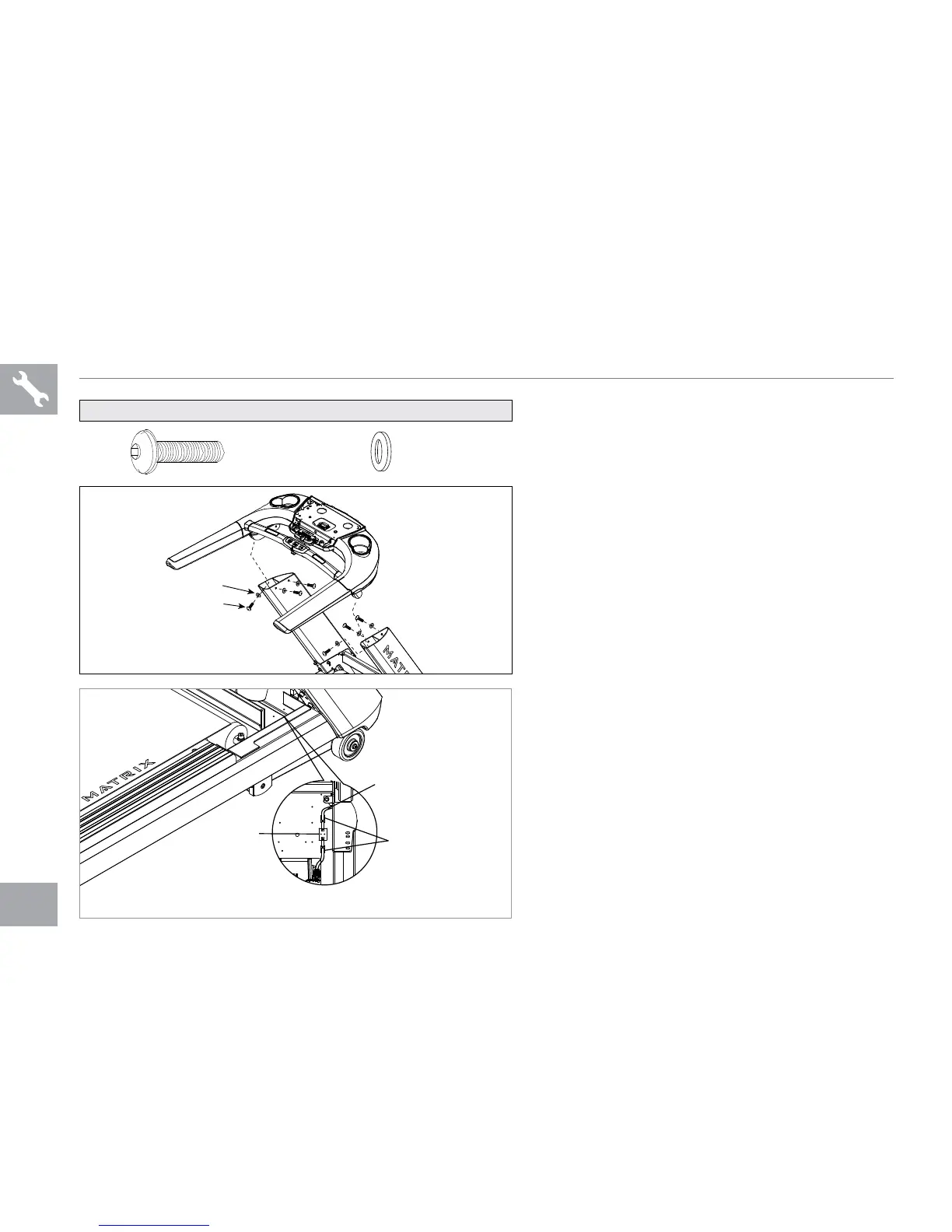

ASSEMBLY STEP 5
A Open RED HARDWARE BAG.
B Assemble the CONSOLE BASE to the
CONSOLE MASTS using BUTTON
SOCKET HEAD CAP SCREWS (15) and
FLAT WASHERS (14).
C Be sure to route the CONSOLE CABLES
down the CONSOLE MAST through the
larger opening in the mast which is closest to
the running belt.
D Make all appropriate wire connections within
the motor compartment.
15
BUTTON SOCKET HEAD CAP SCREW
Qty: 6
14
FLAT WASHER
Qty: 6
RED HARDWARE BAG CONTENTS :
15
14
13
23
16
23
Console wire
Ferrite cord
Console wire assembly through the ferrite and fasteners
fasteners
15
14
13
23
16
23
Console wire
Ferrite cord
Console wire assembly through the ferrite and fasteners
fasteners
16
