Matrix T7xi User Manual

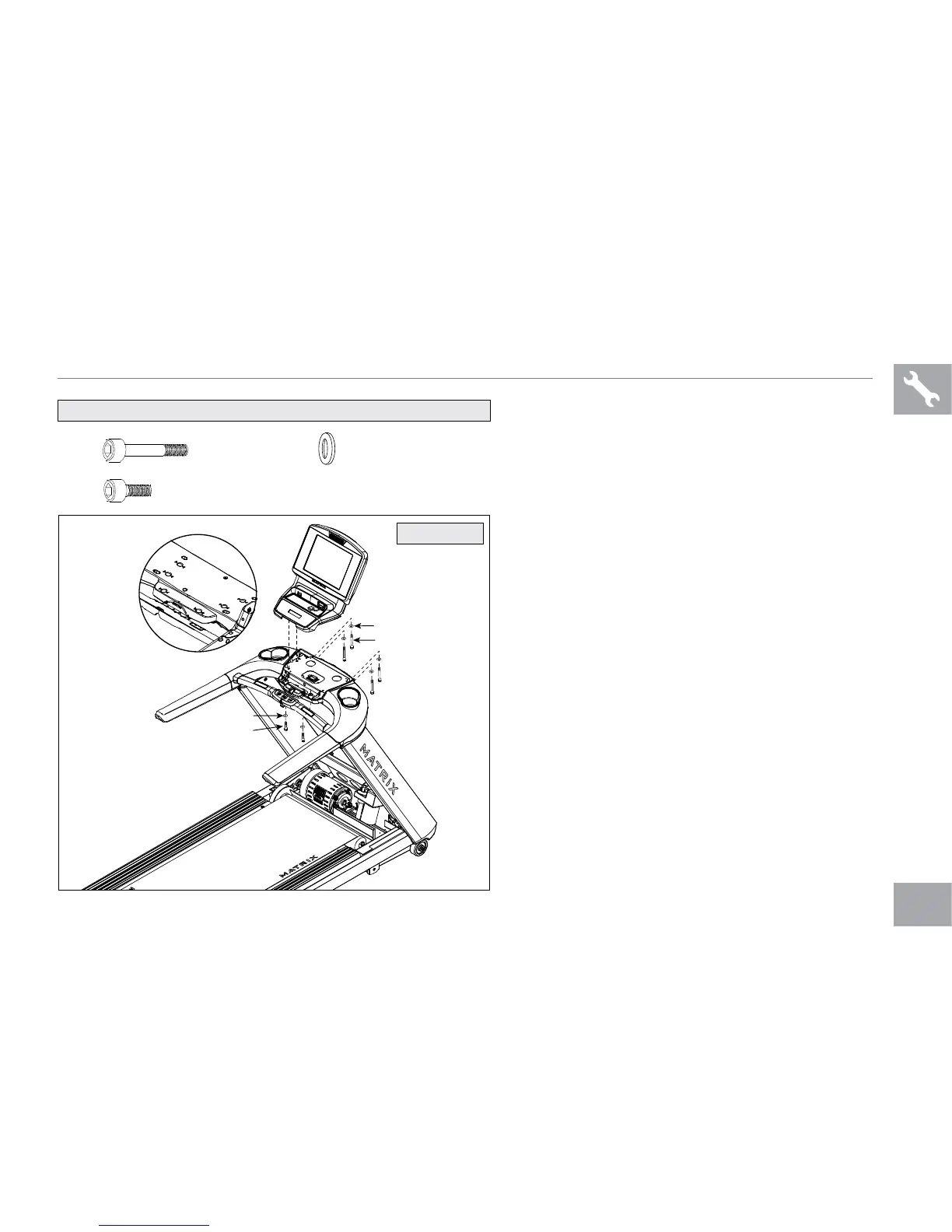

ASSEMBLY STEP 6
A Open YELLOW HARDWARE BAG.
B Make appropriate wire connections to the
FACEPLATE and then assemble to the
CONSOLE BASE using SOCKET HEAD
CAP SCREWS (13), RIBBED LOCK
WASHERS (23), SOCKET HEAD CAP
SCREWS (16) and RIBBED LOCK
WASHERS (23).
C The SOCKET HEAD CAP SCREWS (16)
are shorter and must be assembled into the
holes closest to the running surface.
D All holes applicable to this assembly step
can be noted by the embossed arrow next to
the hole.
13
SOCKET HEAD CAP SCREW
Qty: 4
16
SOCKET HEAD CAP SCREW
Qty: 2
23
RIBBED LOCK WASHER
Qty: 6
YELLOW HARDWARE BAG CONTENTS :
15
14
13
23
16
23
Console wire
Ferrite cord
Console wire assembly through the ferrite and fasteners
fasteners
T7xe Shown
17
