9.10 PEDAL REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Use a 15 mm wrench commercial pedal wrench (available from Matrix - part # ZMS4001254) to remove the pedal from the crank (Figure A).
NOTE: For the right side pedal, the threads are normal. For the left side pedal, the threads are reversed (the pedal turns off counterclockwise).
2) Remove the pedal (Figure B).
3) Reverse Steps 1-2 to install a new pedal. NOTE: Be sure to tighten the pedal onto the crank using a commercial pedal wrench. The pedal
should be torqued as much as possible using the pedal wrench.

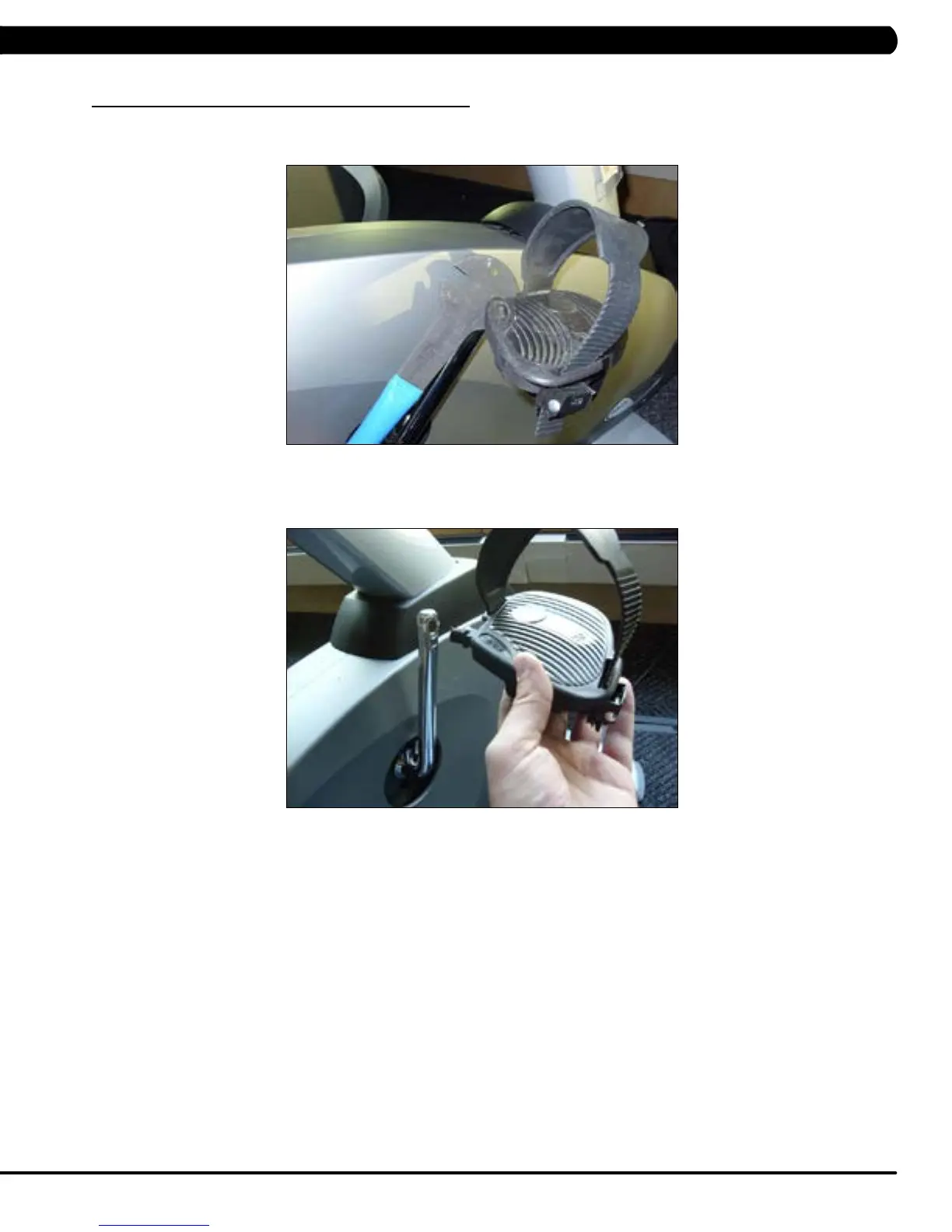

FIGURE A
FIGURE B
